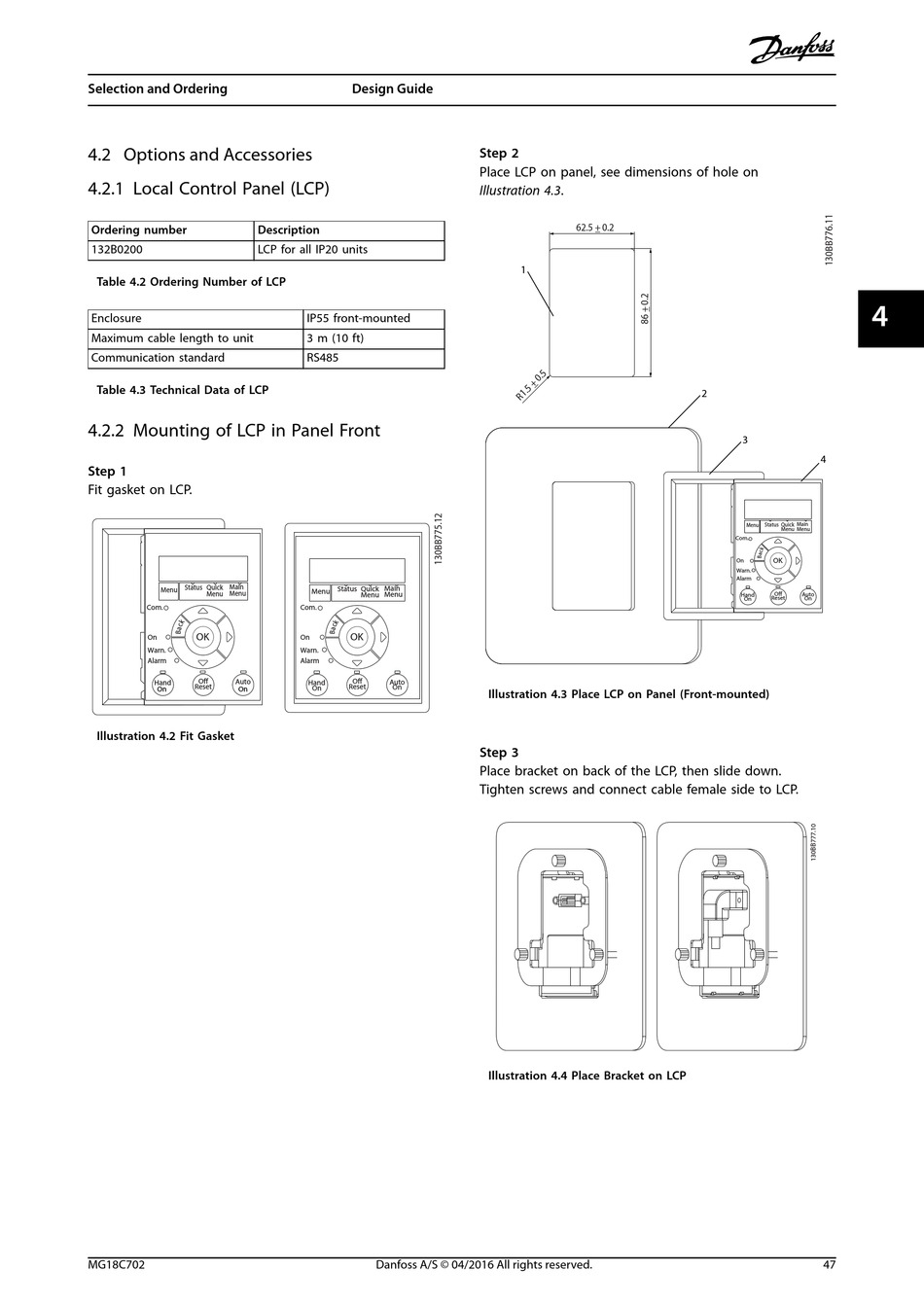

Options And Accessories; Local Control Panel (Lcp); Mounting Of Lcp In Panel Front - Danfoss VLT HVAC Basic Drive FC 101 Design Manual

Selection and Ordering

4.2 Options and Accessories

4.2.1 Local Control Panel (LCP)

Ordering number Description
132B0200 LCP for all IP20 units
Table 4.2 Ordering Number of LCP
Enclosure
Maximum cable length to unit
Communication standard
Table 4.3 Technical Data of LCP

4.2.2 Mounting of LCP in Panel Front

Step 1
Fit gasket on LCP.
Status Quick Main
Menu
Menu
Menu
Com.
OK
On
Warn.
Alarm
O Auto
Hand
Reset
On On
Illustration 4.2 Fit Gasket
MG18C702
Design Guide
IP55 front-mounted
3 m (10 ft)
RS485
Main
Status Quick
Menu
Menu Menu
Com.
OK
On
Warn.
Alarm
O Auto
Hand
Reset
On
On
Danfoss A/S © 04/2016 All rights reserved.
Step 2
Place LCP on panel, see dimensions of hole on
Illustration 4.3.
62.5 + _ 0.2
1
Illustration 4.3 Place LCP on Panel (Front-mounted)
Step 3
Place bracket on back of the LCP, then slide down.
Tighten screws and connect cable female side to LCP.
Illustration 4.4 Place Bracket on LCP
4
2
3
4
Status Main
Quick
Menu
Menu Menu
Com.
OK
On
Warn.
Alarm
O Auto
Hand
Reset On
On
47
4
