Programming
At power-up, select the
preferred language.
Select language
[1] English
Setup 1
Status Quick Main
Menu
Menu
Menu
Com.
OK
On
Warn.
Alarm
O Auto
Hand
Reset
On
On
Power-up Screen
OK
The next screen is
the Wizard screen.
Press OK to start Wizard
Press Back to skip it
Setup 1
Status Quick Main
Menu
Menu
Menu
Com.
OK
On
Warn.
Alarm
O Auto
Hand
Reset
On
On
Wizard Screen
if
0.0 Hz
0.0 kW
Setup 1
Status Quick Main
Menu
Menu Menu
Com.
OK
On
Warn.
Alarm
O
Auto
Hand
Reset On
On
Status Screen
The Wizard can always be
reentered via the Quick Menu
Wizard completed
Press OK to accept
0.0 Hz
0.0 kW

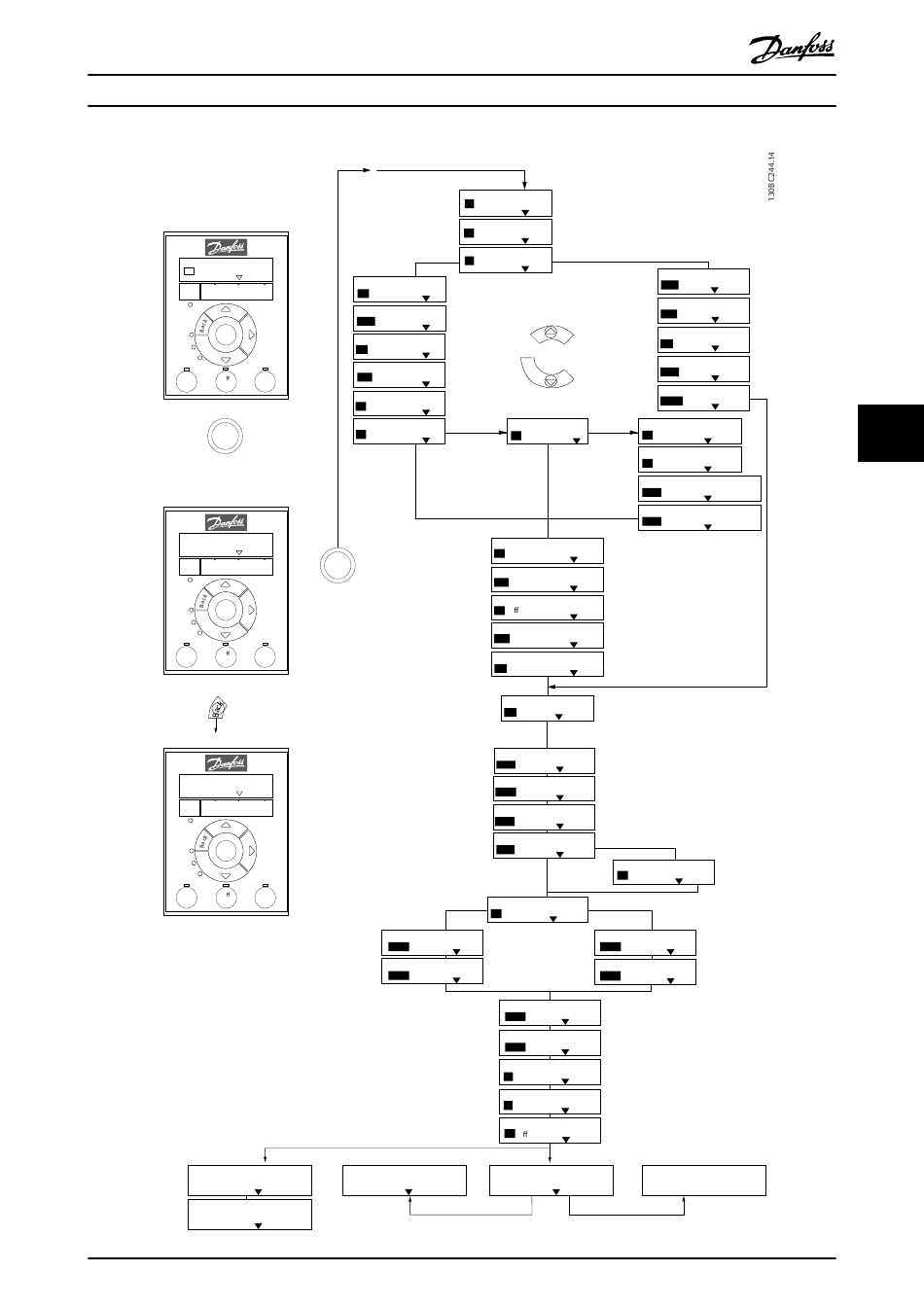

Illustration 6.4 Set-up Wizard for Open-loop Applications
MG18C702
Design Guide
... the Wizard starts
Select Regional Settings
[0]
Power kW/50 Hz
Grid Type
[0] 200-240V/50Hz/Delta
Motor Type
PM motor
[0] Asynchronous
Motor current
3.8
A
Motor nominal speed
3000
RPM
Motor Cont. Rated Torque
5.4
Nm
Stator resistance
0.65
Ohms
Motor poles
8
Motor type = IPM
Back EMF at 1000 rpm
57
V
Motor type = SPM
IPM Type = non-sat.
if OK
Motor type = PM motor
Current
Set T53 Low Current
04.66 A
Set T53 High Current
13.30 A
(Do not AMA)
Auto Motor Adapt OK
Press OK
AMA OK
Danfoss A/S © 04/2016 All rights reserved.
Asynchronous motor
Motor Power
1.10
Motor Voltage
400
Motor Frequency
50
Motor Current
4.66
Motor nominal speed
1420
IPM type = Sat.
q-axis Inductance (Lq)
d-axis Inductance Sat. (LdSat)
5 5
mH mH
q-axis Inductance Sat. (LqSat)
5
mH
Current at Min Inductance for d-axis
100
%
Current at Min Inductance for q-axis
100 %
PM Start Mode
[0] Rotor Detection
Position Detection Gain
100 %
Locked Rotor Detection
[0] O
Locked Rotor Detection Time[s]
0.10 s
Max Output Frequency
65
Hz
Motor Cable Length
50
m
Set Motor Speed low Limit
0000 Hz
Set Motor Speed high Limit
0050 Hz
Set Ramp 1 ramp-up time
0010
s
Set Ramp 1 ramp-down Time
Motor type = Asynchronous
0010 s
Active Flying start?
[0]
Disable
Voltage
Select T53 Mode
[0] Current
Set T53 low Voltage
0050 V
Set T53 high Voltage
0220
V
Set Min Reference
0000 Hz
Set Max Reference
0050
Hz
Select Function of Relay 1
[0] No function
[0]
Select Function of Relay 2
[0]
No function
Automatic Motor Adaption
[0]
O
Do AMA
AMA running AMA Failed
-----
AMA Failed
kW
V
Hz
A
RPM
65
6 6
