Installation

5.1.4 Control Terminals

®
Refer to VLT
make sure that the terminal cover is removed correctly.

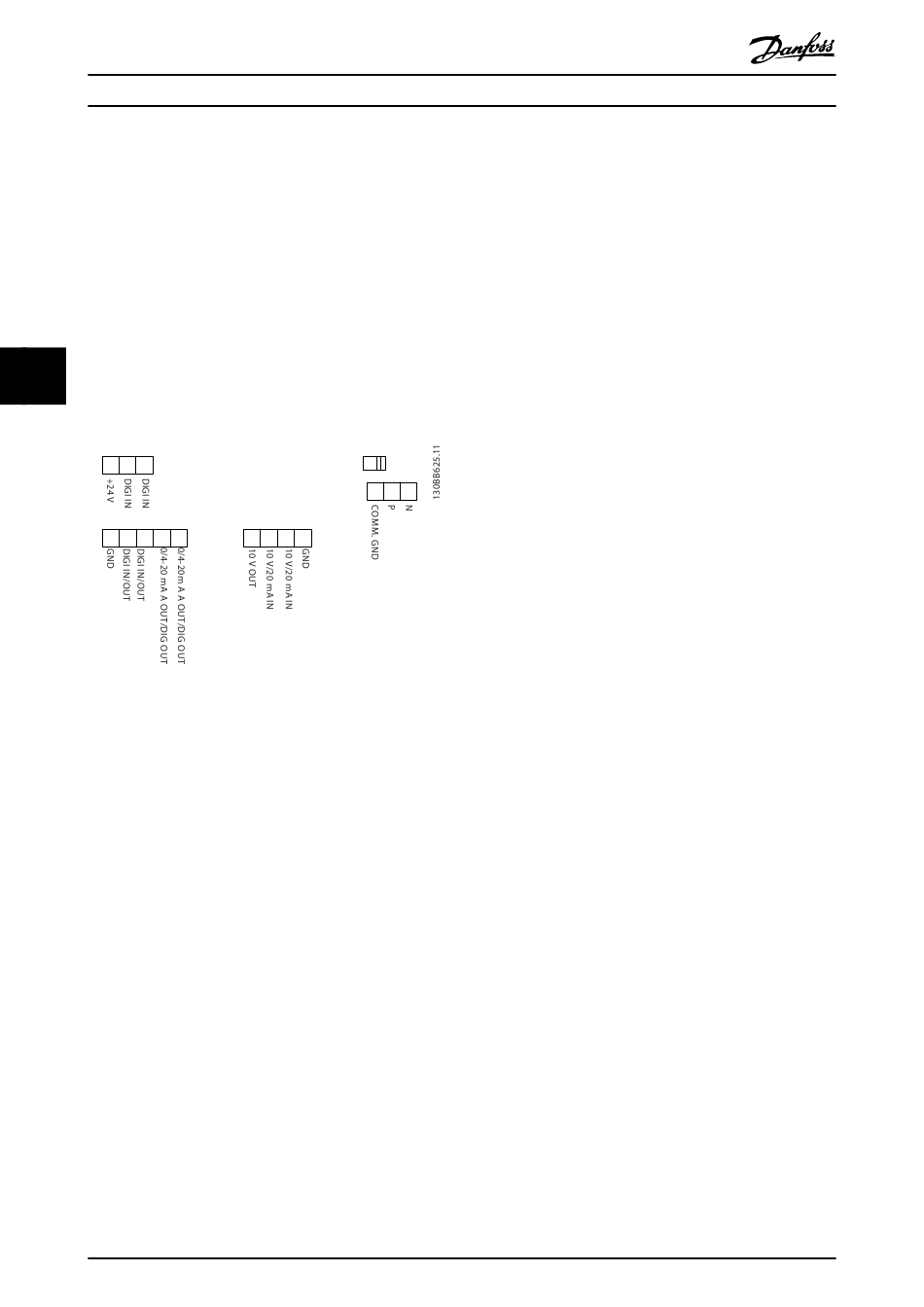

Illustration 5.17 shows all the frequency converter control
terminals. Applying start (terminal 18), connection between
terminals 12-27, and an analog reference (terminal 53 or
54, and 55) make the frequency converter run.
The digital input mode of terminal 18, 19, and 27 is set in
5 5
parameter 5-00 Digital Input Mode (PNP is default value).
Digital input 29 mode is set in parameter 5-03 Digital Input
29 Mode (PNP is default value).
12 20 55
20 27 29 42 45
Illustration 5.17 Control Terminals
62
HVAC Basic Drive FC 101 Quick Guide and
OFF
50 53 54 55
Danfoss A/S © 04/2016 All rights reserved.
®
VLT HVAC Basic Drive FC 101
BUS TER.
ON
61 68 69
MG18C702
