3 VLT HVAC Basic Drive Selection

3.1 Options and Accessories

3.1.1 Local Control Panel (LCP)

Ordering no. Description
132B0200 LCP for all IP20 units
For LCP instructions, please see Design guide 6.2 or Quick
guide 1.4.1.
Technical data
Enclosure
Max. cable length to unit
Communication std.

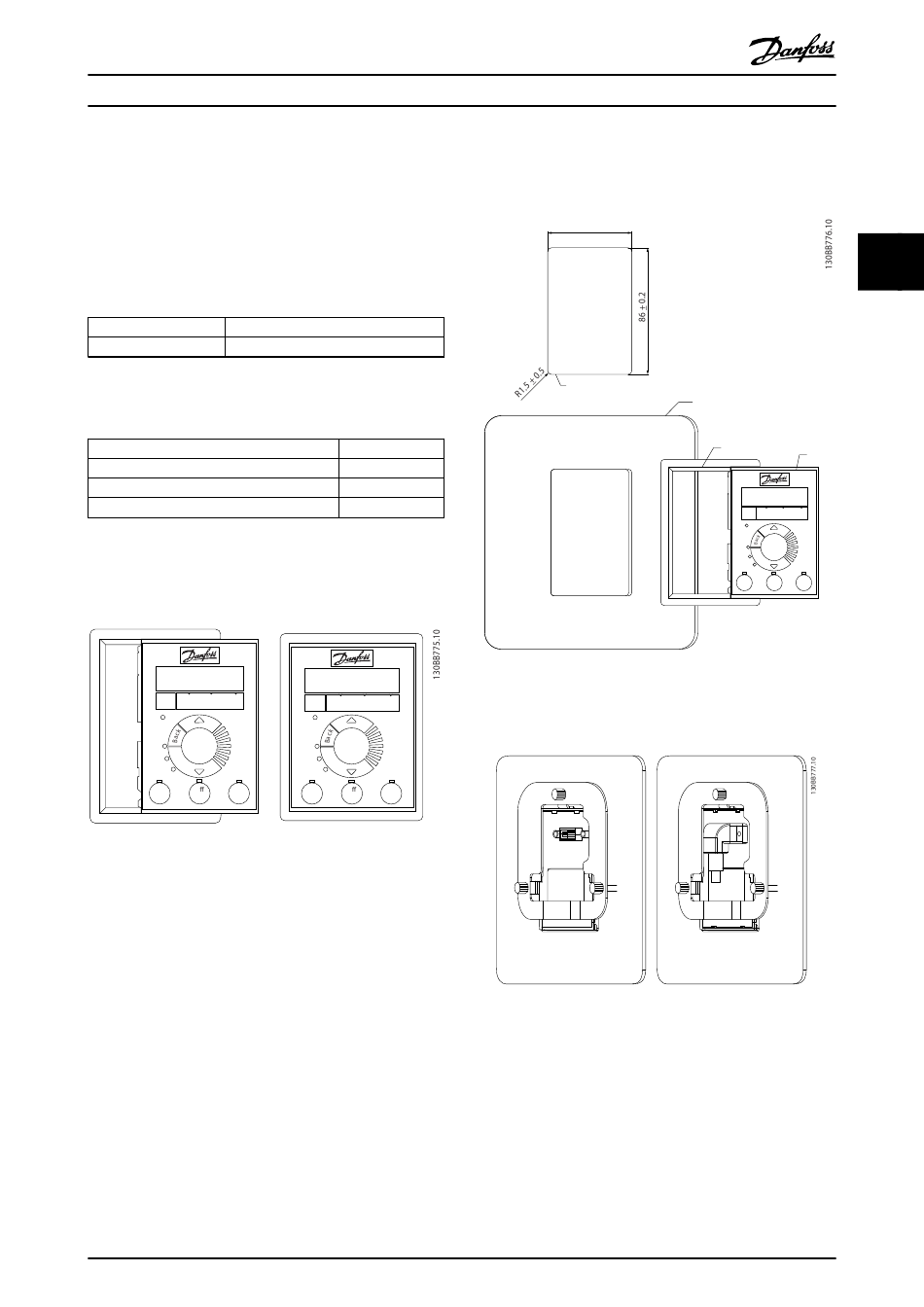

3.1.2 Mounting of LCP in Panel Front

Step 1
Fit gasket on LCP.
Main
Status Quick
Menu
Menu Menu
Com
OK
On
Warn
Alarm
O
Auto
Hand
Reset
On
On
Step 2
Place LCP on panel, see dimensions of hole on illustration.
VLT HVAC Basic Drive Design Guide
IP55 front
10ft (3m)
RS-485
Status Quick Main
Menu
Menu Menu
Com
OK
On
Warn
Alarm
O
Auto
Hand
Reset On
On
®
MG.18.C2.02 - VLT is a registered Danfoss trademark
62.5 + _ 0.2
Panel cut out
Panel Thickness: 1~3mm
Step 3
Place bracket on back of the LCP, then slide down.
Tighten screws and connect cable female side to LCP.
Step 4
Connect cable to frequency converter.
Panel
Gasket
LCP
Status Quick Main
Menu
Menu Menu
Com
OK
On
Warn
Alarm
Off Auto
Hand
Reset
On On
37
