Options and Accessories

Danfoss offers a wide range of options and accessories for VLT AutomationDrive FC 300 Series.

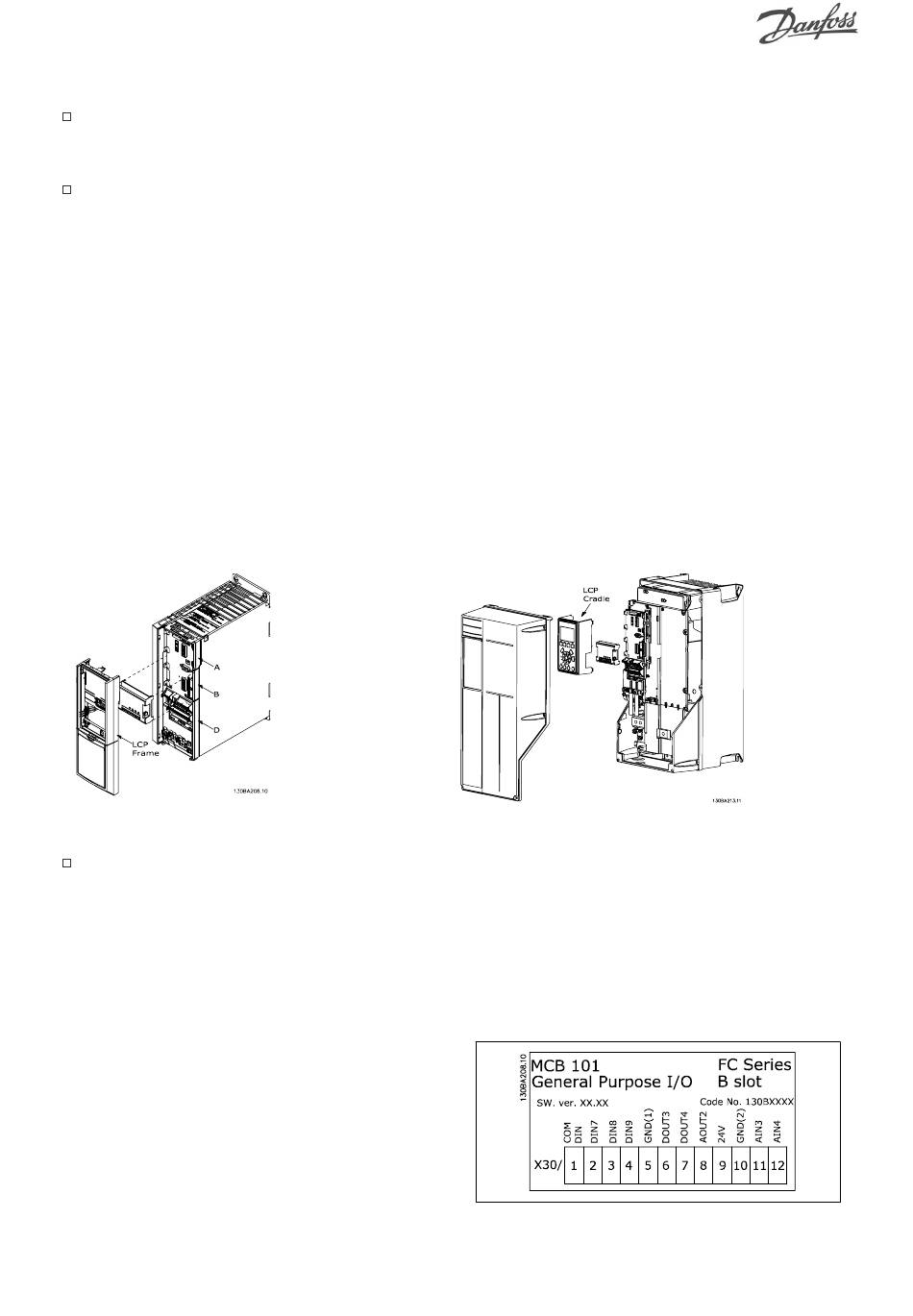

Mounting of Option Modules in Slot B

The power to the frequency converter must be disconnected.
It is strongly recommended to make sure the parameter data is saved (i.e. by MCT10 software ) before
option modules are inserted/removed from the drive.
• Remove the LCP (Local Control Panel), the terminal cover, and the LCP frame from the frequency
converter.
• Fit the MCB10x option card into slot B.
• Connect the control cables and relieve the cable by the enclosed cable strips.
* Remove the knock out in the extended LCP frame, so that the option will fit under the extended
LCP frame.
• Fit the extended LCP frame and terminal cover.
• Fit the LCP or blind cover in the extended LCP frame.
• Connect power to the frequency converter.
• Set up the input/output functions in the corresponding parameters, as mentioned in the
section General Technical Data.
Frame sizes A1, A2 and A3
General Purpose Input Output Module MCB 101
MCB 101 is used for extension of digital and analog inputs and outputs of FC 301 and FC 302 Automa-
tionDrive.
Contents: MCB 101 must be fitted into slot B in the AutomationDrive.
• MCB 101 option module
• Extended fixture for LCP
• Terminal cover
MG.33.B8.02 - VLT ® is a registered Danfoss trademark
Frame sizes A5, B1, B2, C1 and C2
