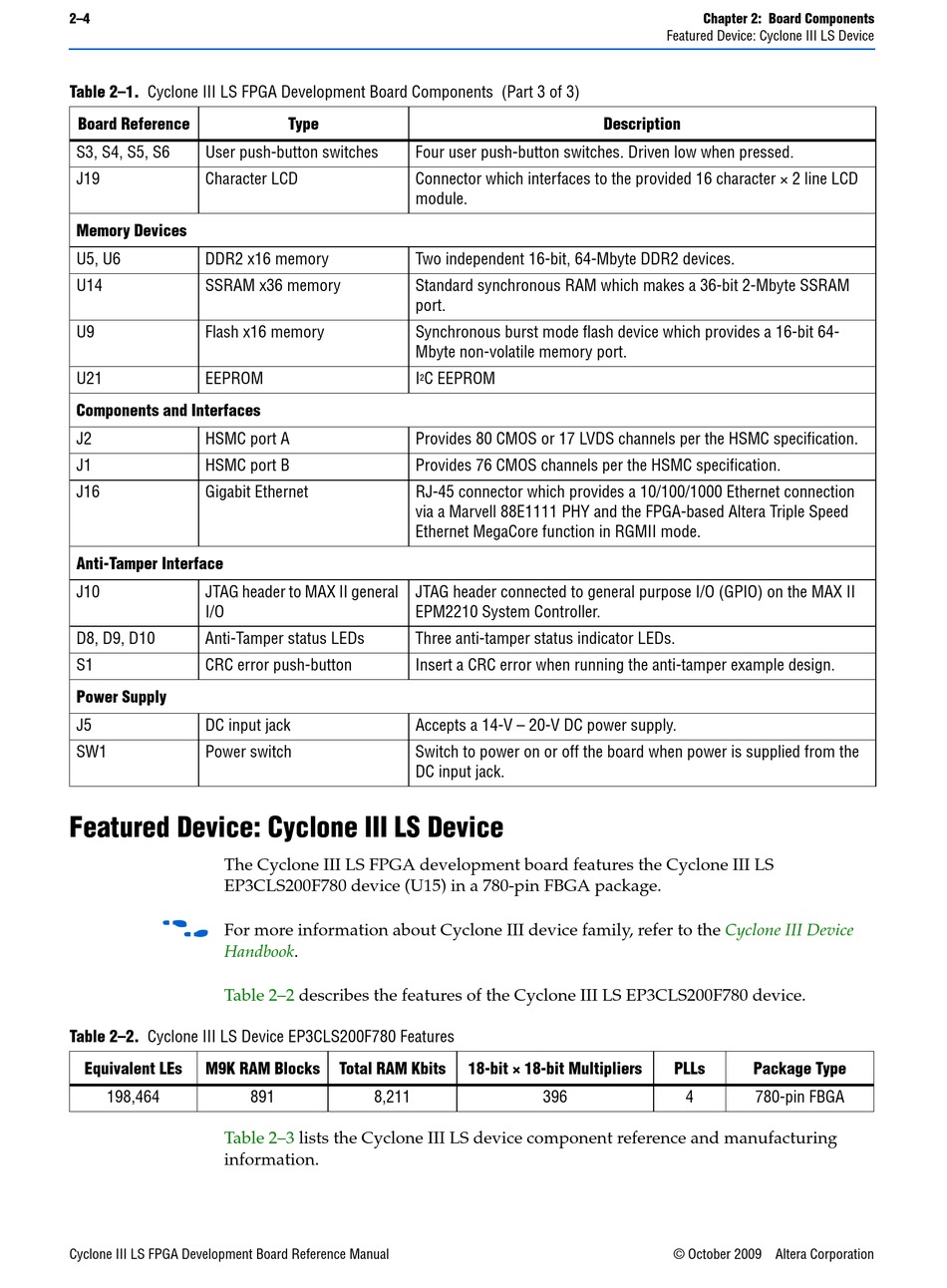

Table 2–1. Cyclone III LS FPGA Development Board Components (Part 3 of 3)
Board Reference
S3, S4, S5, S6 User push-button switches
J19 Character LCD
Memory Devices
U5, U6 DDR2 x16 memory
U14 SSRAM x36 memory
U9 Flash x16 memory
U21 EEPROM
Components and Interfaces
J2 HSMC port A
J1 HSMC port B
J16 Gigabit Ethernet
Anti-Tamper Interface
J10 JTAG header to MAX II general
I/O
D8, D9, D10 Anti-Tamper status LEDs
S1 CRC error push-button
Power Supply
J5 DC input jack
SW1 Power switch

Featured Device: Cyclone III LS Device

The Cyclone III LS FPGA development board features the Cyclone III LS
EP3CLS200F780 device (U15) in a 780-pin FBGA package.
f
For more information about Cyclone III device family, refer to the
Handbook.
Table 2–2
Table 2–2. Cyclone III LS Device EP3CLS200F780 Features
Equivalent LEs M9K RAM Blocks
198,464
Table 2–3
information.
Cyclone III LS FPGA Development Board Reference Manual
Type
Four user push-button switches. Driven low when pressed.
Connector which interfaces to the provided 16 character × 2 line LCD
module.
Two independent 16-bit, 64-Mbyte DDR2 devices.
Standard synchronous RAM which makes a 36-bit 2-Mbyte SSRAM
port.
Synchronous burst mode flash device which provides a 16-bit 64-
Mbyte non-volatile memory port.
I C EEPROM
2
Provides 80 CMOS or 17 LVDS channels per the HSMC specification.
Provides 76 CMOS channels per the HSMC specification.
RJ-45 connector which provides a 10/100/1000 Ethernet connection
via a Marvell 88E1111 PHY and the FPGA-based Altera Triple Speed
Ethernet MegaCore function in RGMII mode.
JTAG header connected to general purpose I/O (GPIO) on the MAX II
EPM2210 System Controller.
Three anti-tamper status indicator LEDs.
Insert a CRC error when running the anti-tamper example design.
Accepts a 14-V – 20-V DC power supply.
Switch to power on or off the board when power is supplied from the
DC input jack.
describes the features of the Cyclone III LS EP3CLS200F780 device.
Total RAM Kbits
891 8,211
lists the Cyclone III LS device component reference and manufacturing
Description
18-bit × 18-bit Multipliers
396
Chapter 2: Board Components
Featured Device: Cyclone III LS Device
Cyclone III Device
PLLs Package Type
4 780-pin FBGA
