Deutschmann Automation GmbH & Co. KG
16 Commissioning guide
16.1 Note
Only trained personnel following the safety regulations may commission the UNIGATE
16.2 Components
You will require the following components to commission the UNIGATE
®
UNIGATE
•
Connection cable from Gateway to the process
•
Connector for Ethernet connection to the Gateway
•
Ethernet cable (this cable is generally available on site!)
•
10..33 V DC power supply (DIN 19240)
•
User manual (the instruction manual can be ordered separately or downloaded free of charge
•
from our homepage at www.deutschmann.de).
16.3 Installation
®
The UNIGATE
CL - FE module features protection type IP20 and is thus suitable for switch
cabinet use. The device is designed for snapping onto a 35 mm DIN-rail.

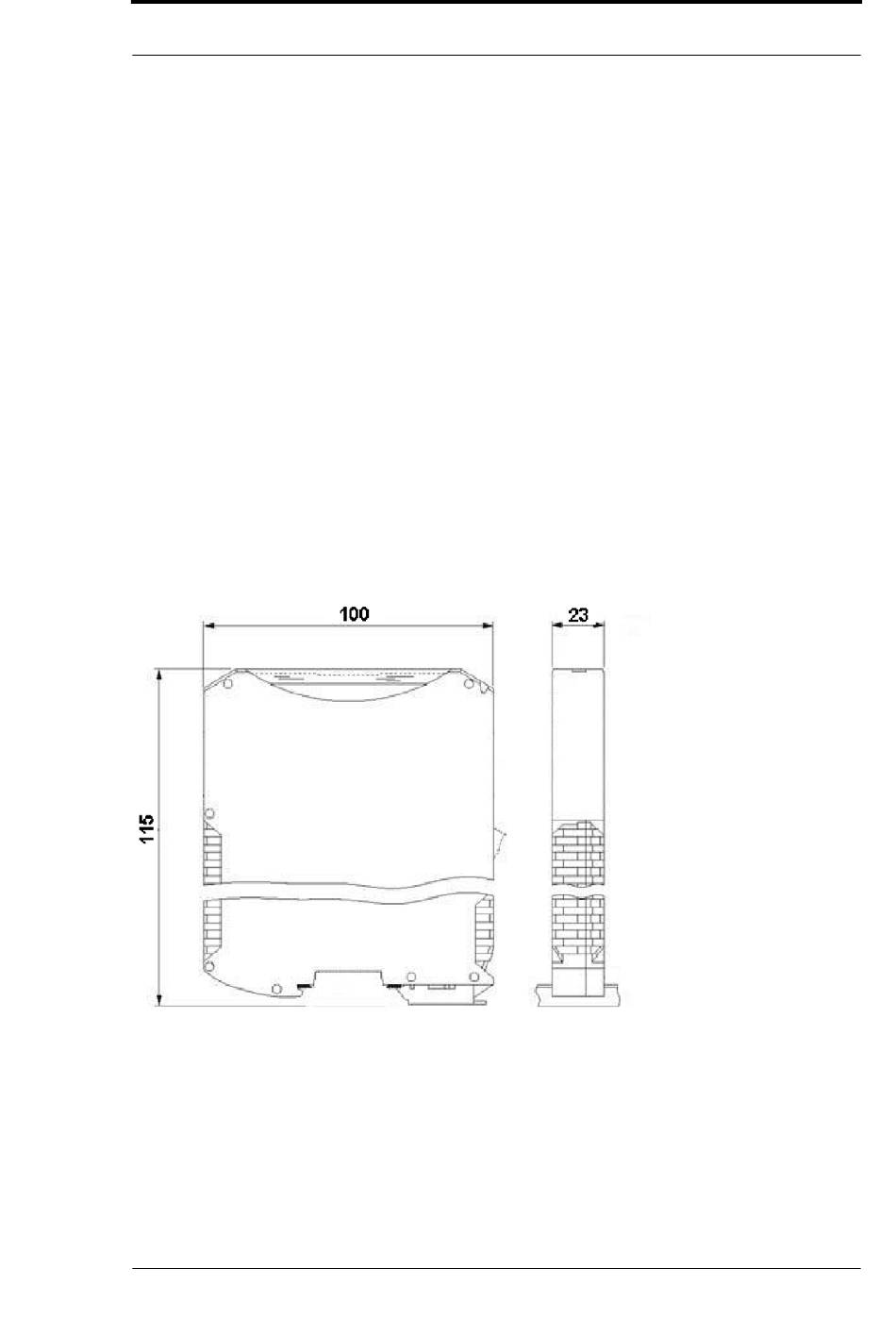

16.4 Dimensional drawing UNIGATE
16.5 Commissioning
It is essential that you perform the following steps during commissioning in order to ensure that
the module operates correctly:
16.6 Ethernet connection
Connect the device to the Ethernet network at the interface labeled "RJ45 Ethernet".
21.6.18
UNIGATE
®
CL - Fast Ethernet
Fieldbus Gateway UNIGATE
®
Commissioning guide
®
:
CL - Fast Ethernet V. 2.6
®
®
.
43
