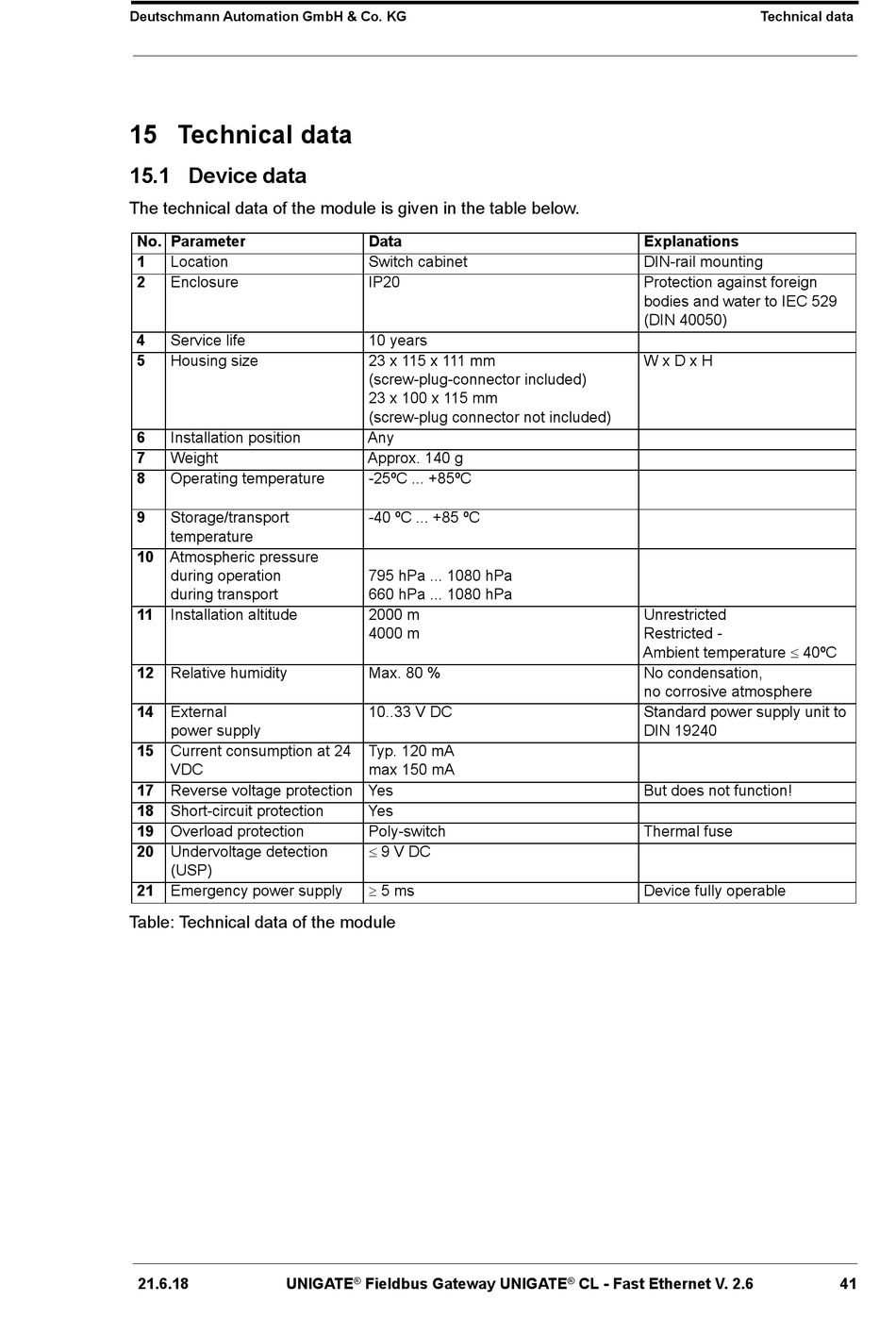

15 Technical data

15.1 Device data

The technical data of the module is given in the table below.
No. Parameter
1 Location
2 Enclosure
4 Service life
5 Housing size
6 Installation position
7 Weight
8 Operating temperature
9 Storage/transport
temperature
10 Atmospheric pressure
during operation
during transport
11 Installation altitude
12 Relative humidity
14 External
power supply
15 Current consumption at 24
VDC
17 Reverse voltage protection Yes
18 Short-circuit protection
19 Overload protection
20 Undervoltage detection
(USP)
21 Emergency power supply
Table: Technical data of the module
21.6.18 UNIGATE
Data
Switch cabinet
IP20
10 years
23 x 115 x 111 mm
(screw-plug-connector included)
23 x 100 x 115 mm
(screw-plug connector not included)
Any
Approx. 140 g
-25ºC ... +85ºC
-40 ºC ... +85 ºC
795 hPa ... 1080 hPa
660 hPa ... 1080 hPa
2000 m
4000 m
Max. 80 %
10..33 V DC
Typ. 120 mA
max 150 mA
Yes
Poly-switch
 9 V DC
 5 ms
Fieldbus Gateway UNIGATE
®
Explanations
DIN-rail mounting
Protection against foreign
bodies and water to IEC 529
(DIN 40050)
W x D x H
Unrestricted
Restricted -
Ambient temperature  40ºC
No condensation,
no corrosive atmosphere
Standard power supply unit to
DIN 19240
But does not function!
Thermal fuse
Device fully operable
CL - Fast Ethernet V. 2.6
®
Technical data
41
