Technical data

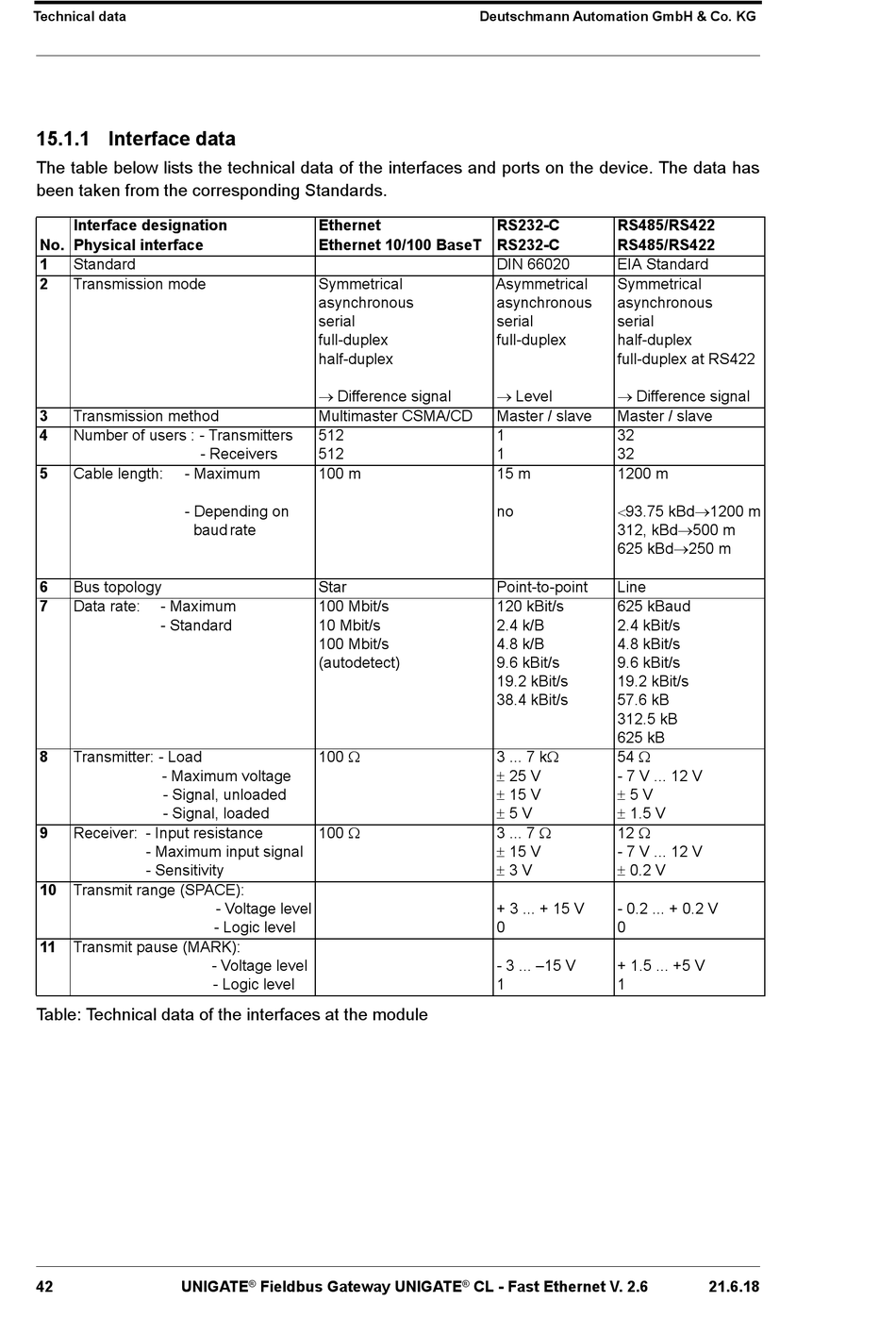

15.1.1 Interface data

The table below lists the technical data of the interfaces and ports on the device. The data has
been taken from the corresponding Standards.
Interface designation
No. Physical interface
1 Standard
2 Transmission mode
3 Transmission method
4 Number of users : - Transmitters
- Receivers
5 Cable length: - Maximum
- Depending on
baud rate
6 Bus topology
7 Data rate: - Maximum
- Standard
8 Transmitter: - Load
- Maximum voltage
- Signal, unloaded
- Signal, loaded
9 Receiver: - Input resistance
- Maximum input signal
- Sensitivity
10 Transmit range (SPACE):
11 Transmit pause (MARK):
Table: Technical data of the interfaces at the module
42 UNIGATE
Ethernet
Ethernet 10/100 BaseT RS232-C
Symmetrical
asynchronous
serial
full-duplex
half-duplex
Difference signal
Multimaster CSMA/CD
512
512
100 m
Star
100 Mbit/s
10 Mbit/s
100 Mbit/s
(autodetect)
100 
100 
- Voltage level
- Logic level
- Voltage level
- Logic level
Fieldbus Gateway UNIGATE
®
Deutschmann Automation GmbH & Co. KG
RS232-C RS485/RS422
RS485/RS422
DIN 66020 EIA Standard
Asymmetrical Symmetrical
asynchronous asynchronous
serial serial
full-duplex half-duplex
full-duplex at RS422
Level Difference signal
Master / slave Master / slave
1 32
1 32
15 m 1200 m
93.75 kBd1200 m
no
312, kBd500 m
625 kBd250 m
Point-to-point Line
120 kBit/s 625 kBaud
2.4 k/B 2.4 kBit/s
4.8 k/B 4.8 kBit/s
9.6 kBit/s 9.6 kBit/s
19.2 kBit/s 19.2 kBit/s
38.4 kBit/s 57.6 kB
312.5 kB
625 kB
54 
3 ... 7 k
 25 V
- 7 V ... 12 V
 15 V  5 V
 5 V  1.5 V
3 ... 7  12 
 15 V
- 7 V ... 12 V
 3 V  0.2 V
+ 3 ... + 15 V - 0.2 ... + 0.2 V
0 0
- 3 ... –15 V + 1.5 ... +5 V
1 1
