Hardware ports, switches and LEDs

Deutschmann Automation GmbH & Co. KG
11 Hardware ports, switches and LEDs

11.1 Device labeling

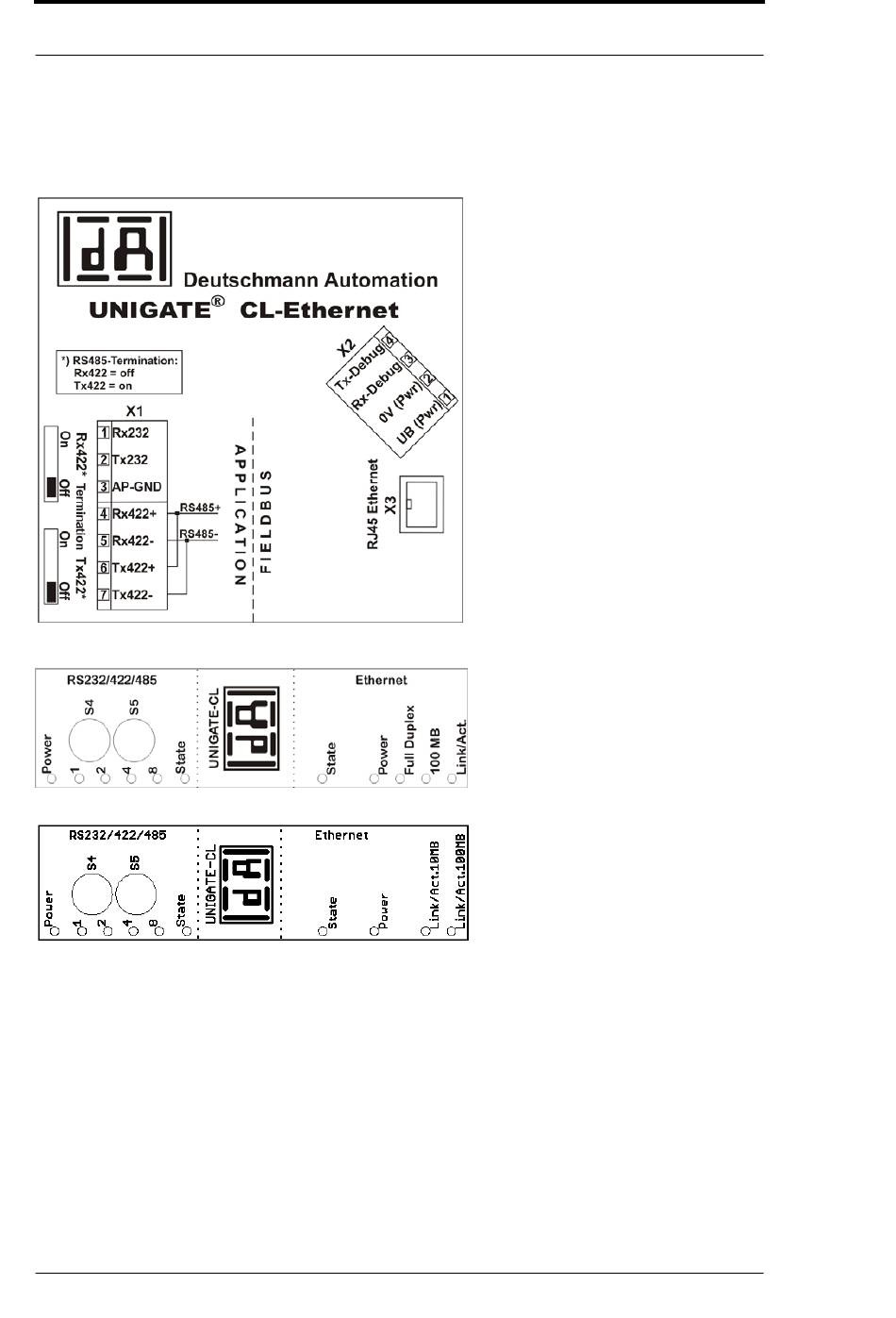

Picture 1: Terminal labeling and termination
Bild 2: Front panel: Rotary switches and LEDs (from hard.-rev. B on)
Picture 3: Front panel: Rotary switches and LEDs (only hard.-rev. A)

11.2 Connectors

11.2.1 Connector to the external device (RS-interface)

The serial interface is available at the plug accessible on the upper side of the device.
