HOW TO SELECT A PROFILE

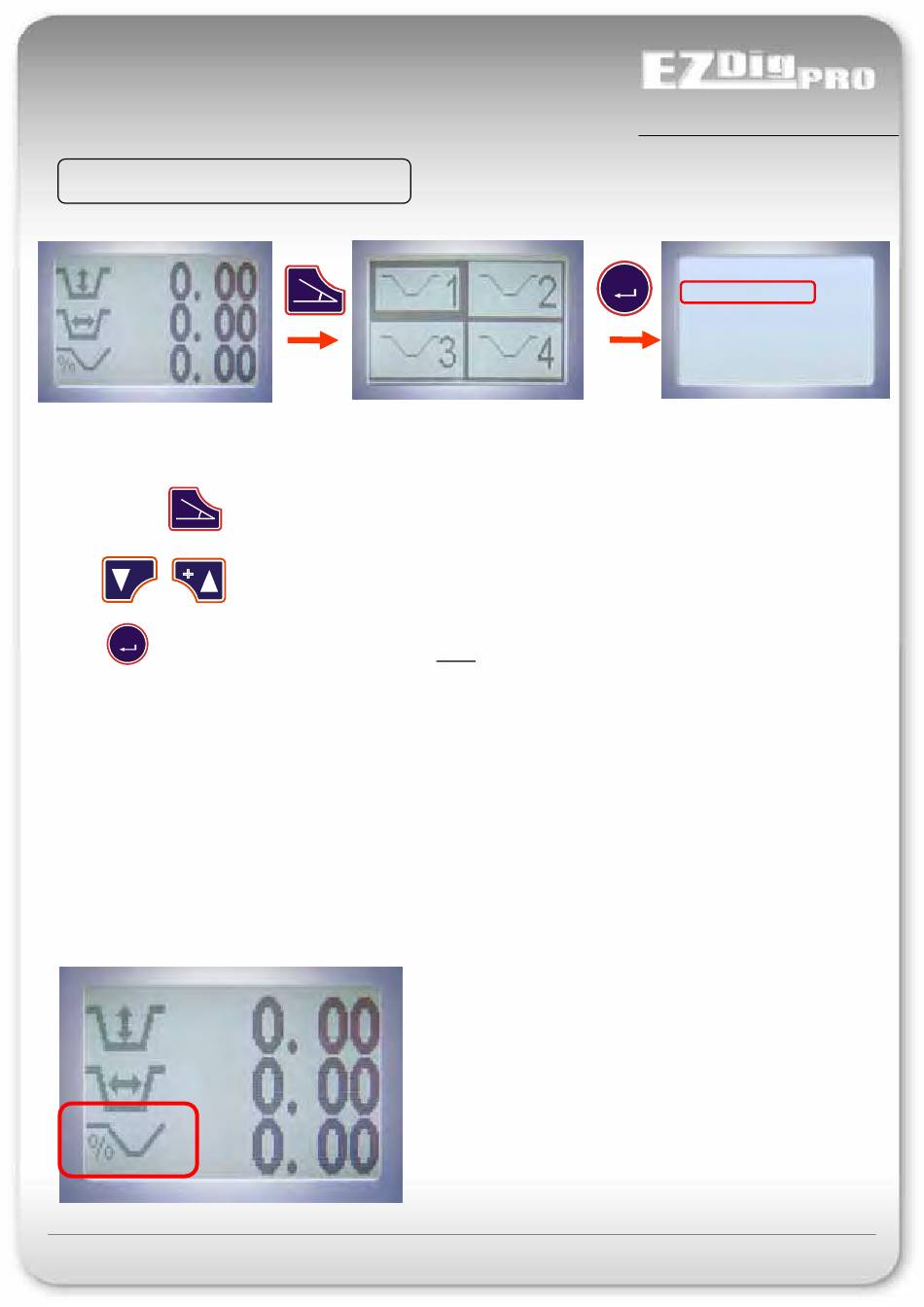

Figure P1
%
Press and hold
-
Press or
Enter
Press and the page in figure P3 will be shown. Note: If no icon is selected, the profile mode will be disabled and
the panel will return to the main operator page.
Use – Start to work with the selected profile. No further settings, and the system will return in the working page.
Edit – Enter a new shape for the selected profile or edit the actual shape. This can be done manually or by copying an
existing shape. See next page.
Delete – Delete all values set of the selected profile.
If the control box is using a profile instead of the single slope to calculate the actual depth, the slope icon on the working
page will appear as follows:
EZDigPro
%
Figure P2
to enter the profile setting mode. The page represented in figure P2 will show.
to select the desired profile.
Enter
- 85 -
Advanced Mode
Profile:
Use
Edit
Delete
