System Functionality

A
Fig.1
This system can be used to dig with an excavator to a desired depth and create a leveled plane or to set a slope
and create a tilted surface.
It's also possible to dig a multi-slope surface using the additional setup functions in the advanced mode. The
profile function pre-sets the shape, and no further settings on the control box are required during operation.

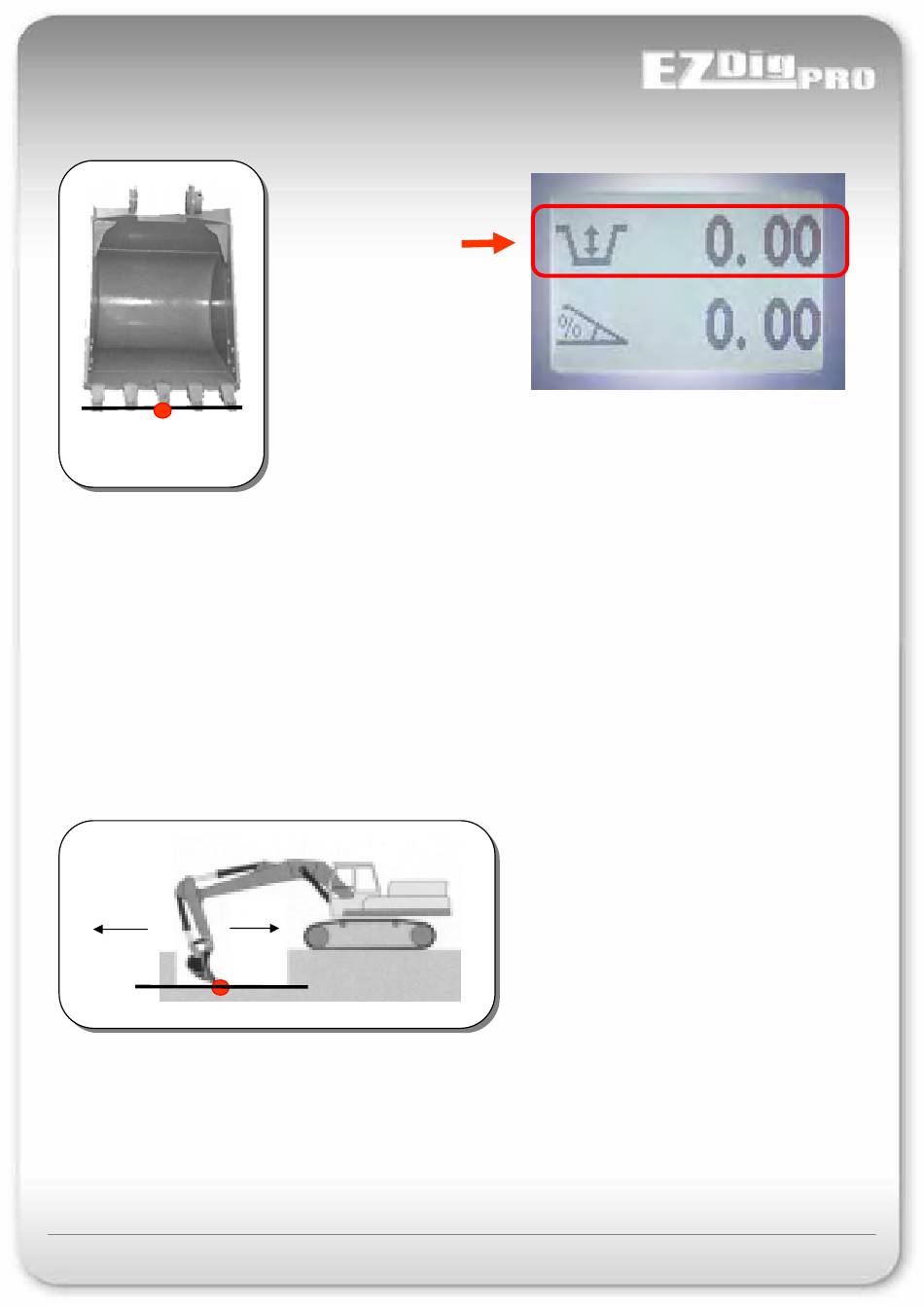

All the digging information is referenced to the center of the bucket blade (or teeth – point A in figure 1) and the
depth value shown is the distance from the actual position to the correct depth value (target).
With the system the operator has to dig "straight" (only moving the booms/bucket in and out).
After the reference (target) depth has been set, the chassis has to stay stable and any rotation of it will produce a
possible additional error depending on the inclination.
A
Every time that the excavator tracks are moved, it's necessary to zero again the reference (target) depth on a
previous point or, depending on the setup, take the laser height again or use the "memory function".
See next pages for further details.
