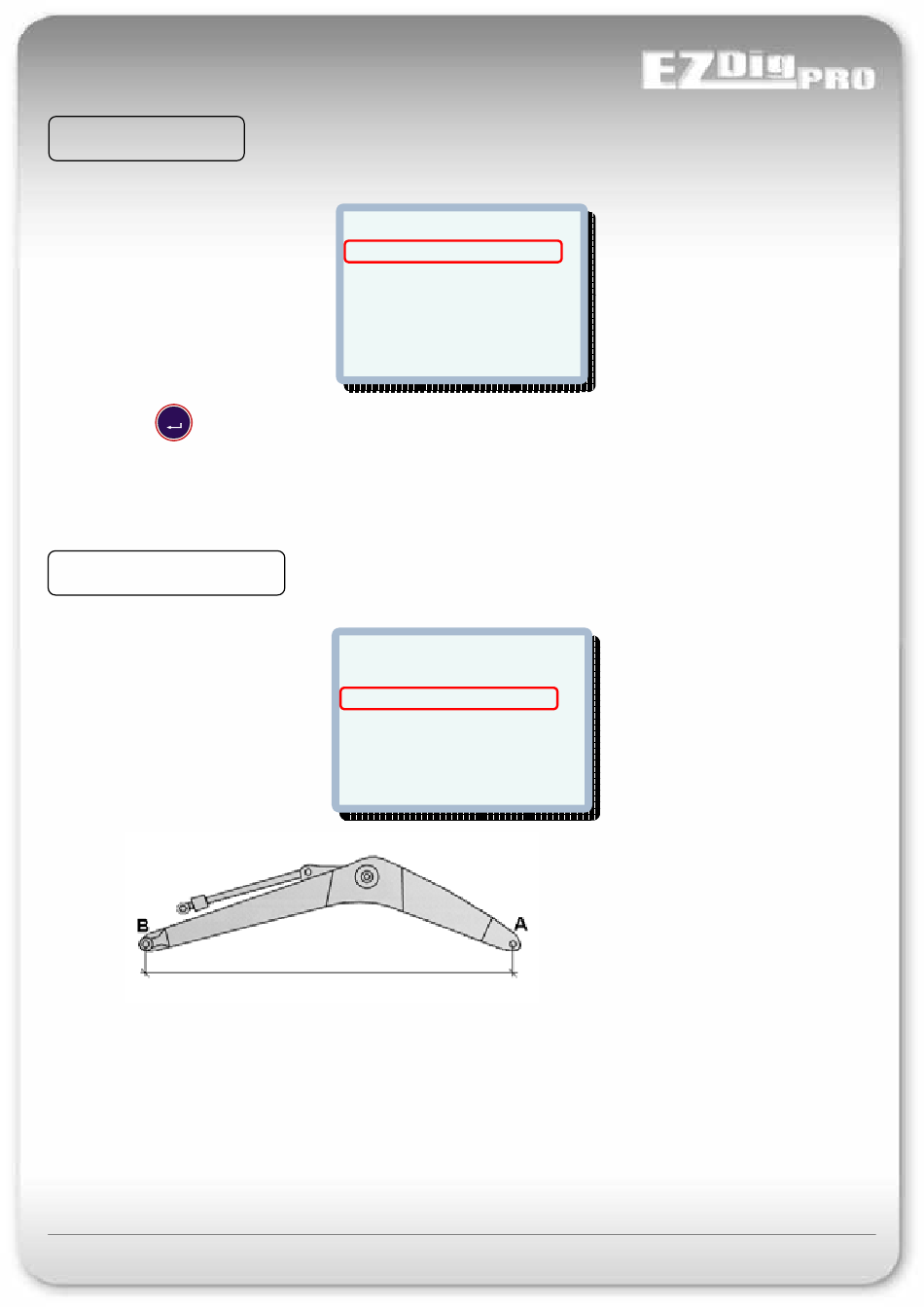

BOOM 1 - SIDE
Select (press ) the Side where the sensor is installed; viewing the excavator from the cab: L = Left and R =
Enter
Right.
This setting has to be done for every sensor.
BOOM 1 - LENGTH
Measure accurately the length of the first boom between the center of pivot A and the center of pivot B.
Move the cursor to highlight Length and set the exact value expressed in the selected unit of measure.
EZDigPro
Boom 1
Skip this section if you have done automatic calibration
BOOM 1 CALIBRAT.
BOOM 1 CALIBRAT.
Side
Side
Length
Length
Angle
Angle
-Offset
-Offset
-Actual
-Actual
BOOM 1 CALIBRAT.
BOOM 1 CALIBRAT.
Side
Side
Length
Length
Angle
Angle
-Offset
-Offset
-Actual
-Actual
- 43 -
L
L
6.600
6.600
30.0
30.0
25.0
25.0
0.0
0.0
L
L
6.600
6.600
30.0
30.0
25.0
25.0
0.0
0.0
Boom Length (Boom1)
User & Calibration Manual
Fig.1
