MEASURING ANGLES
METHOD 1

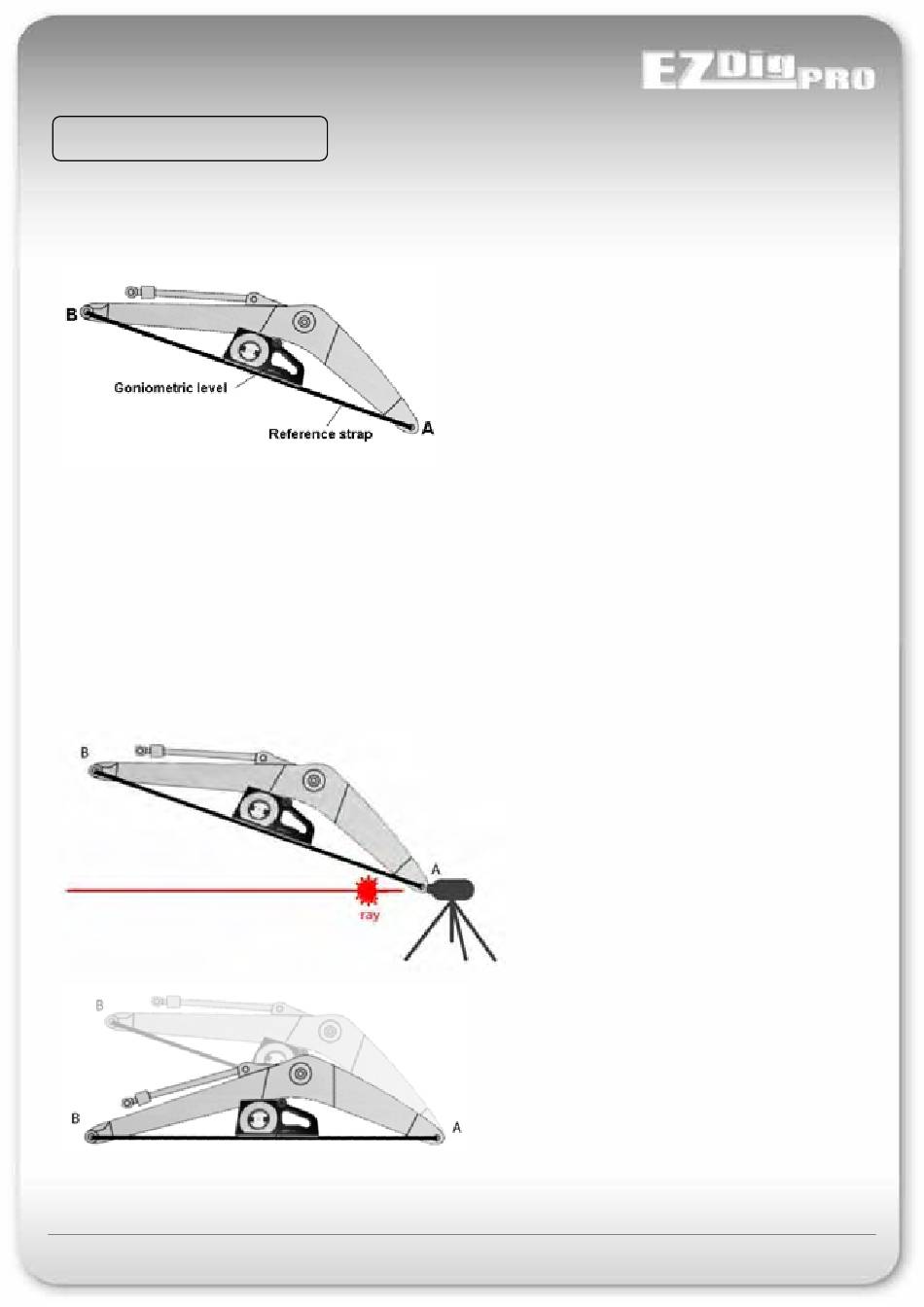

Place a straight edge from center of pivot A to center of pivot B and using an inclinometer, read the actual angle (Fig.2).
METHOD 2
If a tripod with laser transmitter and visible beam is available, the previous procedure could be executed by the alignment
of the points A and B to the horizontal plane of the transmitter; first by pointing the beam on point A (moving up and
down the laser) and then moving the boom until the point B is again spotted by the beam. In this case the angle value to
be entered is 0.0 (0 degrees).
The same procedure could be used for other booms. If it is not possible to reach the horizontal position, rotate the laser
90 degrees in order to generate a vertical plane and align the boom A and B point (i.e. stick or bucket) to vertical plane
again by fixing A point first and then B. In this case the angle value to be entered is –90.0 degrees.
EZDigPro

Measuring Tips

- 45 -
Fig.2
