Sensors

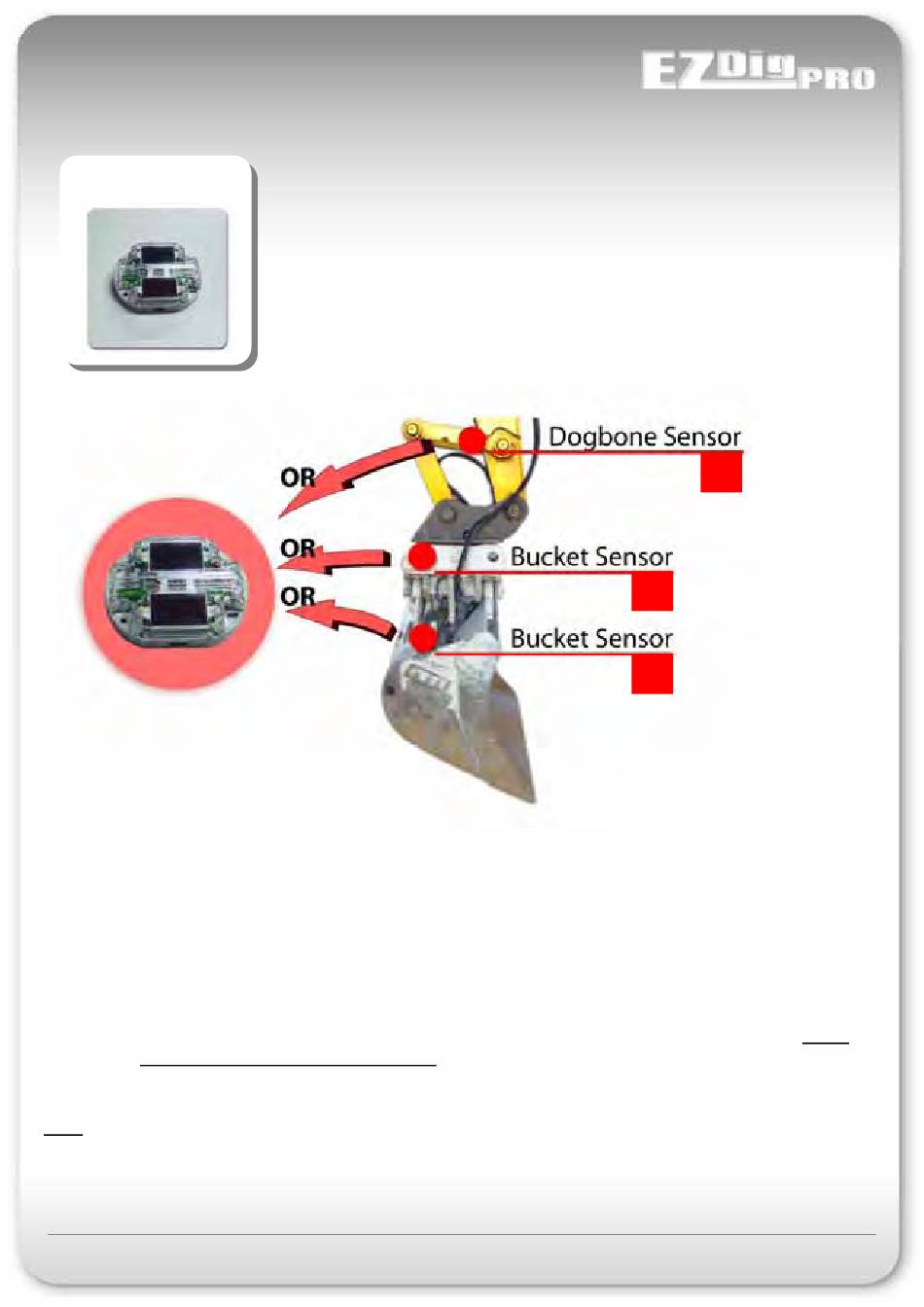

Determine a safe location for the bucket sensor. You can install it in the following locations:
A) On the top part of the backside of the bucket
Might be unsafe – be sure that the sensor is protected.
B) On a quick connector
Usually the best place. If you decide to install the sensor "inside" the quick connector, note to which side the
plastic cap of the sensor is located (you will be asked during the calibration process).
C) On the dog bone
If you decide to install the bucket sensor on the dog bone, be sure to run the dog bone calibration before
running the complete sensor calibration.
Note: Remember the side you're installing each sensor. Even if you install a sensor on the right part of an element (for
example on the inside of the quick connector), still the clear housing might show to the left. Usually a complete installation
on the left side is recommended to have all the sensors visible from the cab.
EZDigPro

Components Installation

Place of Installation
BUCKET
- 14 -
C
B
A
