Summary of Contents for Agatec RL110

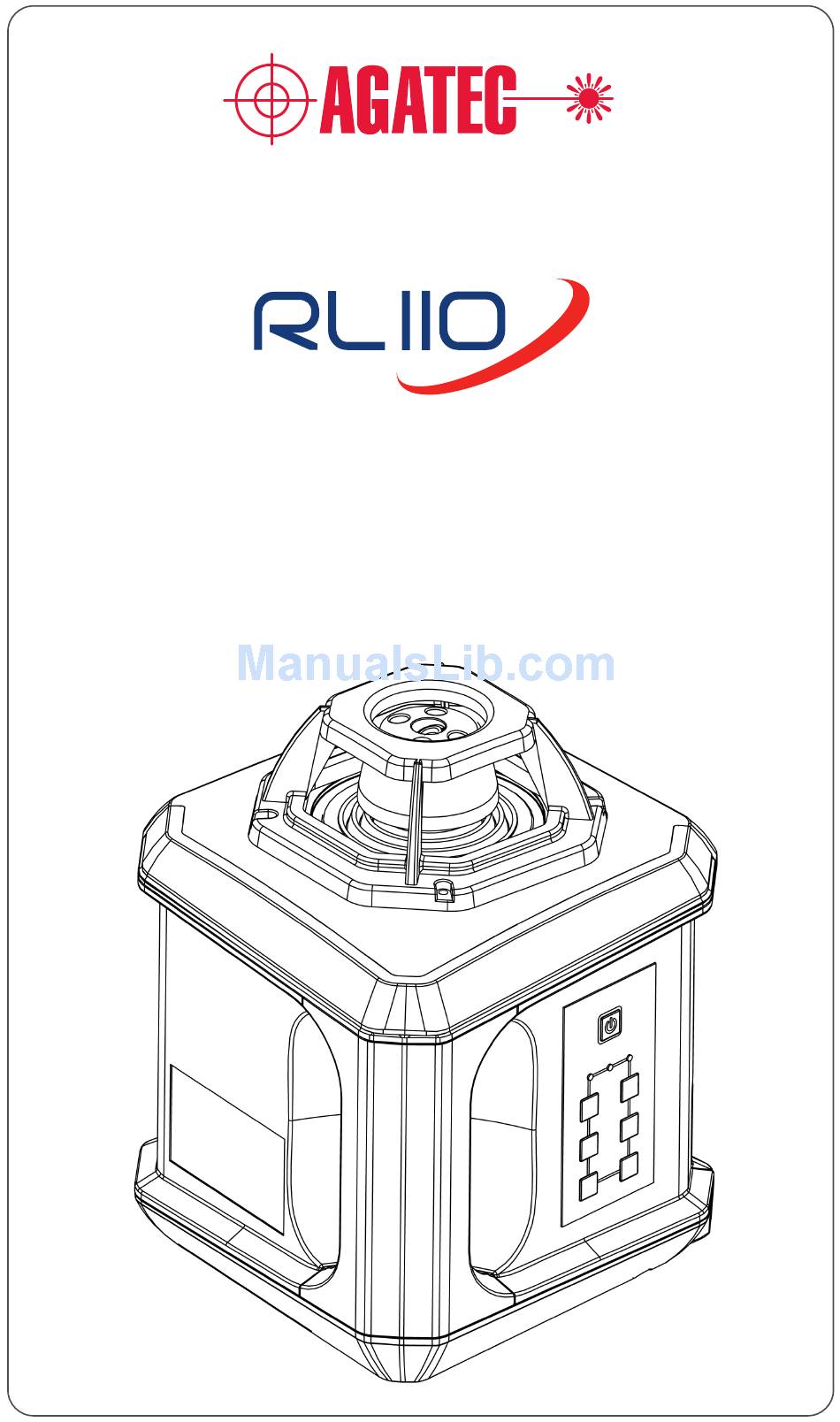

- Page 1 User manual...
-
Page 2: Introduction
User Manual English Introduction Purchase Congratulations on the purchase of a new Rotating Laser from Agatec. Product This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to "Safety Directions" for further information. -
Page 3: Table Of Contents
Contents Introduction Features Laser Overview {A} Keypad Overview {B} Basic Operation How to use your Agatec RL110 Button Functions Automatic / Manual modes H.I. Alert mode Rotation mode Scanning mode Wall Mount Set-up manual slopes Accessories Remote Control Receiver/Remote Control... -
Page 4: Features
4) Rotating laser beam aperture 5) Batteries 6) 5/8"-11 Tripod mount for horizontal setup Keypad Overview {B} The keypad for the Agatec RL110 laser has seven buttons and three LED indicators. 1) On / Off 2) H.I. (Elevation) Alert 3) UP... - Page 5 Laser Overview {A} Keypad Overview {B}...
-
Page 6: Basic Operation
How to use your Agatec RL110 Horizontal Setup The laser can be mounted on a 5/8"-11 tripod or placed directly on a solid, stable surface. Agatec RL110 can be suspended from a ceiling grid using the wall mount. Vertical Setup The laser can be placed directly on its back (opposite the handle) on a solid, stable surface. -
Page 7: Automatic / Manual Modes
Automatic / Manual modes The Agatec RL110 is in automatic, self-leveling mode when turned on. Once the instrument has self-leveled, the laser head will start rotating with 600 rpm. In manual mode, the laser does not self-level; this means that the beam will rotate even if the laser is not leveled. -
Page 8: Rotation Mode
• Thirty seconds later, the LED will blink slowly, indicating the H.I. Alert function is activated. • If the laser is disturbed while in H.I. Alert mode, the head will stop rotating, the beam will turn off, all LEDs will blink red. •... -
Page 9: Set-Up Manual Slopes
Set-up for manual slopes The Agatec RL110 can be used to manually create slopes for special applications, stairways, sloped ceilings, etc. For slopes up to 10%, set up the laser in horizontal mode and use the keypad or remote to set the slope following the instructions below. -
Page 10: Receiver
Receiver The receiver indicates elevation information from rotating laser levels. 1) Power on/off Press once to turn On. Press and hold to turn off. 2) Audio Select the sound level, from Normal, Loud, Off. 3) Bandwidth Cycle through detection accuracy, from Normal, Fine. -
Page 11: Replacing Alkaline Batteries
Replacing alkaline batteries Follow the steps below to replace the alkaline batteries in your laser. • To access the battery compartment, loosen the knobs connecting the laser to the wall mount. • Use a coin or small screwdriver to remove the cover of the battery compartment at the back of the laser. -
Page 12: Checking Vertical Accuracy
• Rotate the laser 180°, allow it to self level and mark the opposite side of the first axis (Position 2). • Align the Y-axis by rotating the laser 90° so that this axis is now square to the wall. Allow the laser to self- level completely, and then mark the position of the beam (Position 3). - Page 13 • Press a UP/DOWN Key {C-4 or C-5} to adjust the beam up or down. Five presses of the key will move the beam approximately 0.75 mm at 30 meters (1/32" at 100 feet). After completing the changes to the X-axis, do one of the following steps: •...
- Page 14 Adjusting level accuracy - The Z-axis After checking the accuracy of your laser, perform the following steps to adjust the accuracy of the Z-axis. • Turn off the laser. • Place the laser in the laydown position approximately 6 meters (20 feet) from a plumb line on a wall.
-
Page 15: Troubleshooting
Troubleshooting Symptom Possible Causes and Solutions The laser beam blinks, The unit is most likely out of its 10% but the unit will not self-leveling range. self-level or rotate. • Check your set up and re-level the tripod if necessary. •... -
Page 16: Care And Transport
Shipping When transporting the product by rail, air or sea, always use the complete original Agatec packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration. Shipping, transport of batteries When transporting or shipping batteries, the person in charge of the product must ensure that the applicable national and international rules and regulations are observed. -
Page 17: Cleaning And Drying
Cleaning and Drying Product and Accessories • Blow dust off optical parts. • Never touch the glass with your fingers. • Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. •... -
Page 18: Limits Of Use
Responsibilities Manufacturer of the product Agatec SAS - 60, route de Sartrouville - 78230 Le Pecq - France, hereinafter referred to as Agatec, is responsible for supplying the product, including the user manual and original accessories, in a completely safe condition. -
Page 19: Hazards Of Use
• To be familiar with local regulations relating to safety and accident prevention. • To inform Agatec immediately if the product and the application becomes unsafe. WARNING The person responsible for the product must ensure that it is used in accor- dance with the instructions. - Page 20 DANGER Because of the risk of electrocution, it is very dangerous to use grade rods and staffs in the vicinity of electrical installations such as power cables or electrical railways. Precautions: Keep at a safe distance from electrical installations. If it is essential to work in this environment, first contact the safety authorities responsible for the electrical installa- tions and follow their instructions.
-
Page 21: Laser Classification
The product must not be disposed with household waste. Dispose of the product appropriately in accordance with the national regulations in force in your country. WARNING Only Agatec authorized service workshops are entitled to repair these products. Laser Classification General... - Page 22 Products classified as laser class 2 or class 3R may cause dazzle, flash blindness and afterimages, particularly under low ambient light conditions. Agatec RL110 is a Class 2 laser product in accordance with: • IEC60825-1 : 2007 "Radiation safety of laser products"...
- Page 23 WARNING Potential hazards are not only related to direct beams but also to reflected beams aimed at reflecting surfaces such as prisms, windows, mirrors, metallic surfaces etc. Precautions: Do not aim at areas that are essentially reflective, such as mirror, or which could emit unwanted reflections.
-
Page 24: Electromagnetic Compatibility (Emc)
WARNING Electromagnetic radiation can cause disturbances in other equipment. Although the product meets the strict regulations and standards which are in force in this respect, Agatec cannot completely exclude the possibility that other equipment may be disturbed. CAUTION There is a risk that disturbances may be caused in other equipment... -
Page 25: International Limited Warranty
• Consult the dealer or an experienced radio/TV techni-cian for help. WARNING Changes or modifications not expressly approved by Agatec for compliance could void the user's authority to operate the equipment. REMOTE CONTROL IR Remote range... -
Page 26: Technical Data
Technical Data SPECIFICATIONS Agatec RL110 Ø Operating Range up to 60 m (200 ft) w/out receiver up to 200m (656 ft) w/ receiver Self-leveling Accuracy* ± 1 mm at 10 m (± 0.04”at 33 ft) Automatic Leveling Horizontal/Vertical Self-leveling Range ±... - Page 27 78230 Le Pecq - France Tel: +33 1 34 93 35 80 Fax: +33 1 34 93 35 89 info@agatec.com www.agatec.com AGATEC Construction Lasers 2202 Redmond Rd., Jacksonville, AR 72076 -USA Tel: (800) 643-9696; (501) 982-4433 Fax: (501) 982-0880 sales@agatec-na.com www.agatec-na.com...
