Booms / Bucket Sensors

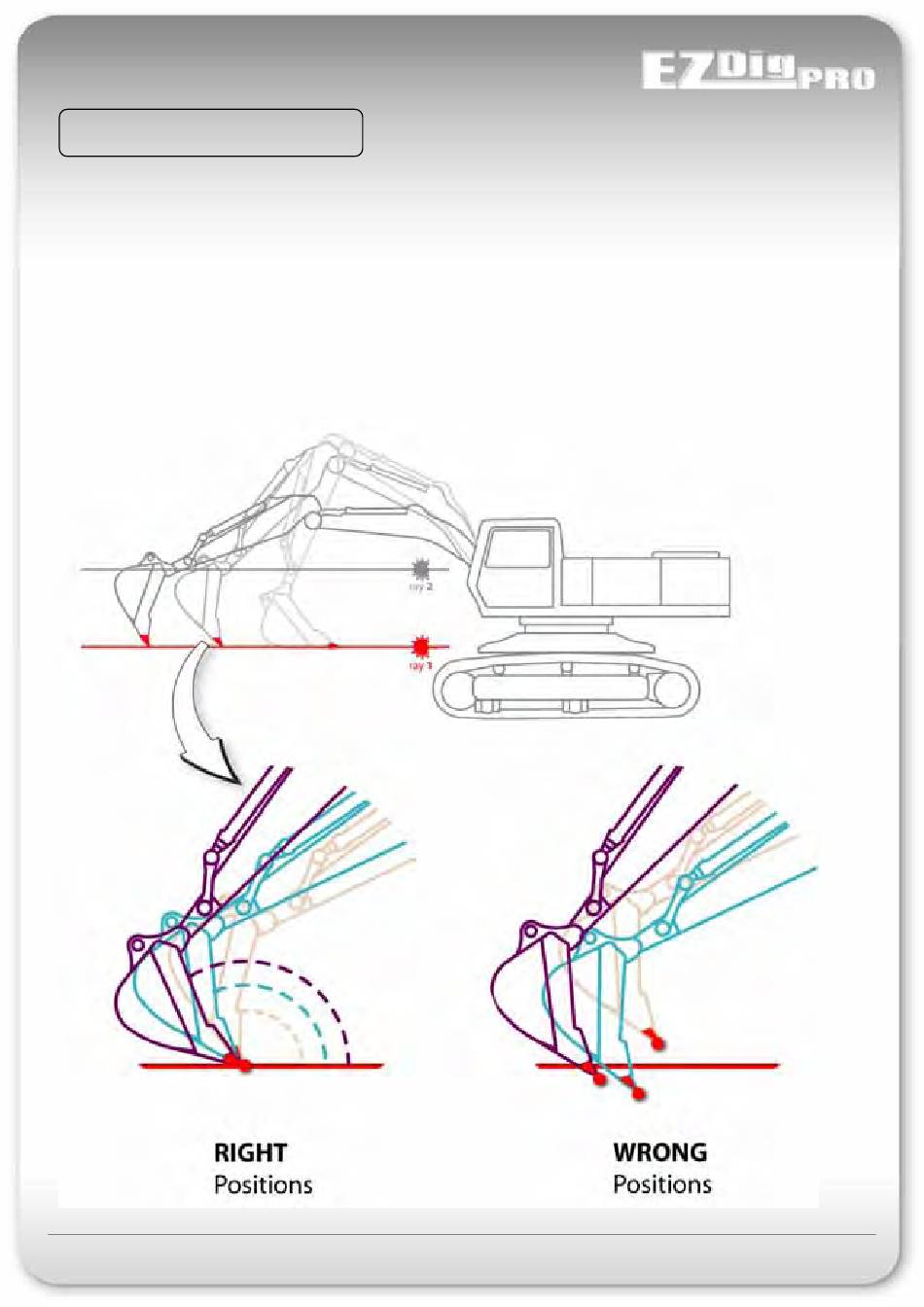

For automatic calibration of these sensors, you must move the bucket to 10 to 15 points along 2 lines that have a
different elevation.
Choose a method to create these 2 lines that will give you the greatest difference in height between Beam 1 and Beam
2. The easiest is to create a laser line with the self-leveling laser pointer that's included with the system. You can mount
it on a tripod, attach it anywhere on the machine using the magnetic L-bar, or use the remote display's suction cup
mount (which has a ball joint for easy positioning).
Before starting, place the chassis horizontal and levelled. Make sure that it's very stable and that you can take enough
points in both lines without moving the chassis. You need a minimum of 10 points with 3 sensors or 15 with 4 sensors.
