BOOM 1 - ANGLE
Move the cursor to highlight parameter Angle, set the exact boom value in degrees referring to Fig. 2.
See next page for the best method to define boom's angles.
Press and you will see the new offset value acquired.
Enter
The system also calculates the correction factor. Offset is the angle difference between the sensor absolute angle
and the real machine boom angle. It can be manually adjusted.
Actual
is the actual real boom angle – valid only after boom angle calibration. Useful to compare immediately after
calibration the real machine angle
EZDigPro
Boom 1
BOOM 1 CALIBRAT.
BOOM 1 CALIBRAT.
Side
Side
Length
Length
Angle
Angle
-Offset
-Offset
-Actual
-Actual
.
- 44 -
L
L
6.600
6.600
30.0
30.0
25.0
25.0
0.0
0.0

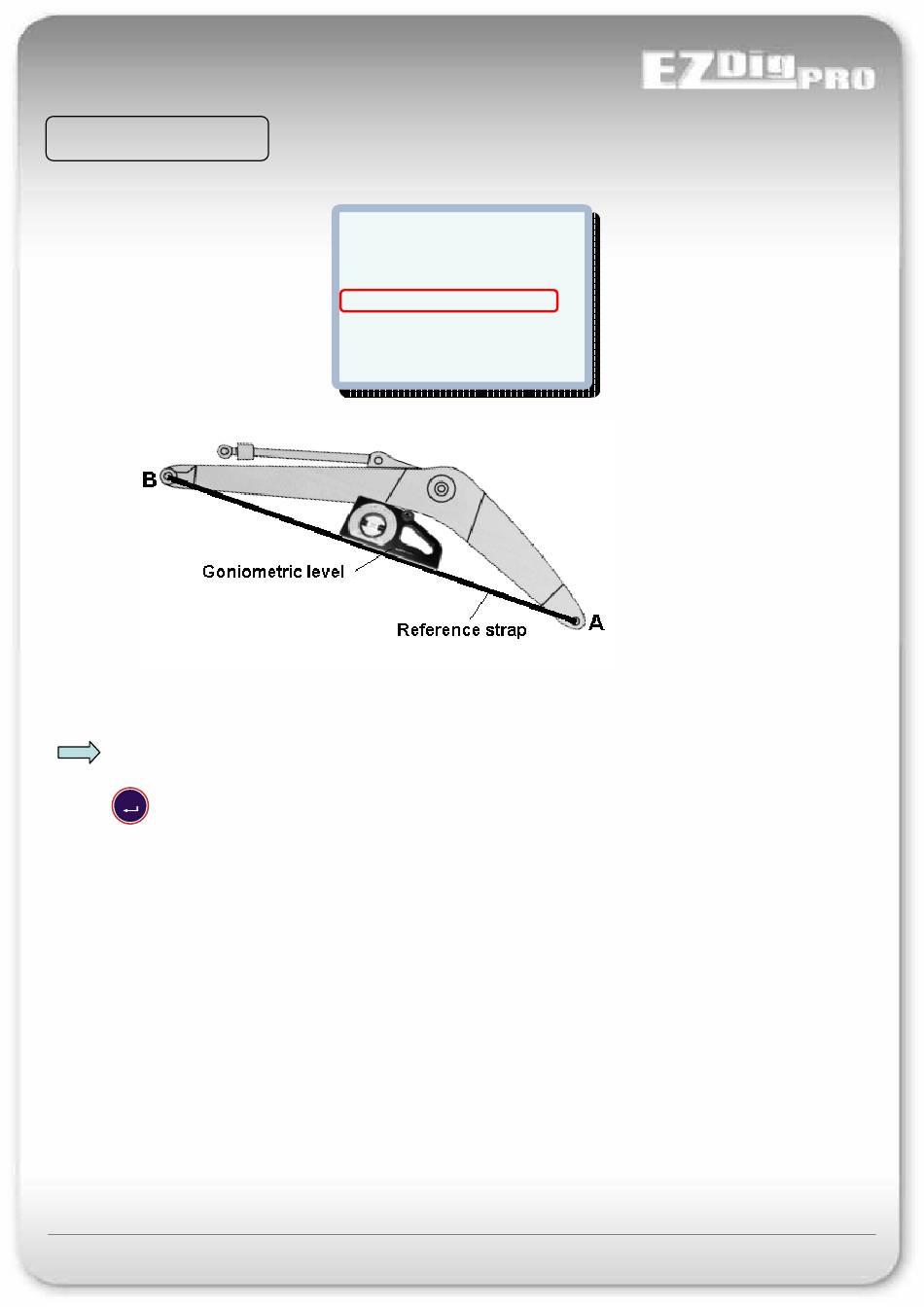

Boom Angle (Boom1)
User & Calibration Manual
Fig. 2
