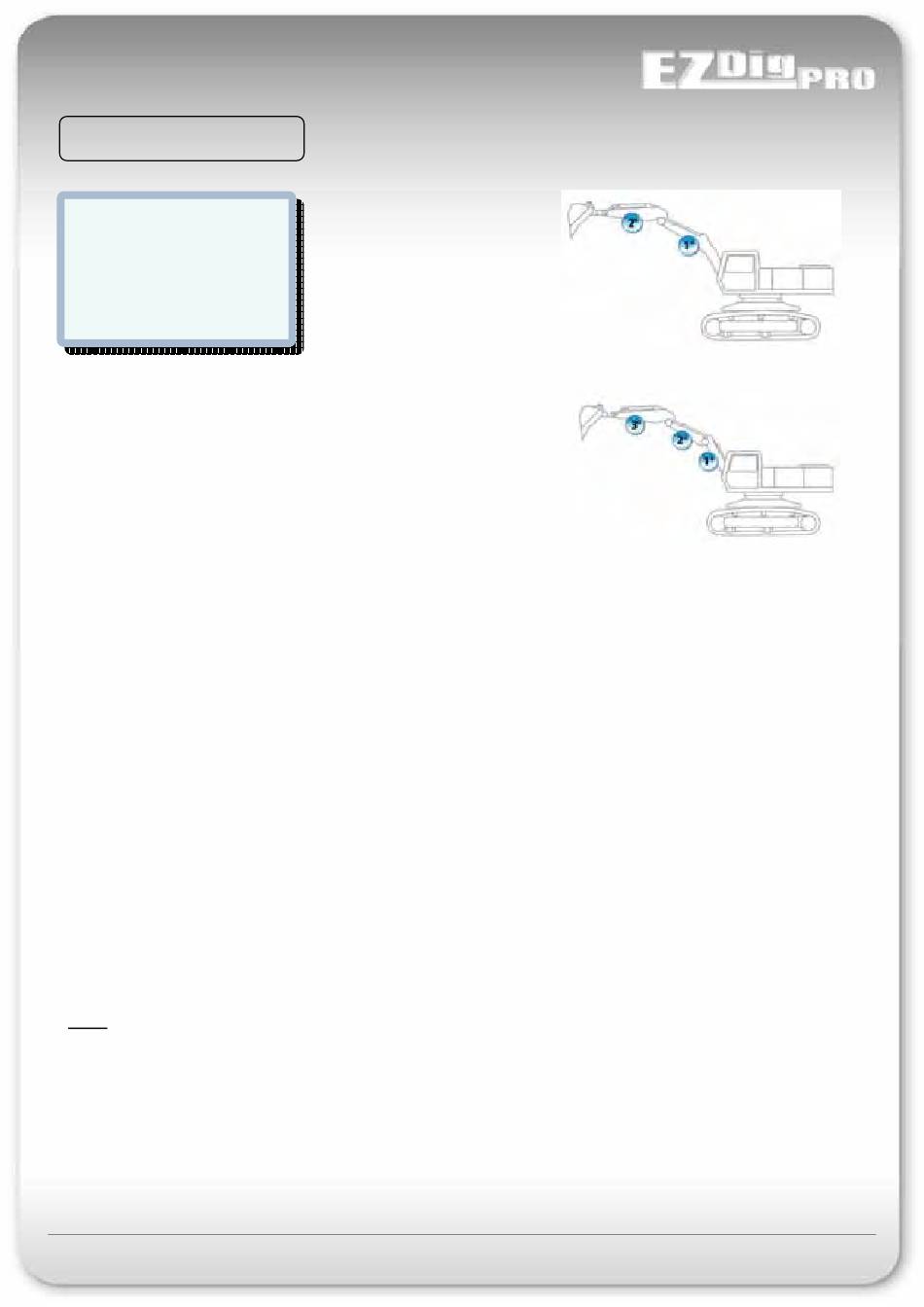

LASER RECEIVER

LASER RECEIVER
LASER RECEIVER
Boom N.
Boom N.
HoriDist 0.000
HoriDist 0.000
VertDist 0.000
VertDist 0.000
Boom N.
Boom number where the laser receiver is installed.
HoriDist
This value indicates the distance between A and C (ref. drawings in fig 11 – fig 20 in the following pages). This
point is obtained at the intersection on the projected line A-B by the perpendicular through center of the Laser
Receiver.
Insert the relevant value in meters or feet.
VertDist
This value corresponds to the distance between E and D (center of Laser Receiver to point D on projection AB, ref.
Fig.11 – Fig.20).
Insert the relevant value in meters or feet.
Note: Be careful to dial in the correct sign especially for the vertical distance (E-D). Refer to the following drawings.

EZDigPro

Laser Receiver
2
2
- 54 - User & Calibration Manual
