Agatec EZDigPro User & Calibration Manual page 47

[manual calibration]
BOOM 2 - LENGTH

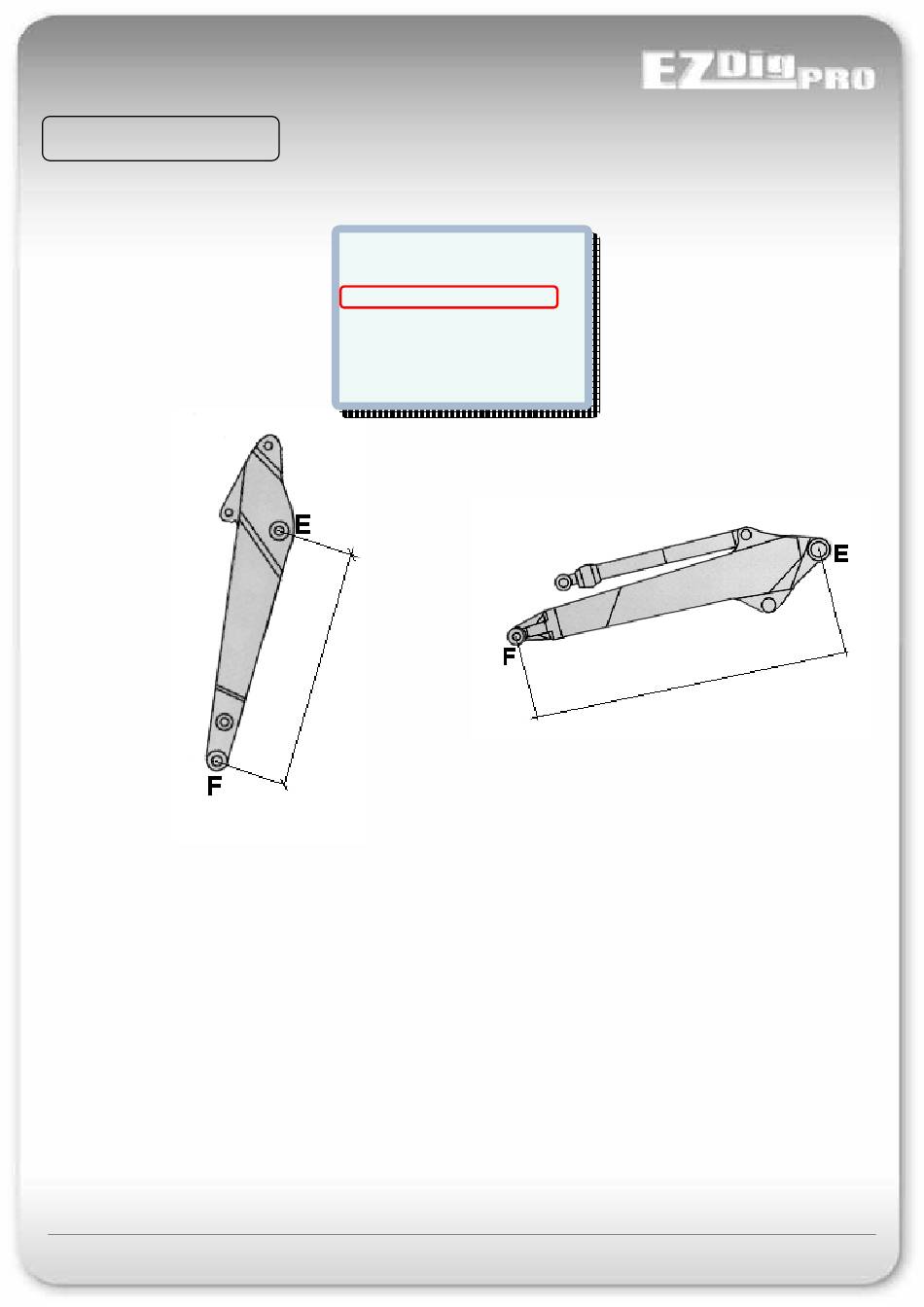

Fig.3 – conventional boom
Measure accurately the length of the second boom between the center of pivot E and the center of pivot F
Move the cursor to highlight parameter
EZDigPro
Boom 2
BOOM 2 CALIBRAT.
BOOM 2 CALIBRAT.
Side
Side
Length
Length
Angle
Angle
-Offset
-Offset
-Actual
-Actual
Length
and set the exact value expressed in the selected unit of measure.
- 47 -
L
L
6.600
6.600
30.0
30.0
25.0
25.0
0.0
0.0
Fig.4 – articulated boom
User & Calibration Manual
