[manual calibration]
BUCKET
System can store up to 9 different buckets for each machine (from 1 to 9 ).
The bucket number that will be manually calibrated is the actual bucket selected from the bucket selection page.
BUCKET - LENGTH

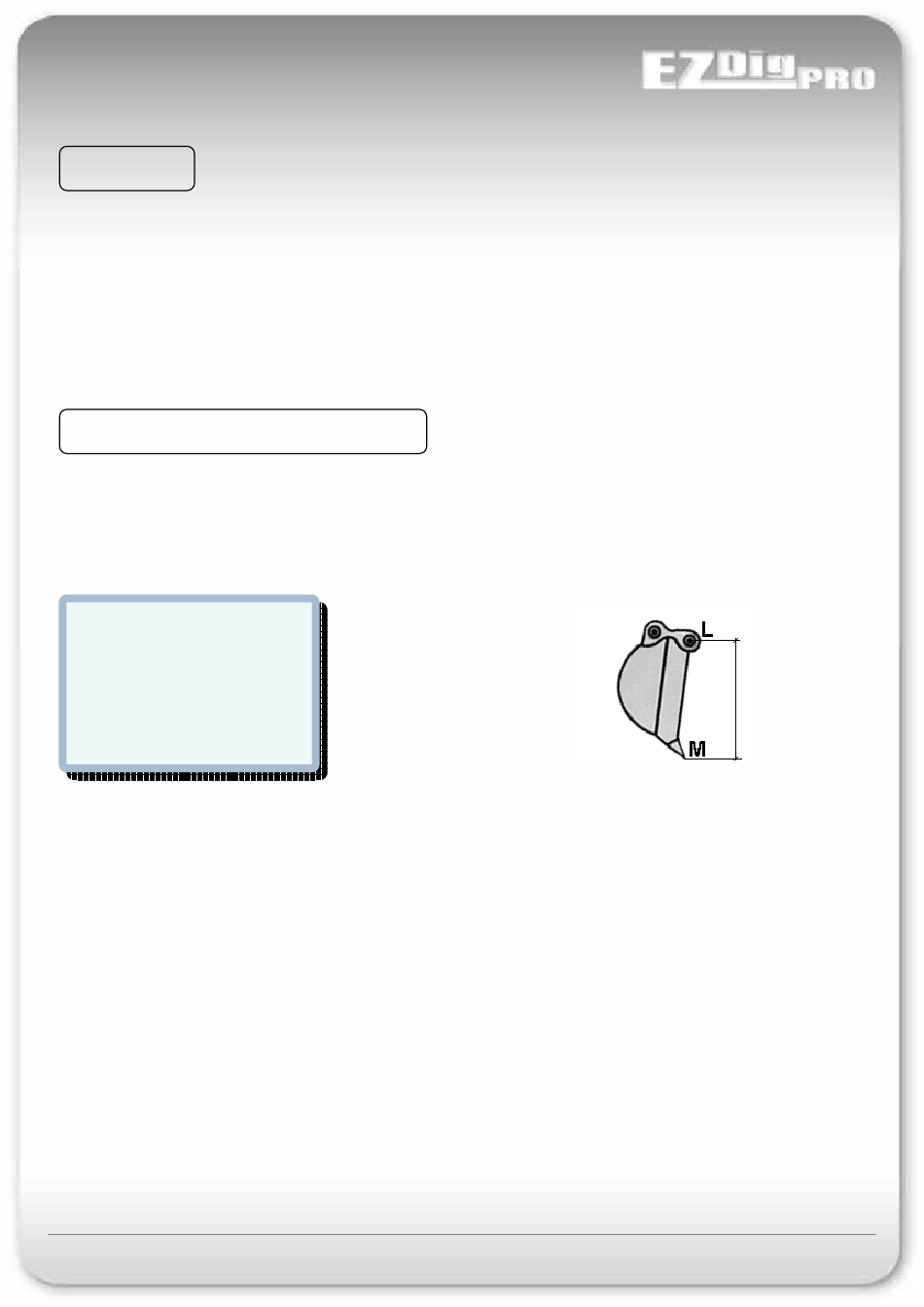

Measure accurately the length of the bucket currently installed from the center of pin (L) to the tip of the tooth (M).
Move the cursor to highlight
BUCKET CALIBRAT.
BUCKET CALIBRAT.
Side
Side
Length
Length
Angle Y
Angle Y
-Offset
-Offset
-Actual
-Actual
EZDigPro
Bucket
Length
and set the exact value expressed in the selected unit of measure.
L
L
