Bucket - Agatec EZDigPro User & Calibration Manual

[manual calibration]

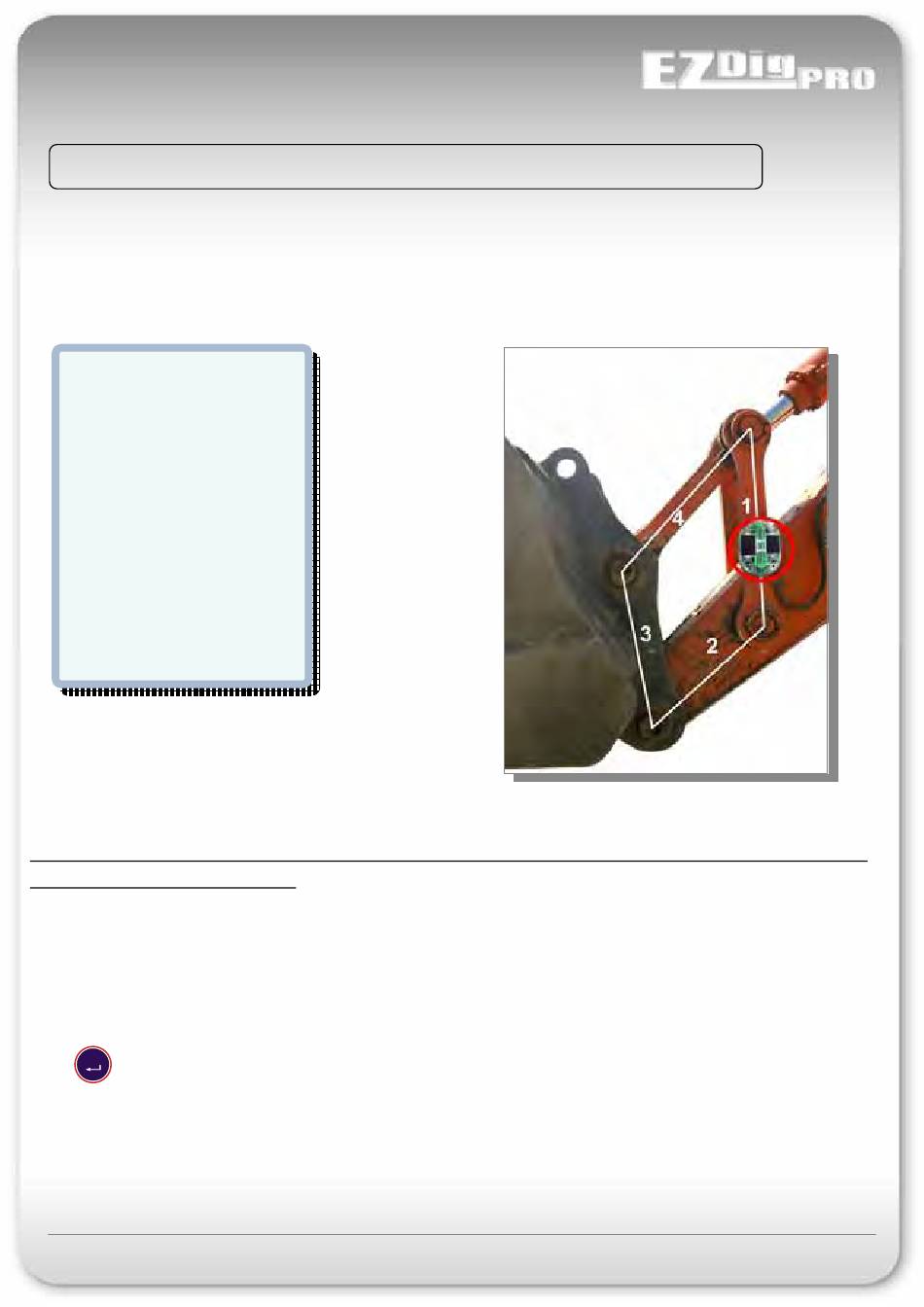

DOG BONE - Bucket Sensor mounted on the Bucket Leverage
Dog Bone calibration must be done before the bucket calibration.
Changing the dog bone calibration means that the bucket calibration has to be done again.
DOG BONE CALIBR.
DOG BONE CALIBR.
DogBone:
DogBone:
Seg1Length 0.000
Seg1Length 0.000
Seg2Length 0.000
Seg2Length 0.000
Seg3Length 0.000
Seg3Length 0.000
Seg4Length 0.000
Seg4Length 0.000
Seg1Angle
Seg1Angle
-Offset
-Offset
-Actual
-Actual
Seg2Angle
Seg2Angle
-Offset
-Offset
-Actual
-Actual
Dog Bone:
0: manual Dog Bone calibration not in use
1: manual Dog Bone calibration in use
Note: If the Dog Bone has been calibrated with automatic calibration (EZCalibration) this value has to be 0! (you will not see
automatic calibration data in this page).
Seg1Length (Seg2Length – Seg3Length – Seg4Length)
Measure the four segments (the bones) of the dog bone and set into the proper line referring to the picture.
Seg1Angle:
Set the real segment 1 angle, use same techniques used to measure machine's booms angles from pivot to pivot.
Press when ready to take the correct offset value.
Enter
Seg2Angle:
Set the real segment 2 angle as done above for segment 1.
EZDigPro
Dog Bone
0
0
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
- 51 - User & Calibration Manual
