[manual calibration] Measuring Tips

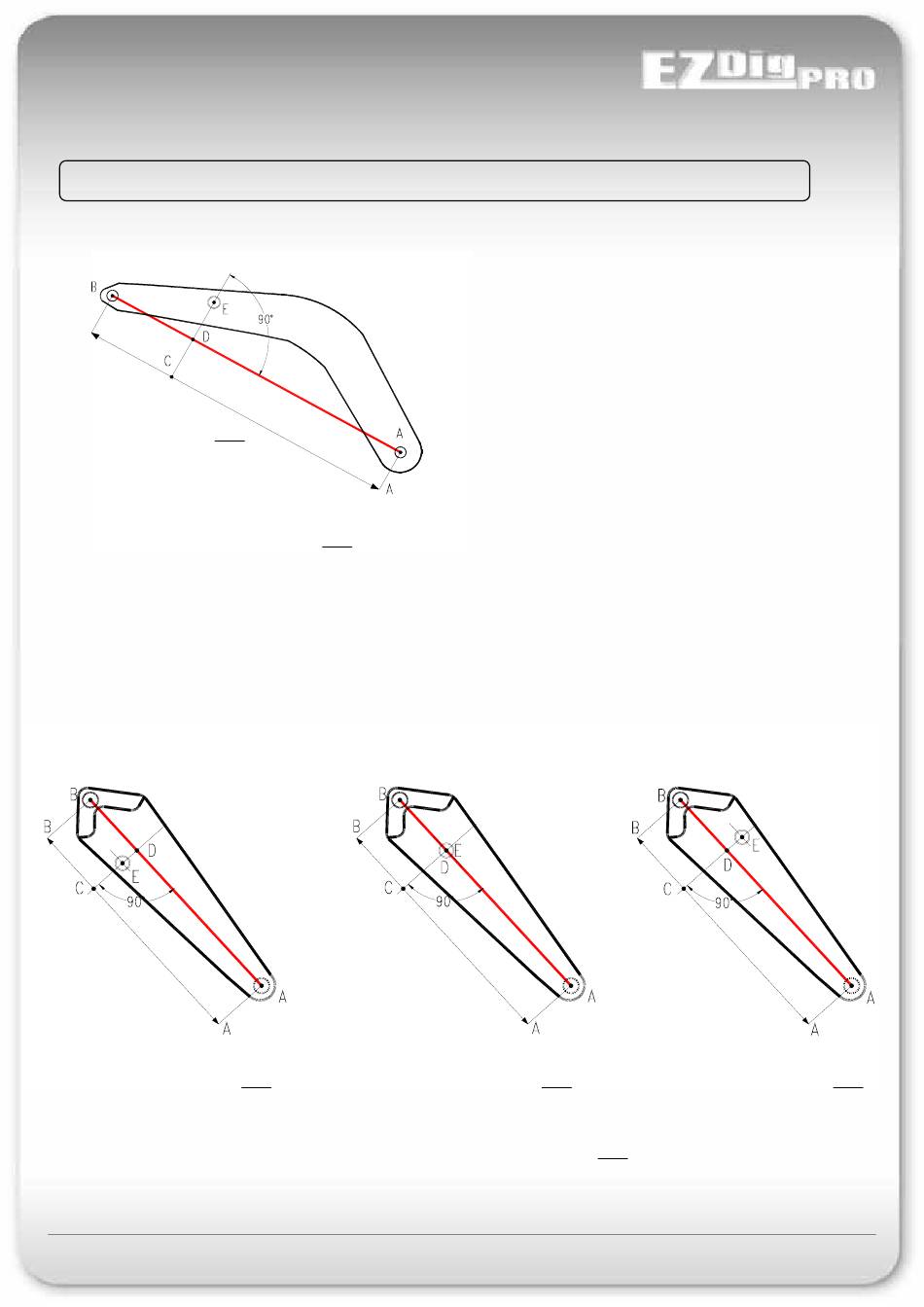

REFERENCE DRAWINGS TO DETERMINE POSITION OF LASER RECEIVER
BOOM 1 (CONVENTIONAL BOOM)
Fig.11
LASER RISE = ED
LASER DISTANCE = AC
BOOM 1 (ARTICULATED BOOM)
Fig.12 Fig.13 Fig.14
LASER RISE = - ED LASER RISE = ED
LASER RISE = ED = 0
LASER DISTANCE = AC
