Laser Receiver Calibration
Calibration:
Calibration:
DogBone
DogBone
Booms/Bucket
Booms/Bucket
Laser
Laser
Laser Height
Laser Height
Take H
Take H
Note: In most cases (except on really big excavators), manually calibrating the laser receiver is faster and more accurate.
(Simply measure the horizontal and vertical distance from the pivot point to the middle of the laser receiver – see page 54
for "Manual calibration - Laser Receiver).

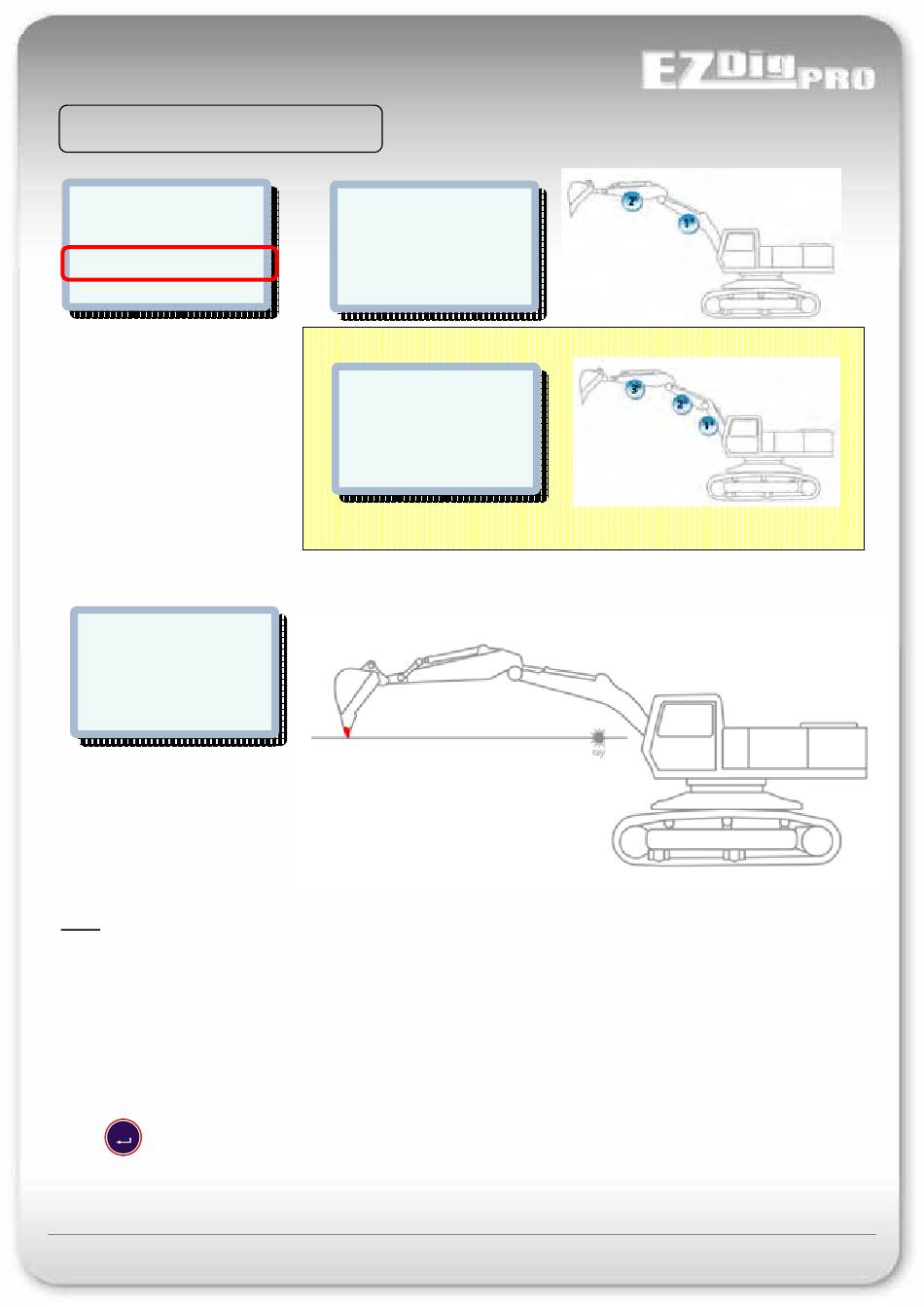

To do it automatically:
Set up a horizontal rotational laser at a height that will allow you to easily pass through it later with the laser receiver.
Accurately position the tip of the center bucket tooth (or the bucket blade tip) in the laser plane.
Use a hand detector to find the correct position if the beam is not visible enough.
Press to take that value. Be careful that the boom doesn't move in the meantime. Best is to keep the machine
Enter
engine at full throttle (full rpm).
EZDigPro

Laser Receiver

Laser mounting
Laser mounting
boom:
boom:
Boom 1
Boom 1
Boom 2
Boom 2
Laser mounting
Laser mounting
boom:
boom:
Boom 1
Boom 1
Boom 2
Boom 2
Boom 3
Boom 3
- 41 - User & Calibration Manual
