3.1.2 Rear Panel

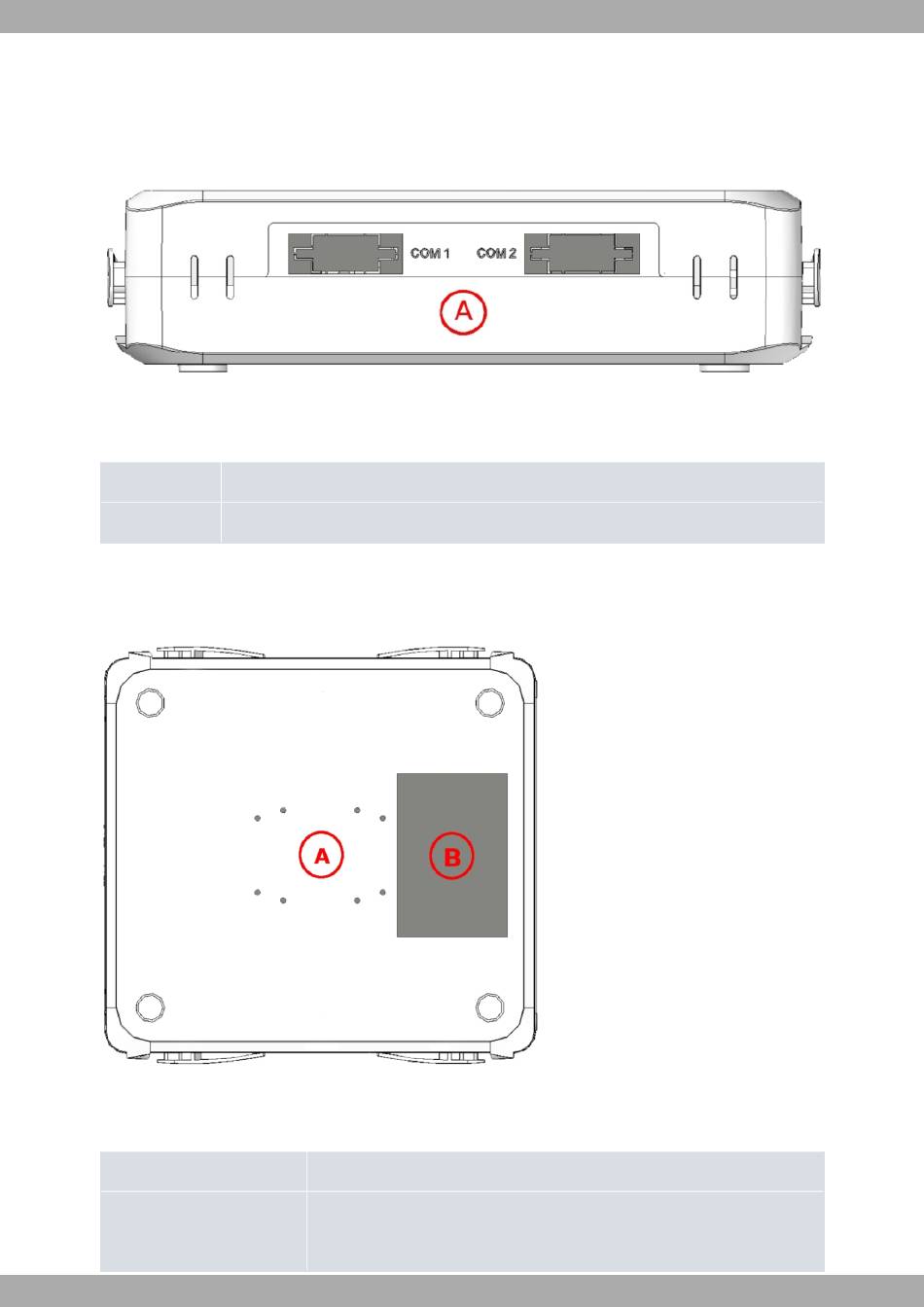

The following figure shows the rear panel. Here you will find the remaining connectors of the Regesta Lite AU
router.
Rear Panel
Fig. 4:
The following table provides information on each connector, as well as a description:
Rear panel elements
Item
A

3.1.3 Underside Panel

The following elements can be found on the underside panel:
Underside Panel
Fig. 5:
The following table contains details on the significant elements on the underside panel.
Underside Panel elements table
Item
A
Regesta Lite AU
Description
COM1, COM2. DCE RS-232 serial ports or RS-485 2-4 wires/RS-422.
Description
Slots for the accessories to attach the device to the DIN rail mount. For further in-
formation on this accessory, please see section
cessory on page 8.
3 Components and Power Supply
Installing a DIN rail mount ac-
