GPS
(Depending on
the model)
Cloud

3.1.2 Rear Panel

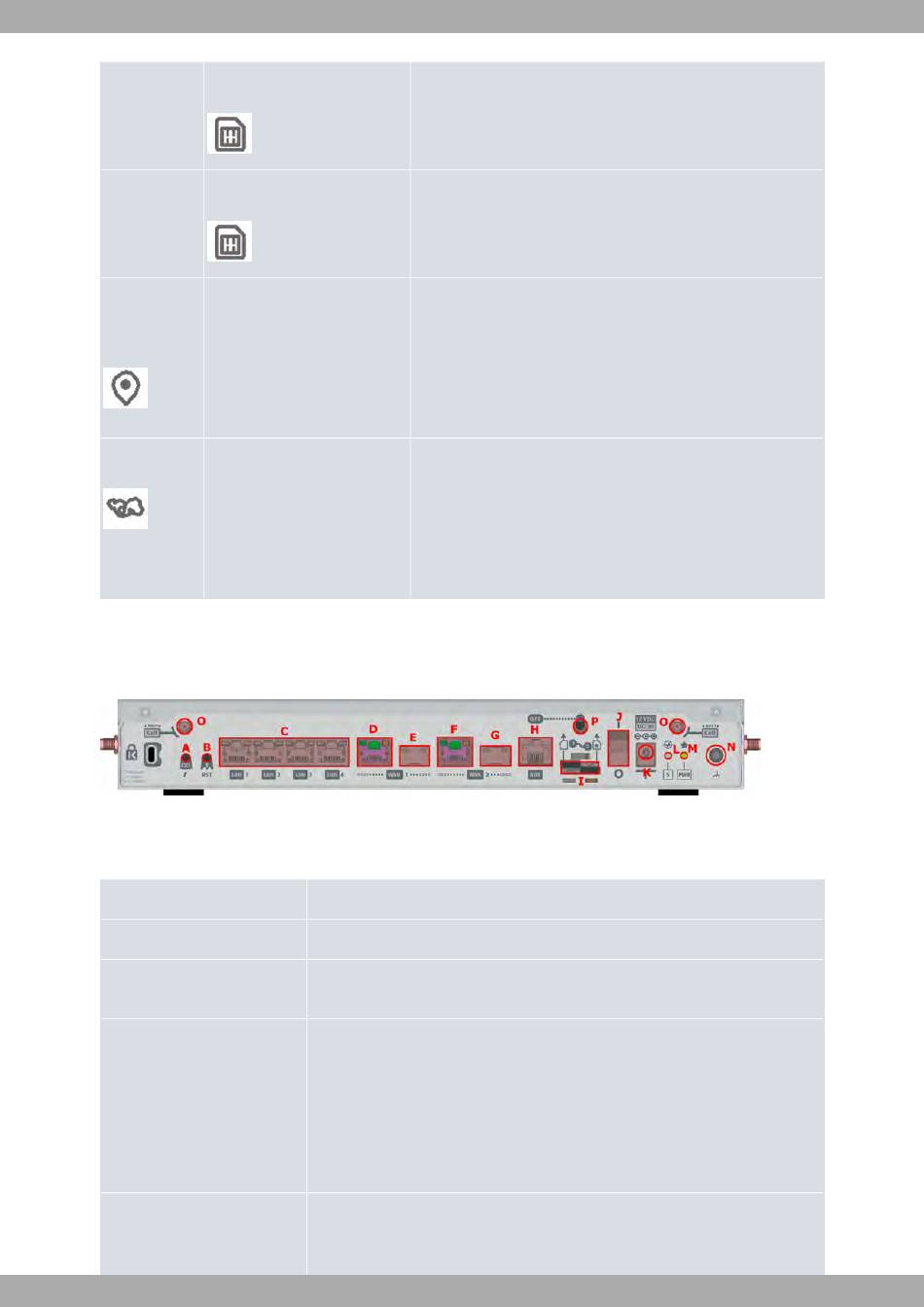

The following figure shows the rear panel. Here you will find the majority of the M8-Smart router connectors.
Rear panel
Fig. 16:
The following table provides information on each connector, as well as a description:
Rear panel elements
Item
A
B
C
D
M8-Smart
SIM-1
SIM-2
GPS Status
Cloud Information
Description
Function.
RST. Reset button. For further information on how the reset button works, please
see RST Button
4-port Gigabit Ethernet switch.
For more information about the LAN interface, refer to:
- 4-port Ethernet switch Connections
- LAN Connector (Switch)
- LAN Interface
Eth WAN-1 Base-T. WAN Gigabit Ethernet.
For more information about the WAN interface, refer to:
Off -> SIM-1 not used.
ON -> SIM-1 in use.
Off -> SIM-2 not used.
ON -> SIM-2 in use.
Off -> GPS not available or not configured.
Green -> GPS coordinates have been acquired. Blinking: NMEA
data.
Amber -> Bad quality (HDOP).
Red -> Error.
Off -> No Cloud configuration.
Green -> Registering /connecting to the Cloud.
Amber -> Connected to the Cloud. Blinking: traffic exchange with
the Cloud controller.
Red -> Cloud registration error.
on page 13.
on page 14
on page 29
on page 31
