2 Components and Power Supply
Blinking amber

2.1.2 Rear panel

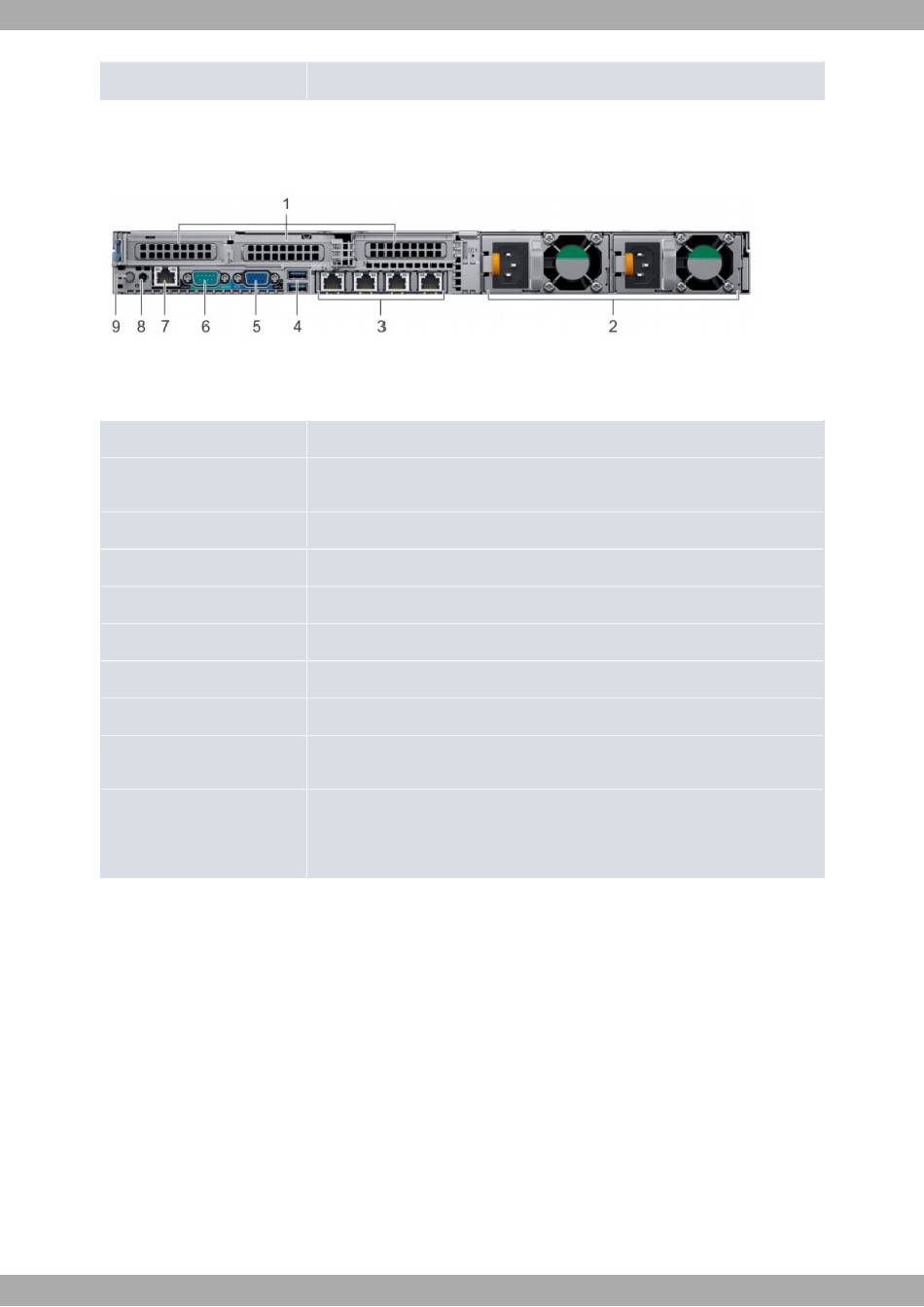

The following figure shows the rear panel.
Rear panel
Fig. 8:
The following table provides information and a description of each component:
Rear panel components
Item
1
2
3
4
5
6
7
8
9

2.2 Installation in a rack

The SDE device can be installed in a 19" rack.

2.2.1 Standalone

An SDE device can be placed as a standalone on a flat, stable surface. The adhesive rubber feet must be stuck to
the underside panel to prevent the router from sliding.
Make sure there is enough space around the router (for ventilation purposes) and check that the electricity cables
can reach it.

2.2.2 Wall mounting

The SDE cannot be wall.mounted.
4
Indicates that the system is in trouble.
Description
PCIe expansion card slot. The expansion slot(s) enable you to connect PCI Ex-
press expansion cards.
Power supply unit (2)
NIC SFP ports (4)
USB 3.0 port (2)
VGA port
Serial port
iDRAC9 dedicated network port
System status indicator cable port. Enables you to connect the status indicator
cable and check the system's status when the CMA is installed.
System identification button. The System Identification (ID) button is available on
the front and at the back. Press the button to identify a system in a rack by turning
on the system ID button. You can also use the system ID button to reset iDRAC
and to access BIOS using the step through mode.
