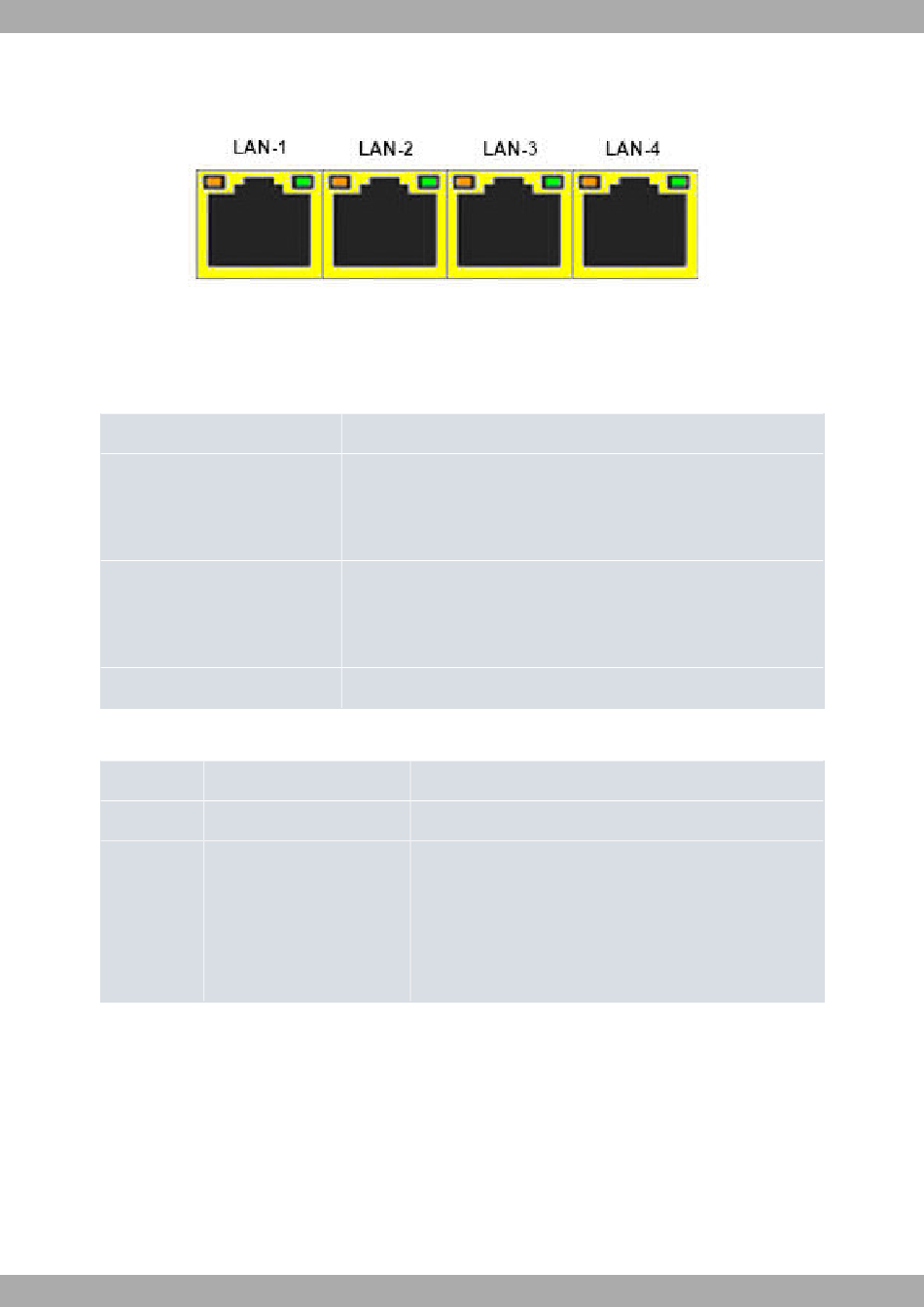

Switch LEDs
Fig. 6:
Switch LED indicators
LED
Yellow
Yellow + Green
None
Additionally, the Teldat M2 router family is equipped with a pair of status LEDs:
LEDs
LED
PWR
WLAN

3.1.2 Rear panel

The following elements are present on the rear panel:
Teldat M2/M2L
Description
Connected to 10/100 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
Connected to 1000 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
The interface is either unavailable, not installed or not registered.
Status
Monochrome green
Tricolor
Description
Green -> Device powered.
Green -> Some client connected and registered in one of two ra-
dios. Blinking: Transferring data.
Amber -> Interface enabled.
Red -> Interface down.
Off -> Interface off or disabled.
