Teldat S.A.
LEDs
LED
PWR
LAN1 / LAN2
W
SIM

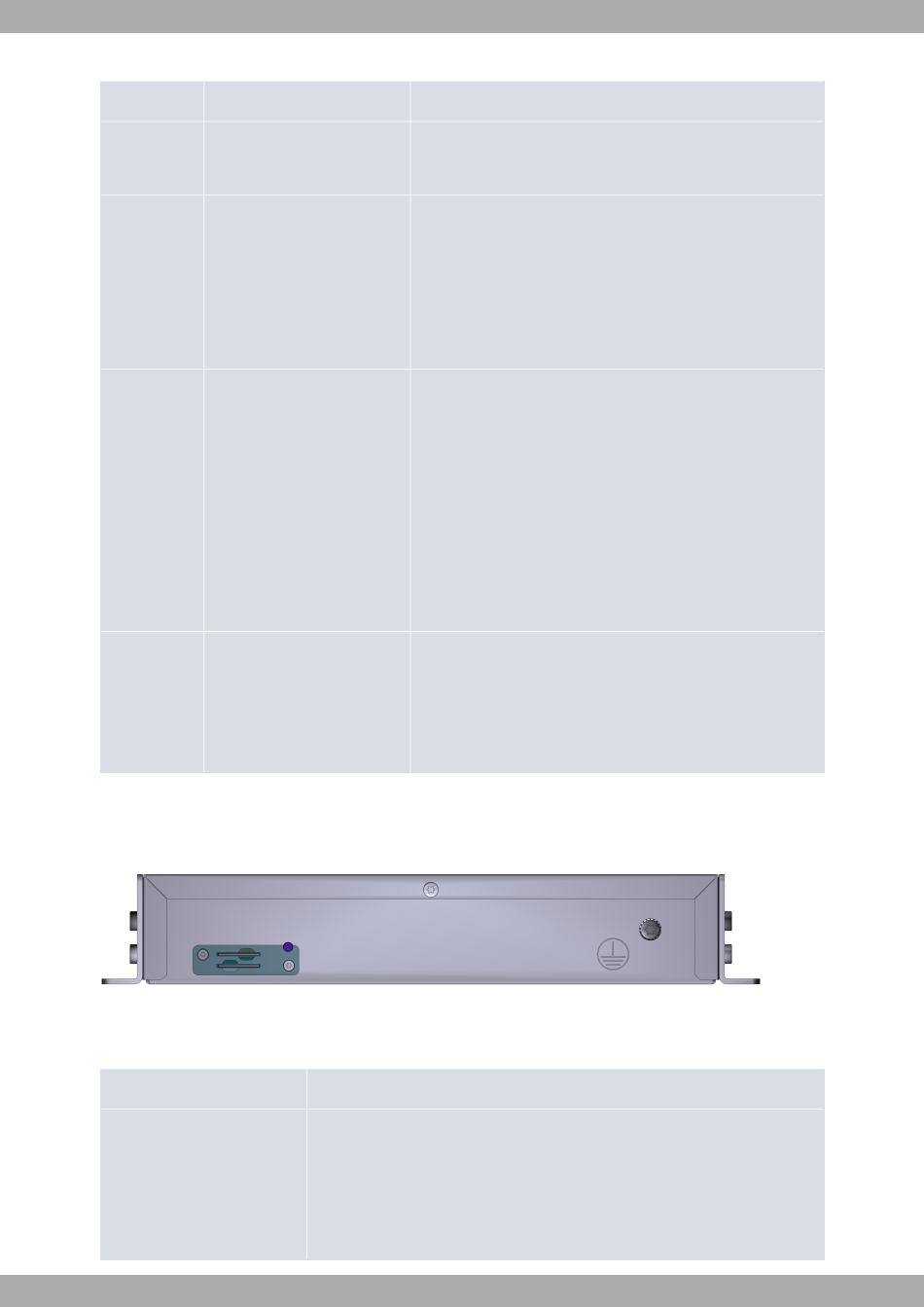

3.1.2 Rear panel
The following figure shows the front panel. Here you will find the Teldat 5Ge-Rail SIM card slots.
Rear Panel
Fig. 3:
The following table provides information on each connector, as well as a description:
Rear panel elements
Item
SIM1, SIM2
Teldat 5Ge-Rail Router
Status
Tricolor
Tricolor
Tricolor
Tricolor
Description
SIM Card 1-2. Slot where you can insert the SIM cards.
• SIM1: Upper Slot
• SIM2: Lower Slot
Refer to
Installing the SIM Card
tion.
Description
Green -> Device powered.
Red -> Heater active.
Green -> Link has been established.
Blinking: connection data activity.
Amber -> Test in progress.
Red -> Disconnected.
Off -> Interface off.
Off -> System stopped.
Red -> Interface is unavailable because it is installing, disabled
(shutdown), or due to an auto-test failure.
Amber -> Idle:
• Rapid blinking. The device has not registered in the network, or
the quality is insufficient.
• Slow blinking. WCDMA connection.
• Steady. LTE/5G connection.
Green -> Connected. Blinking: connection data activity.
Off -> System stopped.
Red -> No SIM Selected.
Amber -> SIM2 Selected.
Green -> SIM1 Selected.
on page 16 for more information on SIM installa-
3 Components and Power Supply
7
