3 Components and Power Supply

3.1.2 Rear panel

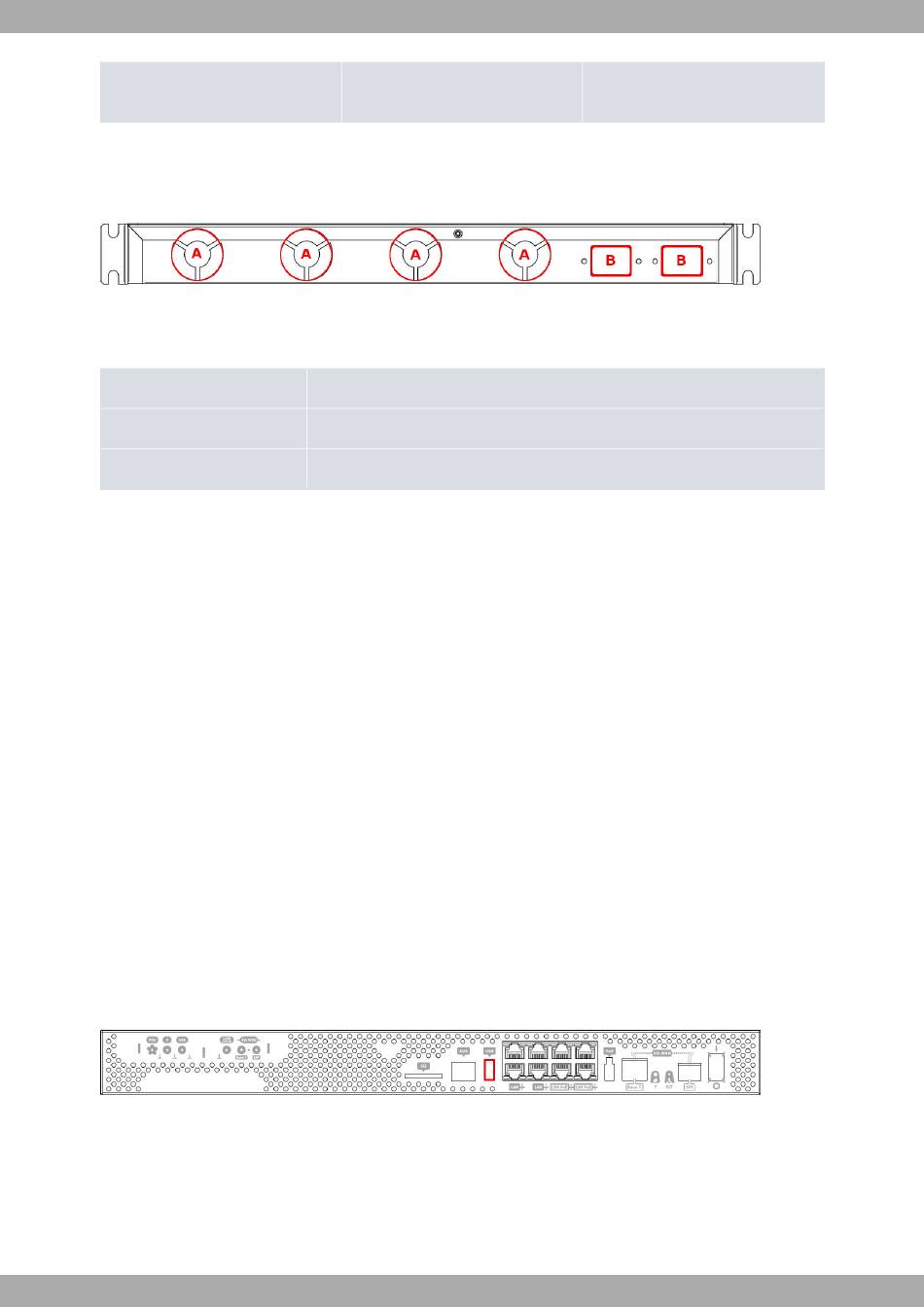

The following figure shows the rear panel.
Rear panel
Fig. 3:
The following table provides information on each component, as well as a description:
Rear panel components
Item
A
B

3.2 Installation in a rack

The Teldat iM8-Cx device can be installed in a 19" rack.

3.2.1 Standalone

Teldat iM8-Cx devices can be placed as standalones on a flat, stable surface. The adhesive rubber feet must be
stuck to the underside panel to prevent the router from sliding.
Make sure there is enough space around the router (for ventilation purposes) and check that the electricity cables
can reach it.

3.2.2 Wall mounting

The Teldat iM8-Cx family cannot be mounted on the wall.

3.3 Plug-in modules

The only module that can be inserted in the device is a USB.

3.3.1 Installation

Simply insert the USB in the appropriate slot on the rear panel, as shown in the following figure:
USB modem insertion slot
Fig. 4:

3.3.2 Uninstall

To remove the device, simply pull it out from the slot where it was inserted.
6
Description
Ventilation slots.
Power cable connection.
Green -> Link detected. Blinking: con-
nection data activity.
