Receiving The Frequency Converter; Transportation And Unpacking; Lifting - Danfoss VLT HVAC Drive FC 102 Operating Instructions Manual

Mechanical Installation
•
If the frequency converter is without built-in
fuses, ensure that the external fuses are rated
correctly.

3.2.2 Receiving the Frequency Converter

When receiving the frequency converter, make sure that
the packaging is intact. Also be aware of any damage that
might have occurred to the unit during transport. In case
damage has occurred, immediately contact the shipping
company to claim the damage.

3.2.3 Transportation and Unpacking

Before unpacking the frequency converter, place the unit
as close as possible to the final installation site.
Remove the box and handle the frequency converter on
the pallet, as long as possible.

3.2.4 Lifting

Always lift the frequency converter in the dedicated lifting
eyes. For all E2 (IP00) enclosures, use a bar to avoid
bending the lifting holes of the frequency converter.

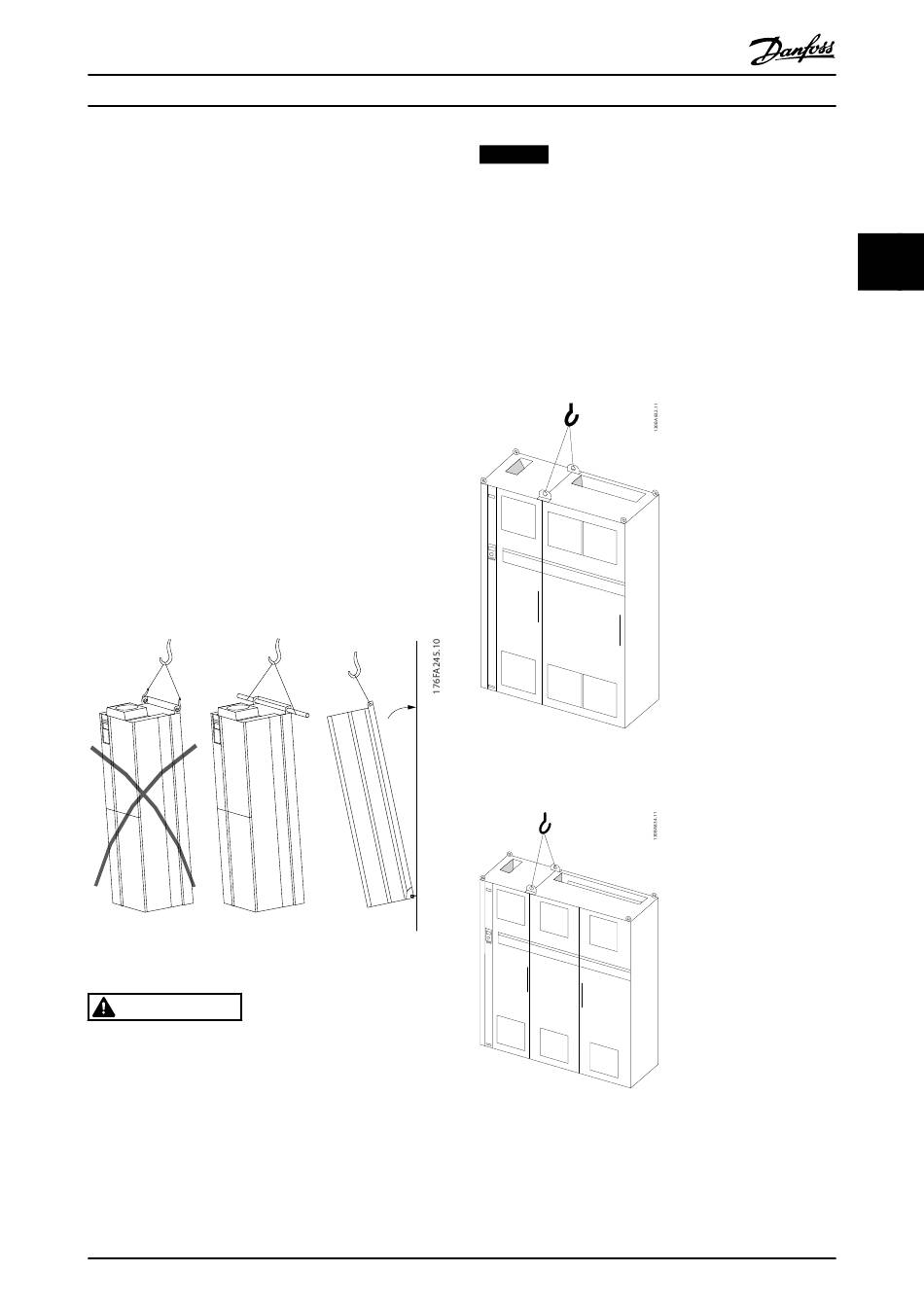

Illustration 3.2 Recommended Lifting Method, Enclosure Size E
WARNING
The lifting bar must be able to handle the weight of the
frequency converter. See Table 3.3 for the weight of the
different enclosure sizes. Maximum diameter for bar is
2.5 cm (1 inch). The angle from the top of the frequency
converter to the lifting cable should be ≥60°.
MG11F502
Operating Instructions
NOTICE
The plinth is provided in the same packaging as the
frequency converter but is not attached to enclosure
sizes F1-F4 during shipment. The plinth must allow
airflow to the frequency converter to provide proper
cooling. The F enclosures should be positioned on top of
the plinth in the final installation location. The angle
from the top of the frequency converter to the lifting
cable should be ≥60°.
In addition to the lifting methods shown (Illustration 3.3
to Illustration 3.9), a spreader bar is an acceptable way to
lift the F enclosures.
Illustration 3.3 Recommended Lifting Method, Enclosure Size
F1 (460 V, 600 to 900 hp, 575/690 V, 900 to 1150 hp)
Illustration 3.4 Recommended Lifting Method, Enclosure Size
F2 (460 V, 1000 to 1200 hp, 575/690 V, 1250 to 1350 hp)
