Mechanical Installation
3
3

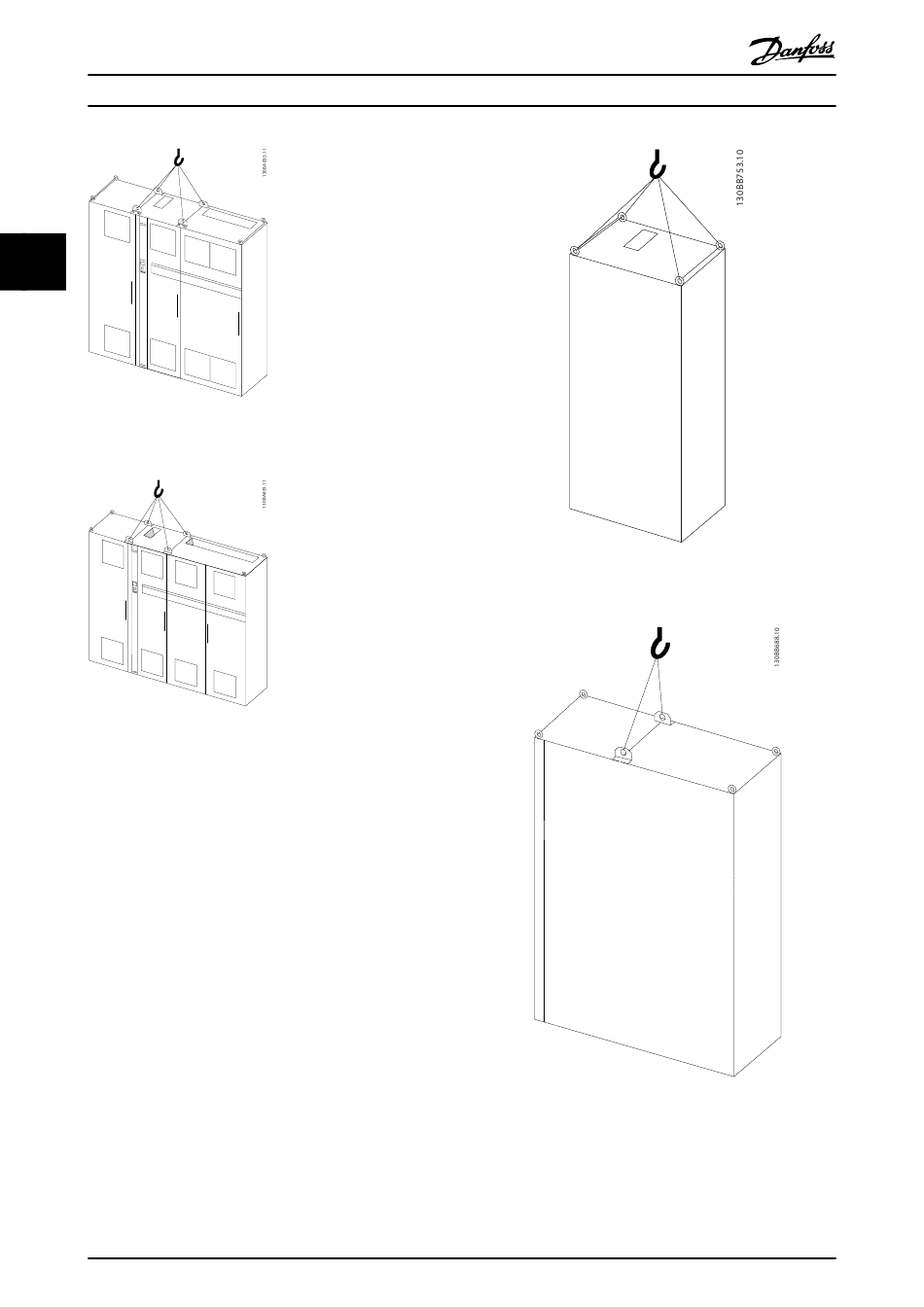

Illustration 3.5 Recommended Lifting Method, Enclosure Size
F3 (460 V, 600 to 900 hp, 575/690 V, 900 to 1150 hp)
Illustration 3.6 Recommended Lifting Method, Enclosure Size
F4 (460 V, 1000 to 1200 hp, 575/690 V, 1250 to 1350 hp)
10
Operating Instructions
Illustration 3.7 Recommended Lifting Method, Enclosure Type
F8
Illustration 3.8 Recommended Lifting Method, Enclosure Size
F9/F10
Danfoss A/S © 08/2014 All rights reserved.
MG11F502
