Mechanical Installation

3 Mechanical Installation

3.1 Pre-installation

3.1.1 Planning the Installation Site

NOTICE
Plan the installation of the frequency converter before
commencing the installation. Neglecting this may result
in extra work during and after installation.
Select the best possible operation site by considering
the following (see details on the following pages, and
the respective Design Guides):
•
Ambient operating temperature
•
Installation method
•
How to cool the unit
•
Position of the frequency converter
•
Cable routing
•
Ensure that the power source supplies the correct
voltage and necessary current.
•
Ensure that the motor current rating is within the
maximum current from the frequency converter.
•
If the frequency converter is without built-in
fuses, ensure that the external fuses are rated
correctly.

3.1.1.1 Inspection on Receipt

After receiving the delivery, immediately check whether
the scope of delivery matches the shipping documents.
Danfoss does not honour claims for faults registered at a
later time. Register a complaint immediately:
•
With the carrier in case of visible transport
damage.
•
With the responsible Danfoss representative in
case of visible defects or incomplete delivery.

3.1.2 Receiving the Frequency Converter

When receiving the frequency converter, make sure that
the packaging is intact, and be aware of any damage that
might have occurred to the unit during transport. In case
damage has occurred, immediately contact the shipping
company to claim the damage.

3.1.3 Transportation and Unpacking

Locate the frequency converter as close as possible to the
final installation site before unpacking.
Remove the box and handle the frequency converter on
the pallet, as long as possible.
MG20Y202
Operating Instructions

3.1.4 Lifting

Always lift the frequency converter via the dedicated lifting
eyes.

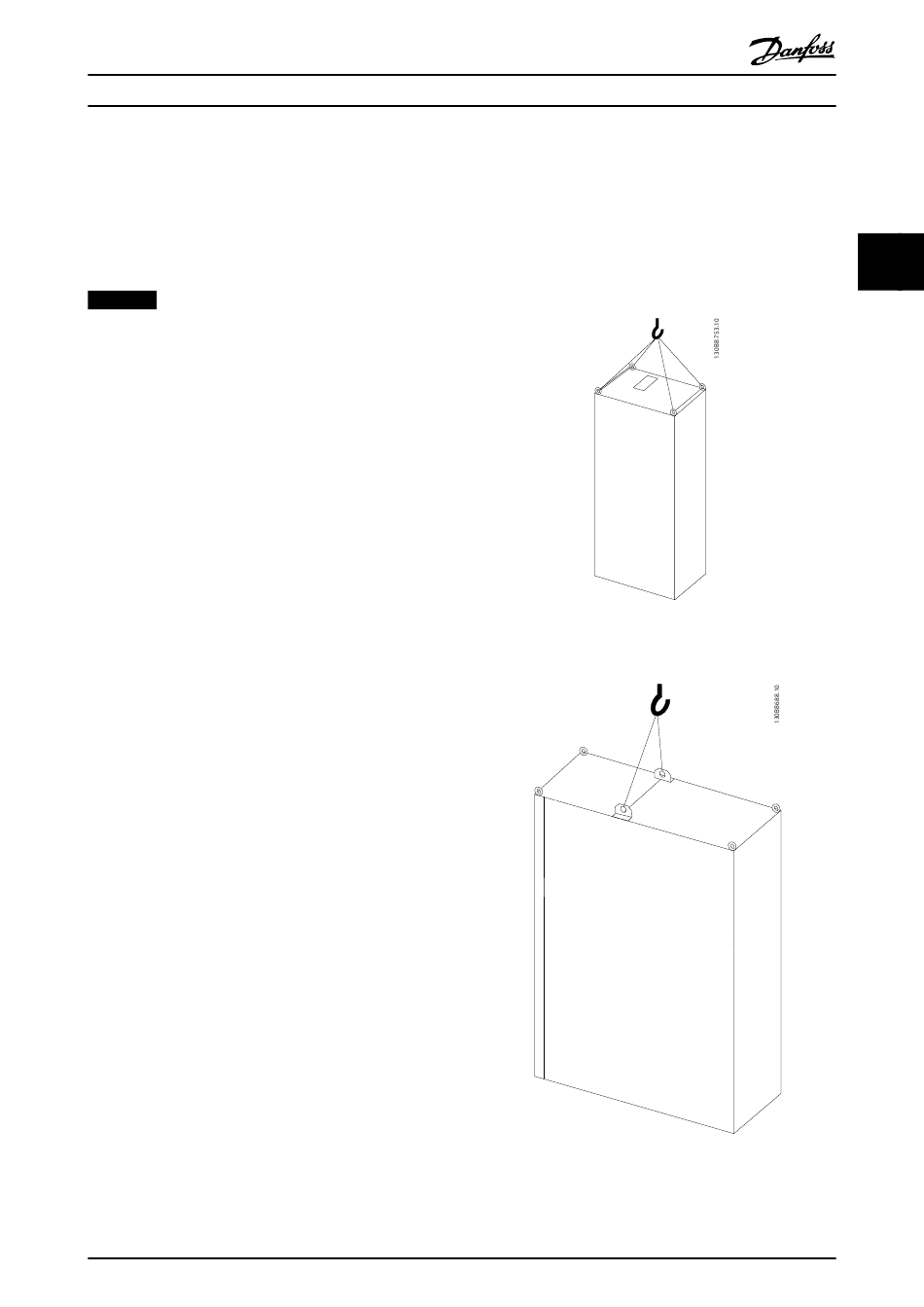

Illustration 3.1 Recommended Lifting Method, Enclosure Size
F8.
Illustration 3.2 Recommended Lifting Method, Enclosure Size
F9/F10.
