3.2.2 Receiving the Frequency Converter

When receiving the frequency converter, make sure that
the packaging is intact, and be aware of any damage that
might have occurred to the unit during transport. In case
3 3 damage has occurred, contact immediately the shipping
company to claim the damage.

3.2.3 Transportation and Unpacking

Before unpacking the frequency converter it is
recommended that it is located as close as possible to the
final installation site.
Remove the box and handle the frequency converter on
the pallet, as long as possible.

3.2.4 Lifting

Always lift the frequency converter in the dedicated lifting
eyes. For all D and E2 (IP00) enclosures, use a bar to avoid
bending the lifting holes of the frequency converter.

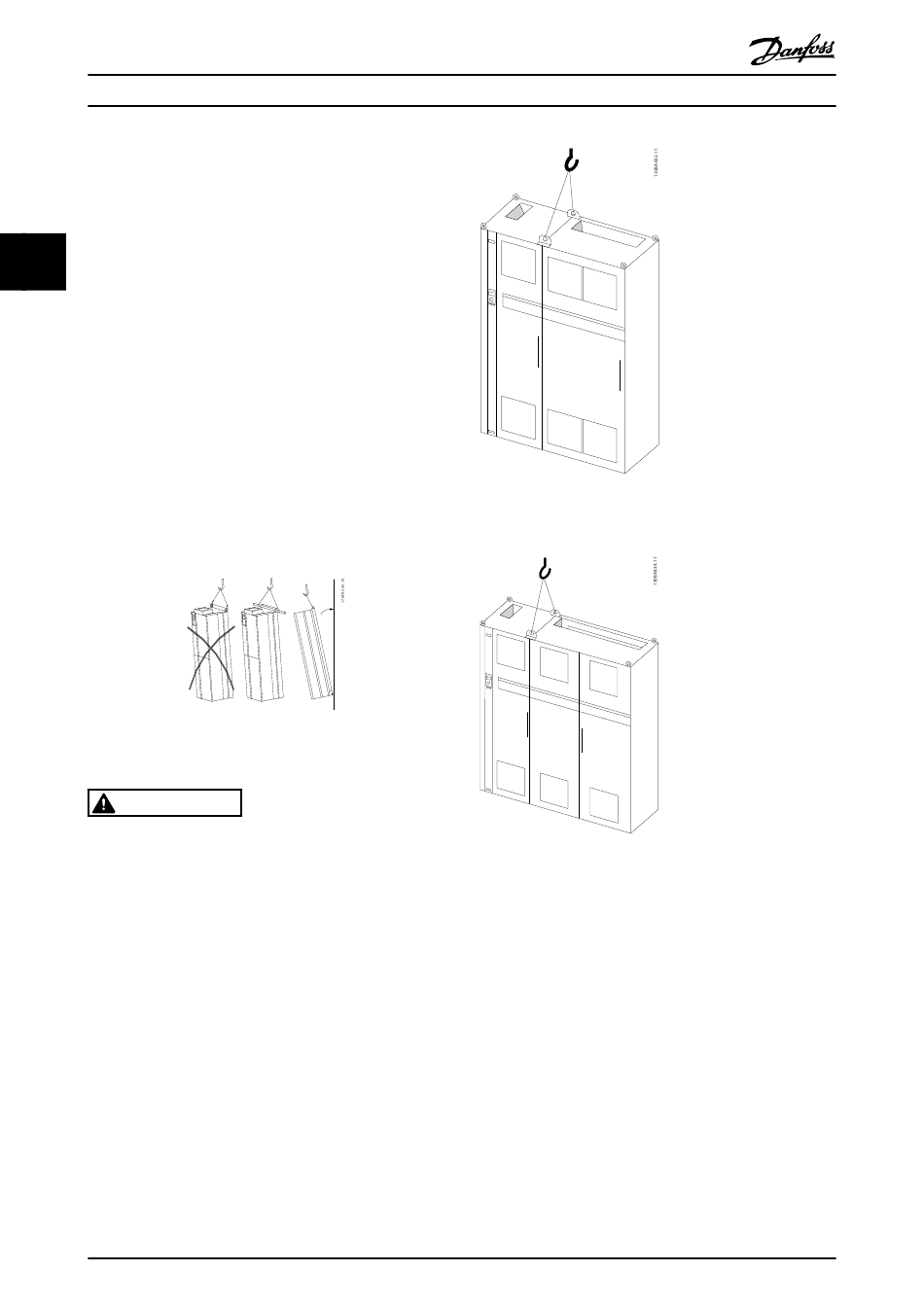

Illustration 3.2 Recommended Lifting Method, Enclosure Types
D and E
WARNING
The lifting bar must be able to handle the weight of the
frequency converter. See Mechanical Dimensions for the
weight of the different enclosure type. Maximum
diameter for bar is 2.5 cm (1 inch). The angle from the
top of the frequency converter to the lifting cable should
be 60° or greater.
10
VLT AQUA Drive FC 202 Operation Instructions
Illustration 3.3 Recommended Lifting Method, Enclsoure Type
F1 (460 V, 600 to 900 HP, 575/690 V, 900 to 1150 HP)
Illustration 3.4 Recommended Lifting Method, Enclosure Type
F2 (460 V, 1000 to 1200 HP, 575/690 V, 1250 to 1350 HP)
