Mechanical Installation
NOTICE
Power connections can be made to positions A or B.
Enclosure
size
3 3
250/315 kW (400 V) and 355/450-500/630
E2
Table 3.6 Dimensions for Disconnect Terminal

3.3.4 Terminal Locations - Enclosure type F

NOTICE
The F enclosures are available in 4 different sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on the
right and rectifier cabinet on the left. The F3 and F4 have an extra options cabinet left of the rectifier cabinet. The F3 is
an F1 with an extra options cabinet. The F4 is an F2 with an extra options cabinet.
Terminal locations - enclosure types F1 and F3
1 Ground bar
2 Motor terminals
3 Brake terminals

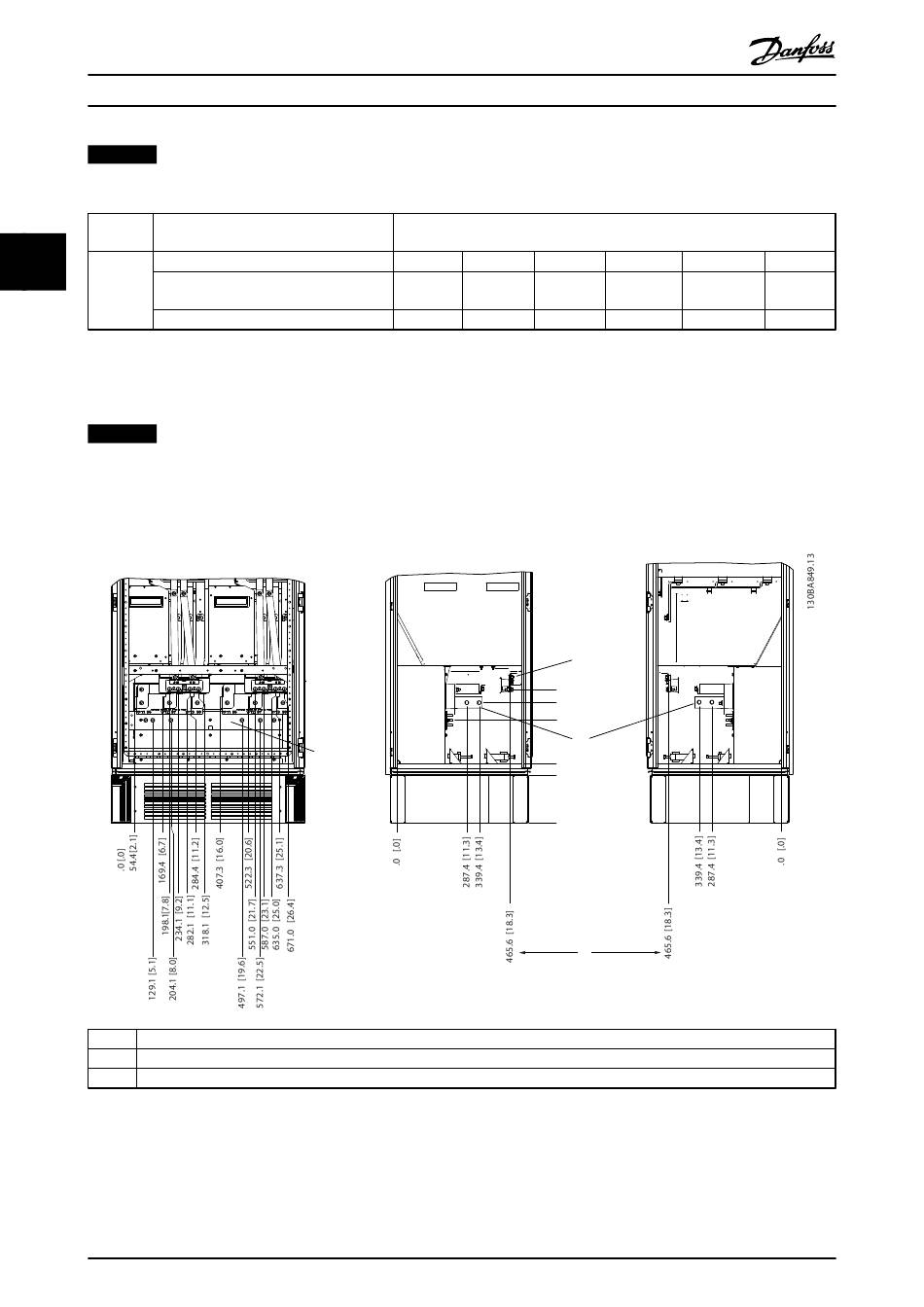

Illustration 3.24 Terminal Locations - Inverter Cabinet - F1 and F3 (Front, Left and Right Side View). The Gland Plate is 42 mm
below .0 Level.
22
Operating Instructions
Unit type
IP00/CHASSIS
kW (690 V)
315/355-400/450 kW (400 V)
1
6
Danfoss A/S © 08/2014 All rights reserved.
Dimensions [mm]/(inch)
A B C
396 (15.6) 268 (10.6) 333 (13.1)
408 (16.1) 239 (9.4) 319 (12.5)
2
308.3 [12.1]
253.1 [10.0]
180.3 [7.1]
.0 [.0]
44.40 [1.75]
244.40 [9.62]
D E
398 (15.7) 221 (8.7)
399 (15.7) 113 (4.4)
3
4
5
4
F
N/A
153 (6.0)
MG11F502
