How to Programme
6-00 Live Zero Timeout Time
Range:
Function:
10 s
[1 -
Enter the live zero timeout time period. Live zero
*
99 s]
timeout time is active for analog inputs, that is,
terminal 53 or terminal 54, used as reference or
feedback sources. If the reference signal value
associated with the selected current input drops
below 50% of the value set in
parameter 6-10 Terminal 53 Low Voltage,
6-12 Terminal 53 Low Current,
parameter 6-20 Terminal 54 Low Voltage or
6-22 Terminal 54 Low Current for a time period
longer than the time set in parameter 6-00 Live
Zero Timeout Time, the function selected in
parameter 6-01 Live Zero Timeout Function is
activated.
6-01 Live Zero Timeout Function
Option:
Function:
Select the time out function. The function set
in parameter 6-01 Live Zero Timeout Function is
activated if the input signal on terminal 53 or
54 is below 50% of the value in
parameter 6-10 Terminal 53 Low Voltage,
6-12 Terminal 53 Low Current,
parameter 6-20 Terminal 54 Low Voltage or
6-22 Terminal 54 Low Current for a time period
defined in parameter 6-00 Live Zero Timeout
Time. If several time outs occur simultaneously,
the frequency converter prioritises the time
out functions as follows
1.
Parameter 6-01 Live Zero Timeout
Function
2.
8-04 Control Timeout Function
The output frequency of the frequency
converter can be:
•
[1] frozen at the present value
•
[2] overruled to stop
•
[3] overruled to jog speed
•
[4] overruled to max. speed
•
[5] overruled to stop with subsequent
trip
[0]
Off
*
[1]
Freeze
output
[2]
Stop
[3]
Jogging
[4]
Max. speed
[5]
Stop and
trip
MG11F502
Operating Instructions
Par 6-xx
High Ref./
Feedb. Value'
Par 6-xx
Low Ref./
Feedb. Value'

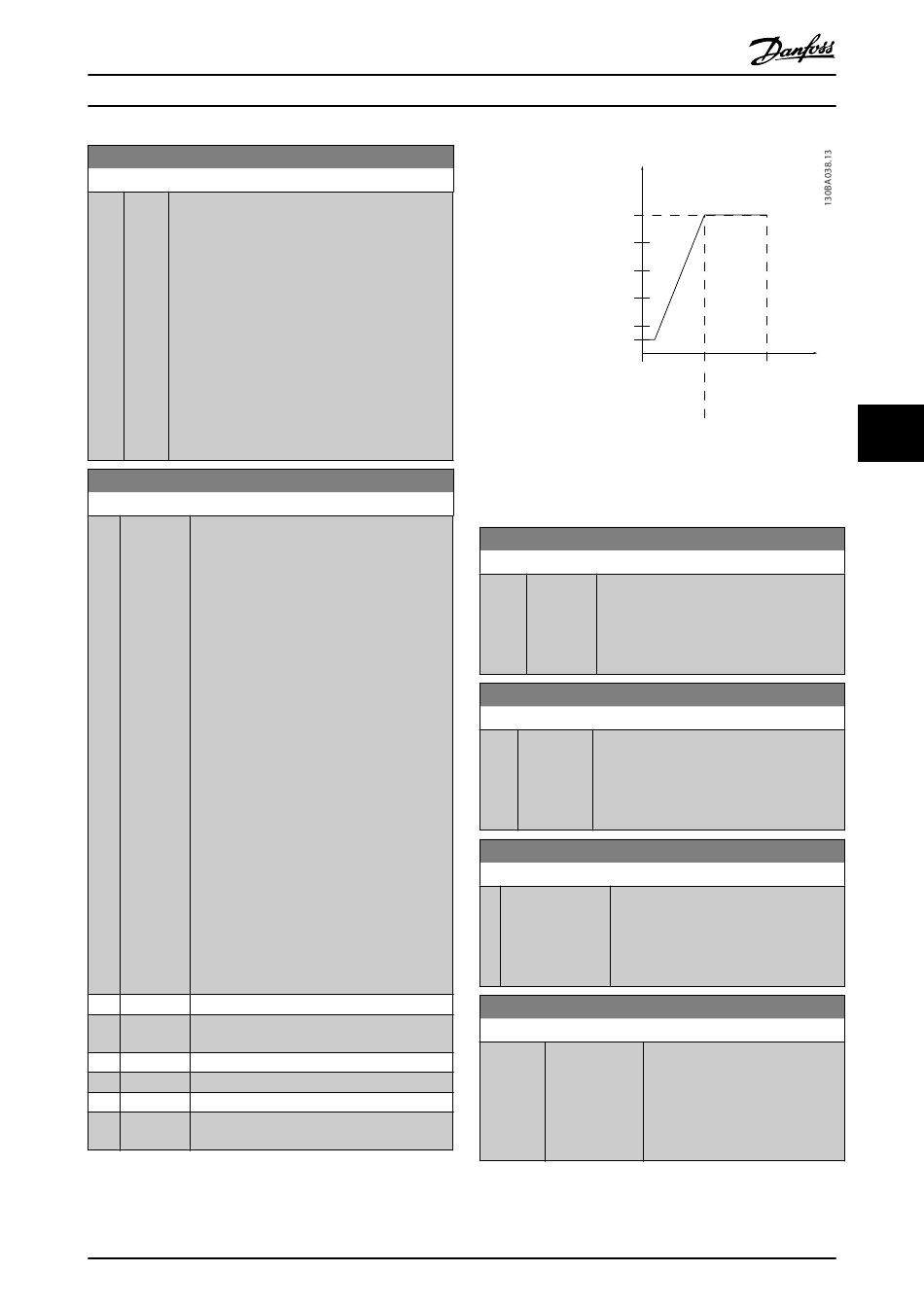

Illustration 6.12 Live Zero Conditions
6-10 Terminal 53 Low Voltage
Range:
0.07 V
*
6-11 Terminal 53 High Voltage
Range:
10 V
*
- 10 V]
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
0
[-999999.999 -
*
999999.999 ]
6-15 Terminal 53 High Ref./Feedb. Value
Range:
Size
related
*
Danfoss A/S © 08/2014 All rights reserved.
Ref./Feedback
[RPM]
1500
1200
900
600
300
150
1 V
5 V
Par 6-xx
'Low Voltage'or
'Low Current'
Par 6-xx
'High Voltage'or
'High Current'
Function:
[ 0 - par.
Enter the low-voltage value. This analog
6-11 V]
input scaling value should correspond to
the low reference/feedback value set in
parameter 6-14 Terminal 53 Low Ref./Feedb.
Value.
Function:
[ par. 6-10
Enter the high-voltage value. This analog
input scaling value should correspond to the
high reference/feedback value set in
parameter 6-15 Terminal 53 High Ref./Feedb.
Value.
Function:
Enter the analog input scaling value that
corresponds to the low voltage/low
current set in parameter 6-10 Terminal 53
Low Voltage and 6-12 Terminal 53 Low
Current.
Function:
[-999999.999 -
Enter the analog input scaling
999999.999 ]
value that corresponds to the high
voltage/high current value set in
parameter 6-11 Terminal 53 High
Voltage and 6-13 Terminal 53 High
Current.
10 V
[V]
Analog input
6
6
89
