Electrical Installation
4 4
1) External temperature monitoring
2) AUX relay
01 02
04 05
3) NAMUR
4) AUX fan
100 101 102 103
L1 L2
5) Brake
-R +R
81 82

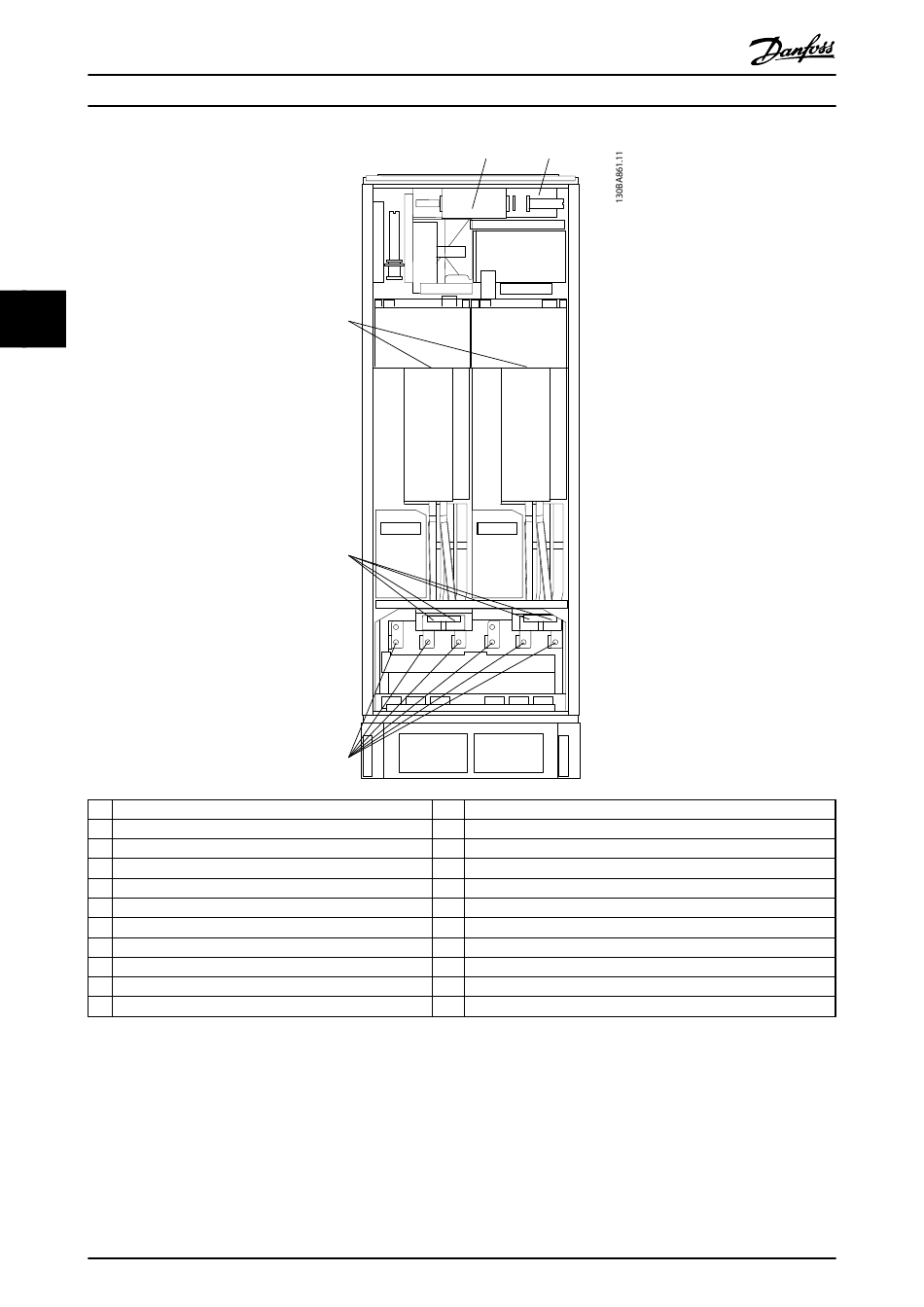

Illustration 4.7 Inverter Cabinet, Enclosure Types F1 and F3
40
Operating Instructions
4, 8, 9
5
6
03
06
L1 L2
Danfoss A/S © 08/2014 All rights reserved.
1 2
6) Motor
U V W
96 97 98
T1 T2 T3
7) NAMUR fuse (see Table 4.23 for part numbers)
8) Fan fuses (See Table 4.19 for part numbers)
9) SMPS fuses (See Table 4.18 for part numbers)
MG11F502
