Mechanical Installation
F
E

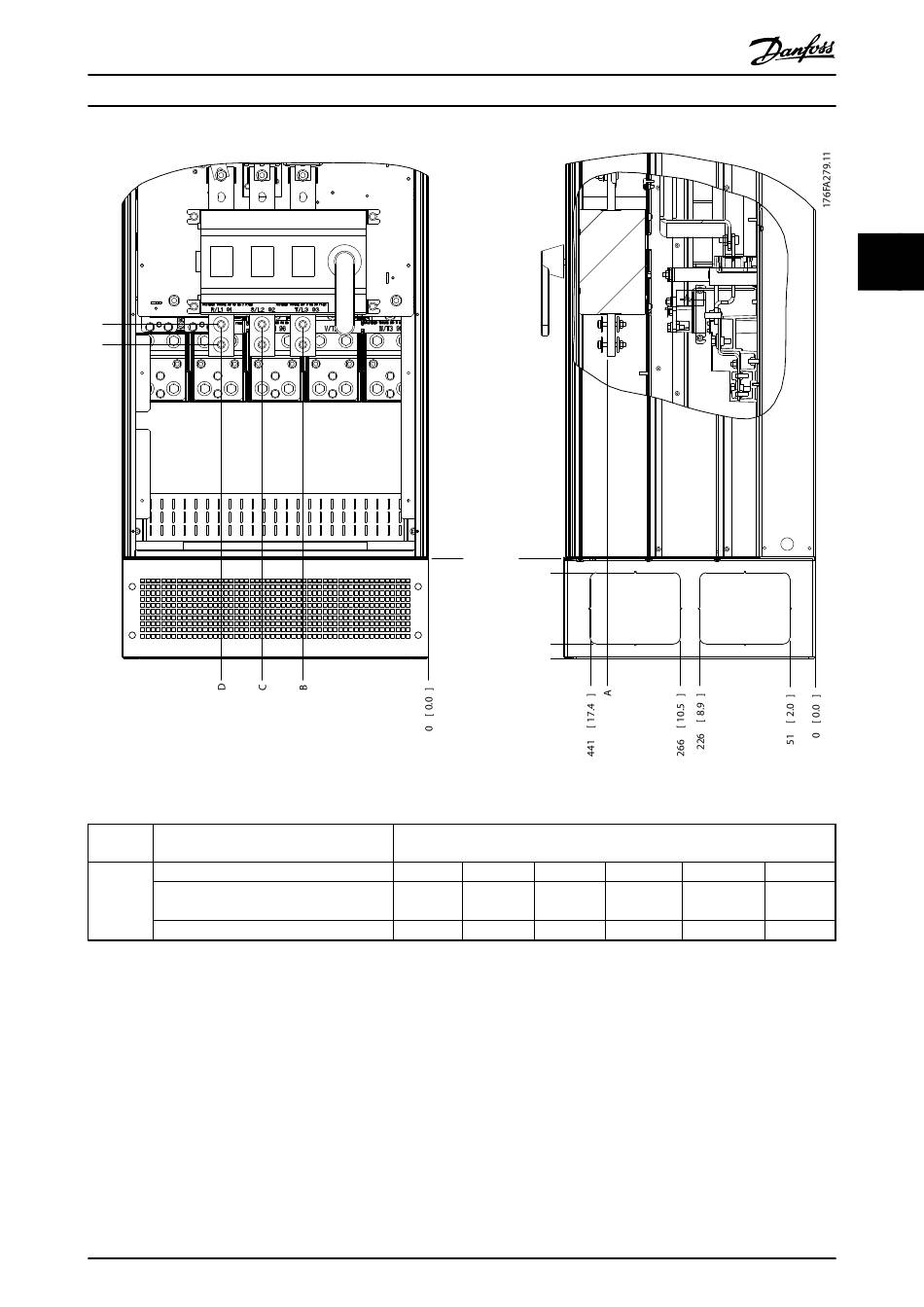

Illustration 3.19 IP21 (NEMA Type 1) and IP54 (NEMA Type 12) Enclosure Power Connection Position of Disconnect Switch
Enclosure
Unit type
size
IP54/IP21 UL and NEMA1/NEMA12
250/315 kW (400 V) and 355/450-500/630
E1
kW (690 V)
315/355-400/450 kW (400 V)
Table 3.5 Dimensions for Disconnect Terminal
MG11F502
Operating Instructions
0 [ 0.0 ]
28 [ 1.1
167 [ 6.6
195 [ 7.7
396 (15.6) 267 (10.5)
408 (16.1) 246 (9.7)
