Electrical Installation
NOTICE
When changing the function of S201, S202, or S801, do
not to use force during the switch over. Remove the LCP
fixture (cradle) when operating the switches. Do not
operate the switches when the frequency converter is
powered.

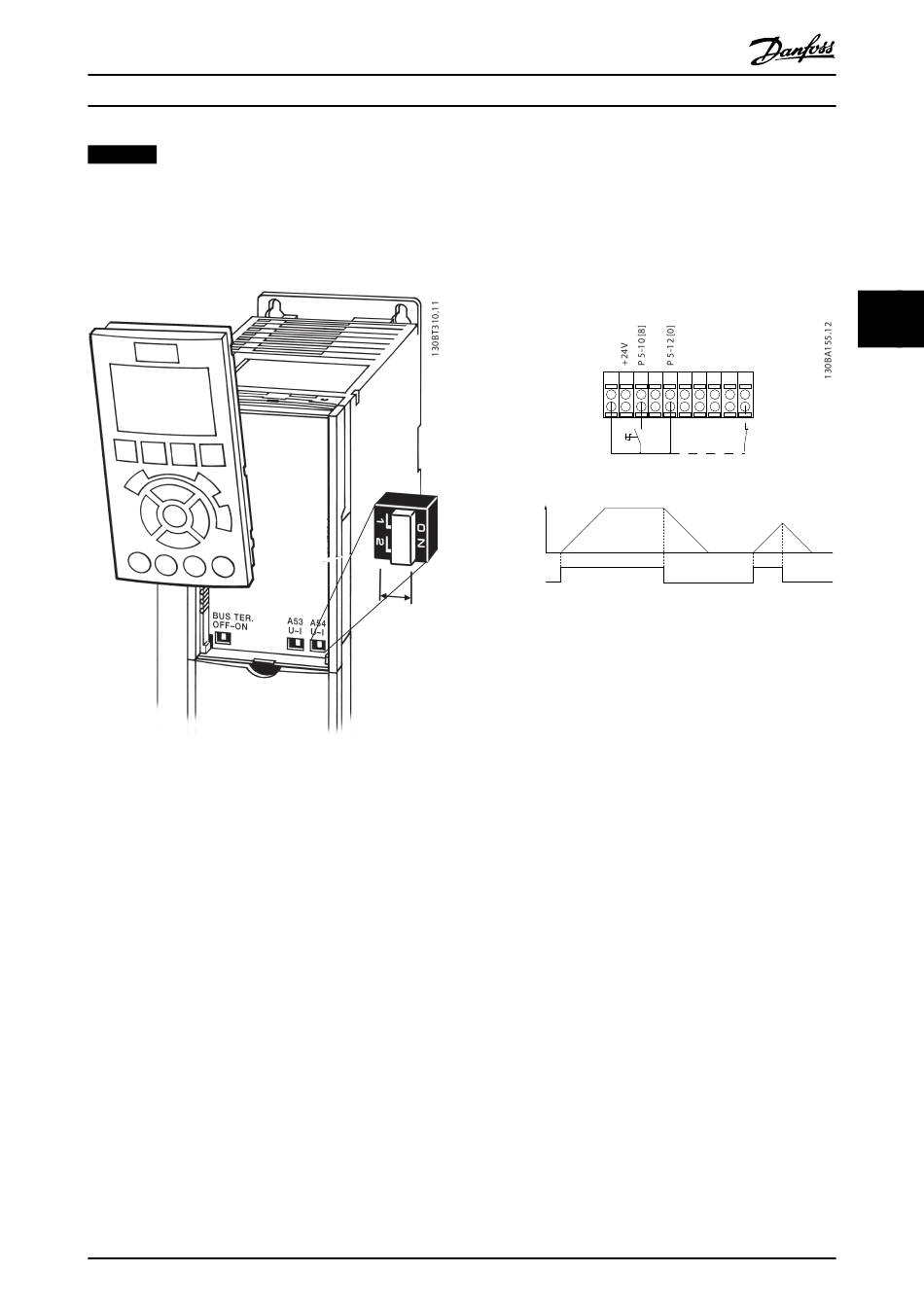

Illustration 4.26 Switch Location
MG11F502
Operating Instructions

4.2 Connection Examples

4.2.1 Start/Stop

Terminal 18 = 5-10 Terminal 18 Digital Input [8] Start
Terminal 27 = 5-12 Terminal 27 Digital Input [0] No
operation (Default coast inverse)
Terminal 37 = STO
Speed
Start/Stop
[18]
Illustration 4.27 Wiring Start/Stop
