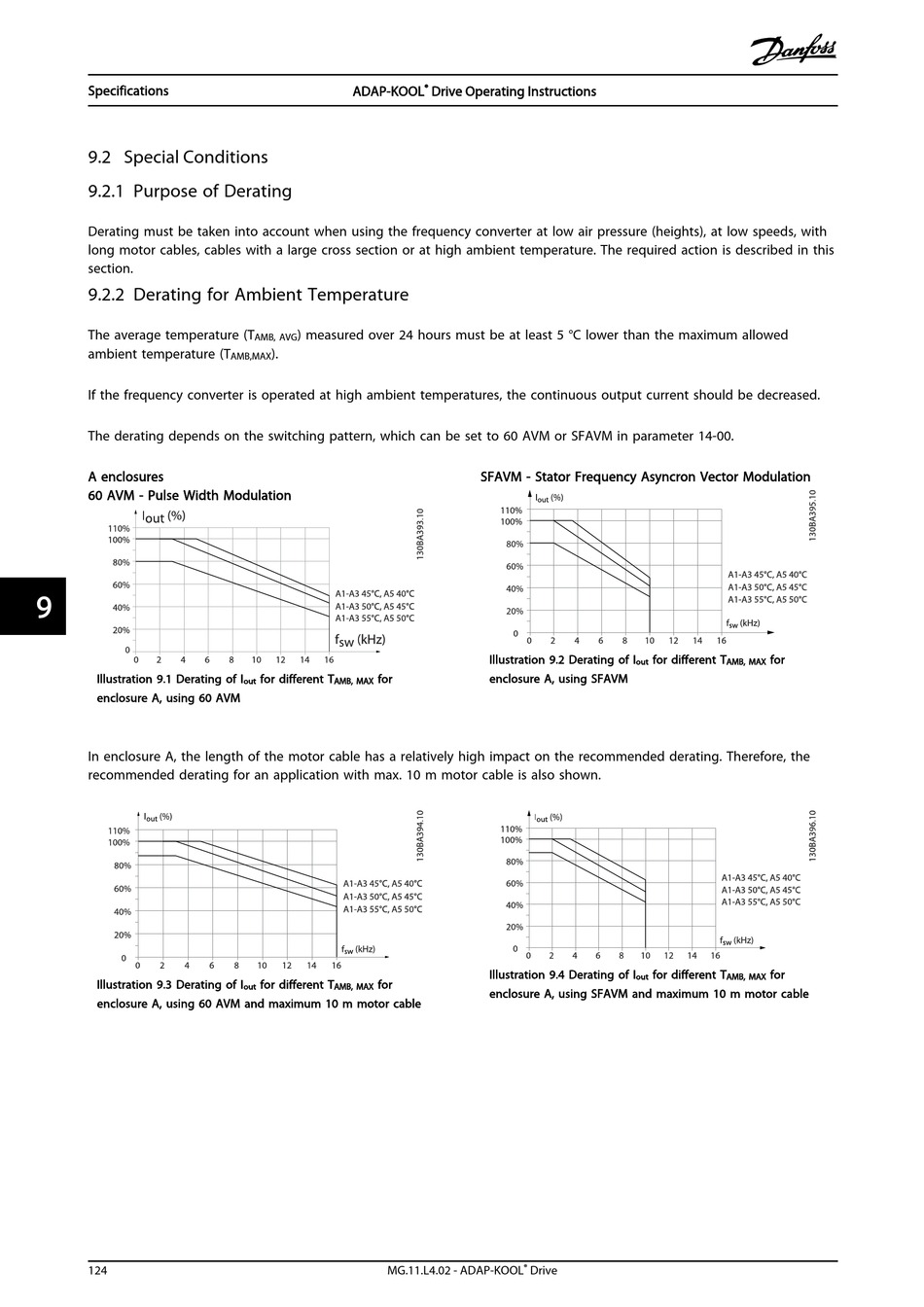

9.2 Special Conditions

9.2.1 Purpose of Derating
Derating must be taken into account when using the frequency converter at low air pressure (heights), at low speeds, with
long motor cables, cables with a large cross section or at high ambient temperature. The required action is described in this
section.
9.2.2 Derating for Ambient Temperature
The average temperature (T
ambient temperature (T
If the frequency converter is operated at high ambient temperatures, the continuous output current should be decreased.
The derating depends on the switching pattern, which can be set to 60 AVM or SFAVM in parameter 14-00.
A enclosures
60 AVM - Pulse Width Modulation
9 9
Illustration 9.1 Derating of I
enclosure A, using 60 AVM
In enclosure A, the length of the motor cable has a relatively high impact on the recommended derating. Therefore, the
recommended derating for an application with max. 10 m motor cable is also shown.
Illustration 9.3 Derating of I
enclosure A, using 60 AVM and maximum 10 m motor cable
124
ADAP-KOOL
) measured over 24 hours must be at least 5 °C lower than the maximum allowed
AMB, AVG
).
AMB,MAX
for different T for
out AMB, MAX
for different T for
out AMB, MAX
MG.11.L4.02 - ADAP-KOOL
®
Drive Operating Instructions
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 9.2 Derating of I
enclosure A, using SFAVM
Illustration 9.4 Derating of I
enclosure A, using SFAVM and maximum 10 m motor cable
®
Drive
for different T for
out AMB, MAX
for different T for
out AMB, MAX
