Efficient Parameter Set-up for ADAP-KOOL Applications
The parameters can easily be set up for the vast majority of the ADAP-KOOL applications only by using the [Quick Setup]
option. After pressing [Quick Menu], the different choices in the Quick Menu are listed. See also illustration 6.1 below and
tables Q3-1 to Q3-4 in the followingFunction Setups section.
Example of using the Quick Setup option
Assume you want to set the Ramp Down Time to 100
seconds
1. Select [Quick Setup]. The first par. 0-01 Language
in Quick Setup appears
▼
2.
Press [ ] repeatedly until par. 3-42 Ramp 1 Ramp
Down Time appears with the default setting of 20
seconds
3. Press [OK]
◀
4.
Use the [ ] button to highlight the 3rd digit
before the comma
5.
Change '0' to '1' by using the [
▶
6.
Use the [ ] button to highlight the digit '2'
7.
Change '2' to '0' with the [
8. Press [OK]
The new ramp-down time is now set to 100 seconds.
It is recommended to do the set-up in the order listed.
NOTE
A complete description of the function is found in the
parameter sections of these Operating Instructions.

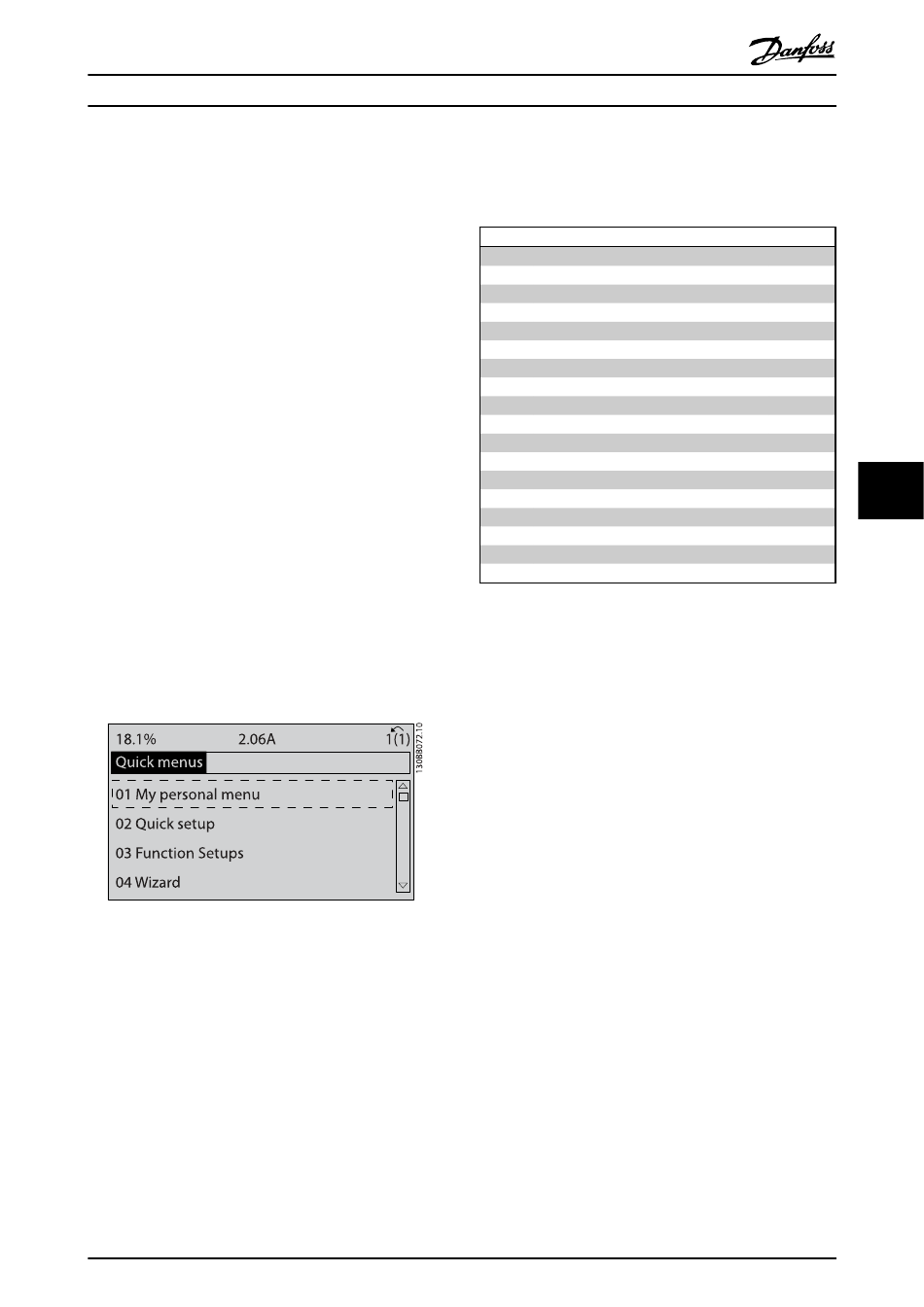

Illustration 7.1 Quick Menu view.
The Quick Setup menu gives access to the 13 most
important setup parameters of the drive. After
programming the drive will, in most cases be ready for
operation. The 13* Quick Setup parameters are shown in
the table below. A complete description of the function is
given in the parameter description sections of this manual.
The display showing depends on choices made in
parameter 0-02 and 0-03. The default setting of parameters
0-02 and 0-03 depends on which region of the world the
frequency converter is supplied to but can be re-
programmed as required.
®
ADAP-KOOL Drive Operating Instructions
▲
] button
▼
] button
MG.11.L4.02 - ADAP-KOOL
Par. Designation
0-01 Language
1-03 Torque characteristics
1-20 Motor Power
1-21 Motor Power*
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
1-39 Motor Poles
4-12 Motor Speed Low Limit*
4-14 Motor Speed High Limit*
3-02 Minimum Reference
3-03 Maximum Reference
3-41 Ramp 1 Ramp up Time
3-42 Ramp 1 Ramp down Time
3-13 Reference Site
5-10 Terminal 18 Digital Input
1-29 Automatic Motor Adaptation (AMA)
Table 7.2 Quick Setup parameters
®
Drive
[Units]
[kW]
[HP]
[V]
[Hz]
[A]
[RPM]
[Hz]
[Hz]
7 7
[s]
[s]
