Electrical Installation

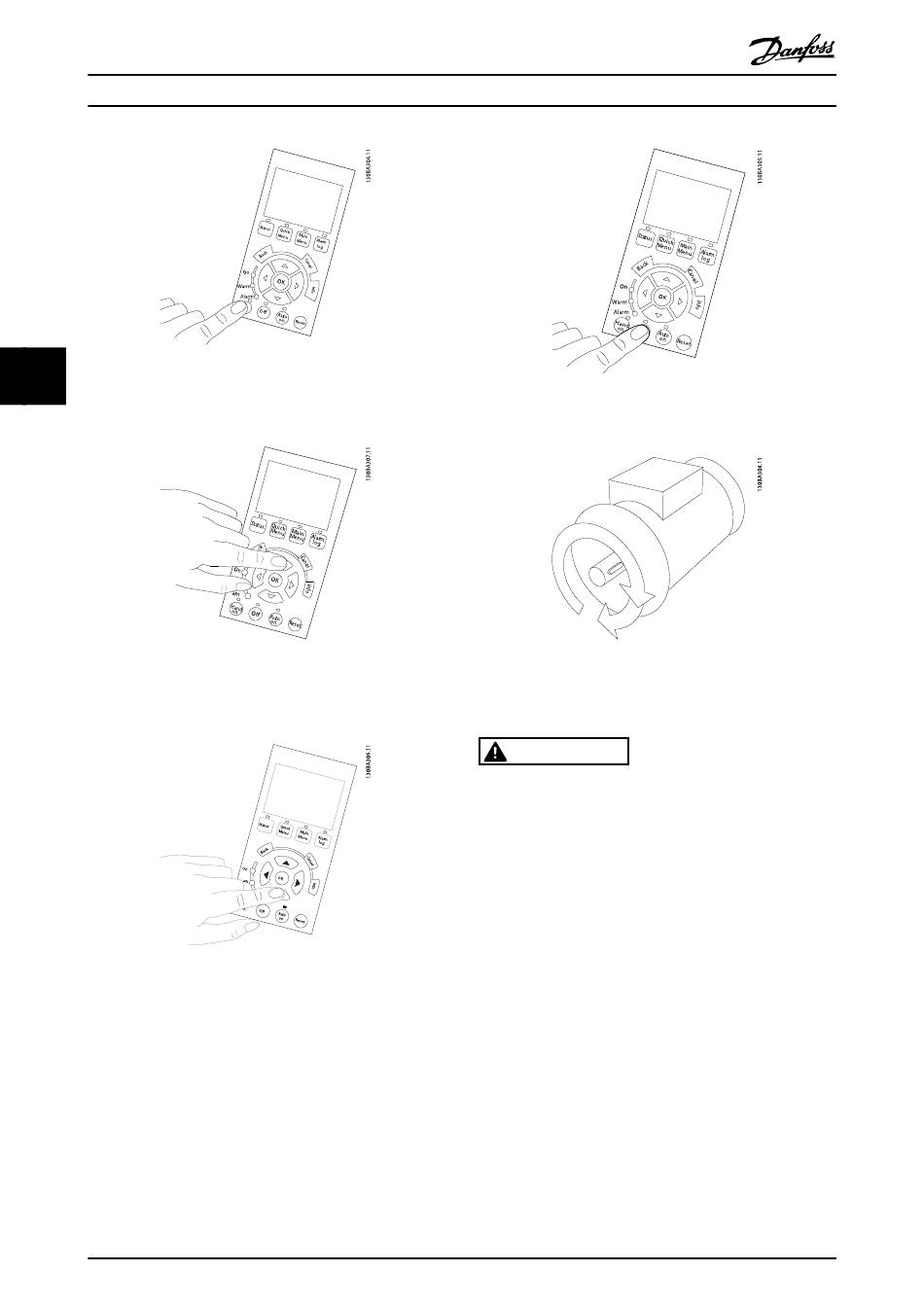

Illustration 5.24
5 5
Step 5: By pressing the [Hand on] button, the LED above the
button should be lit and the motor may rotate.
Illustration 5.25
Step 6: The speed of the motor can be seen in the LCP. It can
be adjusted by pushing the up
Illustration 5.26
Step 7: To move the cursor, use the left ◄ and right ► arrow
buttons. This enables changing the speed in larger increments.
42
®
ADAP-KOOL Drive Operating Instructions
▲ ▼
and down arrow buttons.
MG.11.L4.02 - ADAP-KOOL
Illustration 5.27
Step 8: Press the [Off] button to stop the motor again.
Illustration 5.28
Step 9: Change two motor wires if the desired rotation of
direction is not achieved.
WARNING
Remove mains power from the frequency converter before
changing motor wires.
®
