Application Guide

3.1.2 Application Descriptions

The AKD Wizard is structured into three basic applications:
•
Compressor
•
Multi condenser fan
•
Single fan and pump
These applications are then further expanded to allow control of the drive to be controlled via the drives own internal PID
controllers or from an external control signal.
Compressor
The wizard guides the user through the set up of a refrigeration compressor by asking him to input data about the
compressor and the refrigeration system on which the drive will be running. All terminology and units used within the
wizard are common refrigeration type and set up is thus completed in 10-15 easy steps using just two buttons of the drives
local control panel.

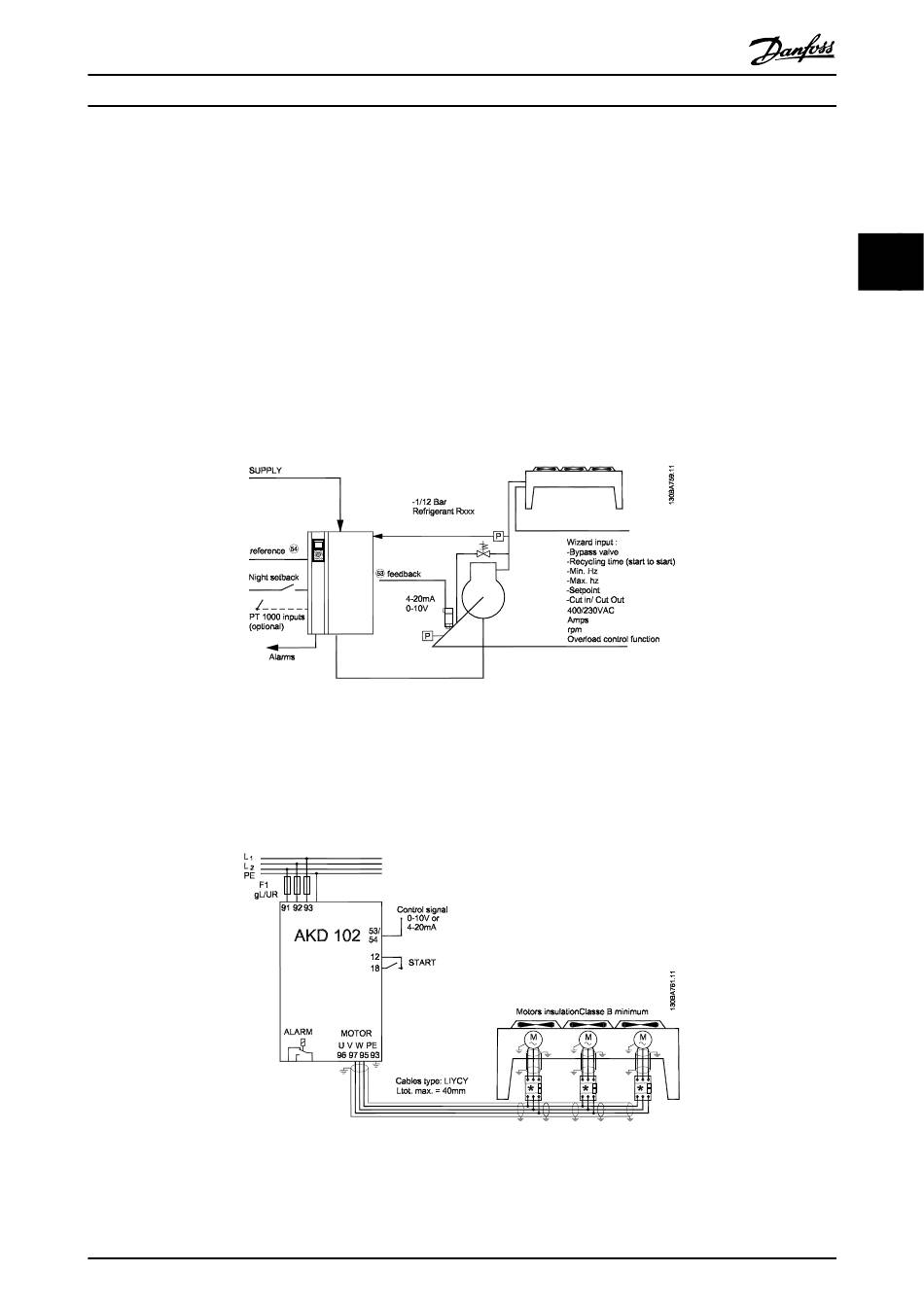

Illustration 3.1 Standard drawing of "Compressor with internal control"
Single or multiple fans or pumps
The wizard guides the user through the set up of a refrigeration condenser fan or pump by asking him to input data about
the condenser or pump and the refrigeration system on which the drive will be running. All terminology and units used
within the wizard are common refrigeration type and set up is thus completed in 10-15 easy steps using just two buttons of
the drives local control panel.
Illustration 3.2 Speed control using analogue reference (open loop) – single fan or pump / multiple fans or pumps in parallel
®
