Electrical Installation
5.1.12 Motor Connection for A2 and A3
Follow these drawings step by step for connecting the motor to the frequency converter.

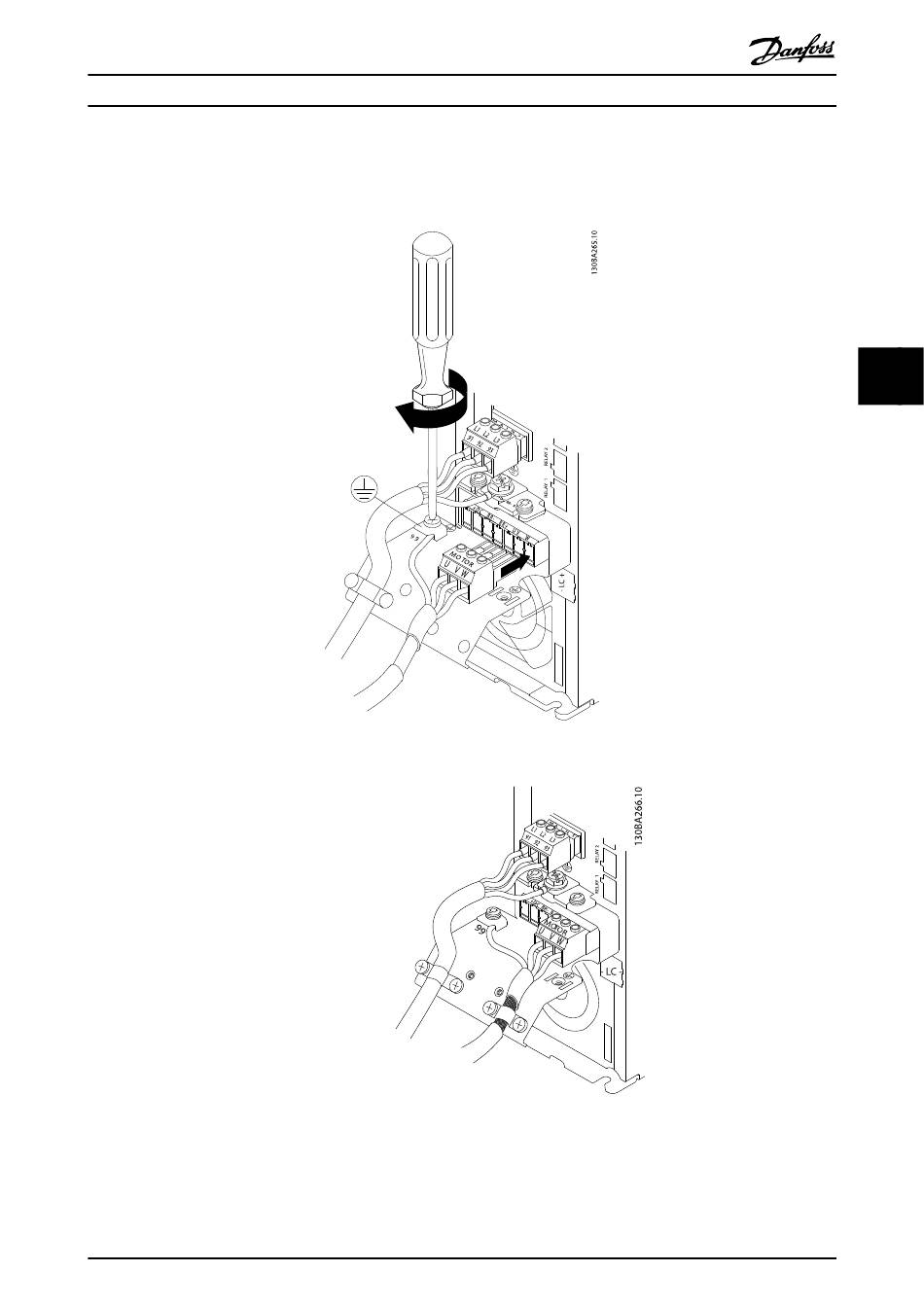

Illustration 5.12 First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
Illustration 5.13 Mount cable clamp to ensure 360 degree connection between chassis and screen, note the outer insulation of the motor
cable is removed under the clamp.
®
