Electrical Installation
5.1.4 Earthing and IT mains
WARNING
The earth connection cable cross section must be at least 10 mm
to EN 50178 or IEC 61800-5-1 unless national regulations specify differently. Always comply with national and local
regulations. on cable cross-sections.
The mains is connected to the main disconnect switch if this is included.
NOTE
Check that mains voltage corresponds to the mains voltage of the frequency converter name plate.
5 5

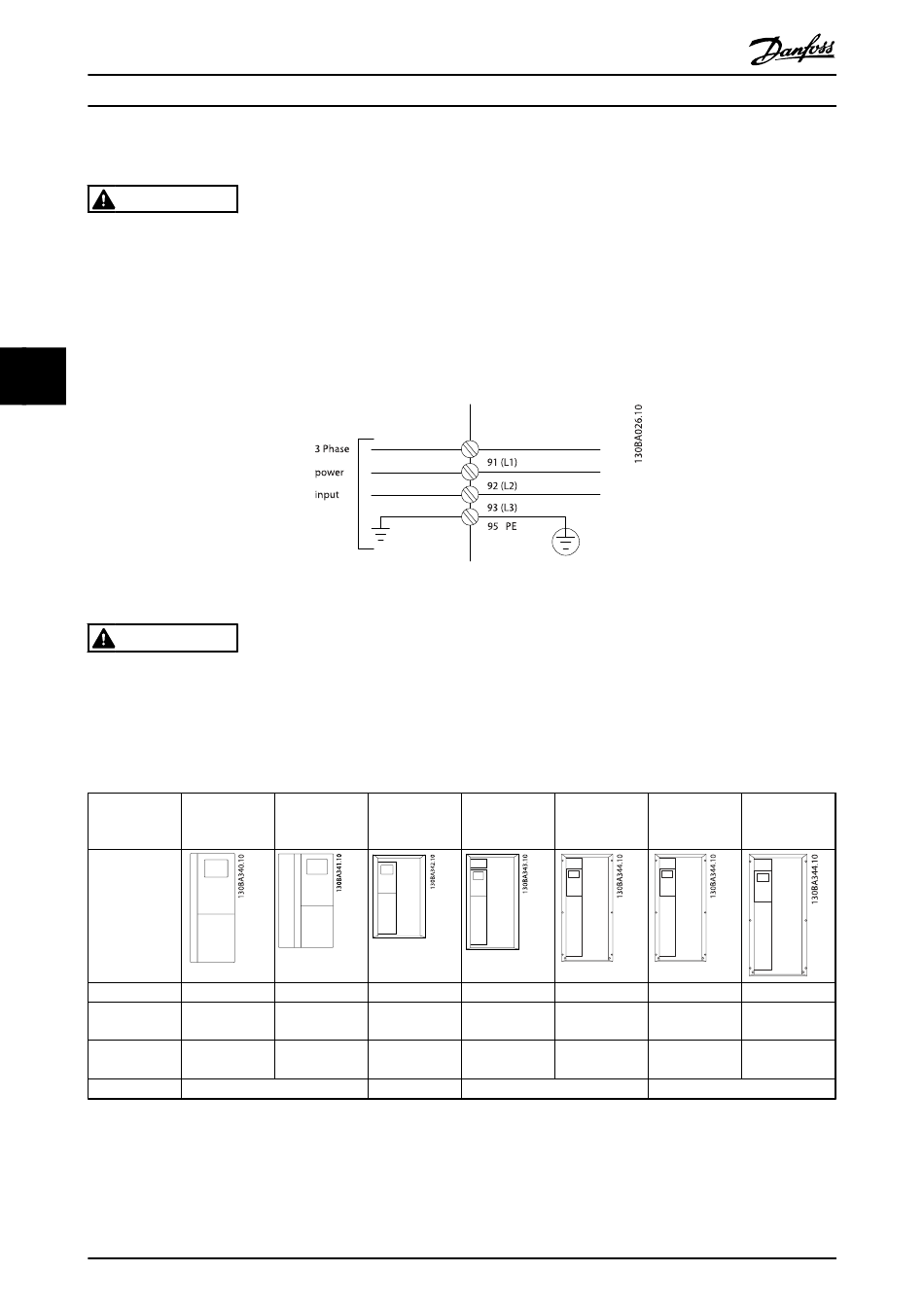

Illustration 5.2 Terminals for mains and earthing.
WARNING
IT Mains
Do not connect 400 V frequency converters with RFI-filters to mains supplies with a voltage between phase and earth of
more than 440 V.
For IT mains and delta earth (grounded leg), mains voltage may exceed 440 V between phase and earth.

5.1.5 Mains Wiring Overview

Enclosure:
Motor size:
200-240 V
380-480 V
Goto:
Table 5.6 Mains wiring table.
30
ADAP-KOOL
A2 A3
(IP 20/IP 21) (IP 20/IP 21)
1.1-3.0 3.7
kW kW
1.1-4.0 5.5-7.5
kW kW
5.1.6
®
Drive Operating Instructions
2
or 2 rated mains wires terminated separately according
B1
A5
(IP 21/IP 55/IP
(IP 55/IP 66)
66)
1.1-3.7 5.5-11
kW kW
1.1-7.5 11-18.5
kW kW
5.1.7 5.1.8
®
MG.11.L4.02 - ADAP-KOOL Drive
B2
C1
(IP 21/IP 55/IP
(IP 21/IP 55/66)
66)
15 18.5-30
kW kW
22-30 37-55
kW kW
5.1.9
C2
(IP 21/IP 55/66)
37-45
kW
75-90
kW
