How to Programme the Frequ...

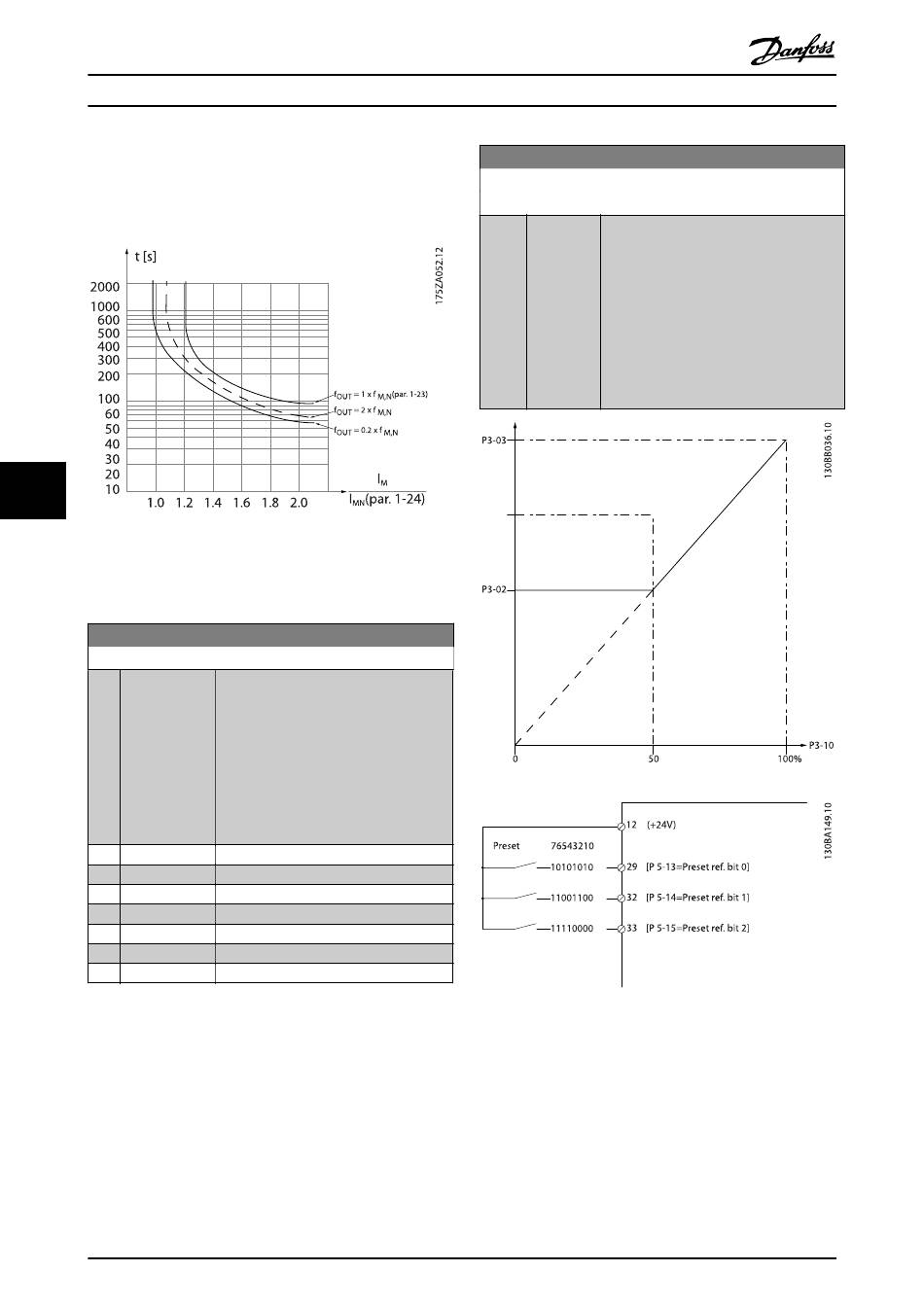

For example ETR-3 starts calculating when set-up 3 is
selected. For the North American market: The ETR
functions provide class 20 motor overload protection in
accordance with NEC.
7 7
NOTE
Danfoss recommends using 24 VDC as thermistor supply
voltage.
1-93 Thermistor Source
Option:
[0] None
*
[1] Analog input 53
[2] Analog input 54
[3] Digital input 18
[4] Digital input 19
[5] Digital input 32
[6] Digital input 33
NOTE
This parameter cannot be adjusted while the motor is
running.
NOTE
Digital input should be set to [0] PNP - Active at 24V in par.
5-00.
70
ADAP-KOOL
Function:
Select the input to which the thermistor
(PTC sensor) should be connected. An
analog input option [1] or [2] cannot be
selected if the analog input is already in
use as a reference source (selected in
3-15 Reference 1 Source, 3-16 Reference 2
Source or 3-17 Reference 3 Source).
When using MCB112, choice [0] None
must always be selected.
MG.11.L4.02 - ADAP-KOOL
®
Drive Operating Instructions
3-10 Preset Reference
Array [8]
Range:
0.00 [-100.00 -
% 100.00 %]
*
®
Drive
Function:
Enter up to eight different preset
references (0-7) in this parameter, using
array programming. The preset reference is
stated as a percentage of the value Ref
(3-03 Maximum Reference, for closed loop
see 20-14 Maximum Reference/Feedb.).
When using preset references, select Preset
ref. bit 0 / 1 / 2 [16], [17] or [18] for the
corresponding digital inputs in parameter
group 5-1* Digital Inputs.
MAX
