Electrical Installation
5.1.13 Motor Connection for A4 and A5
5 5

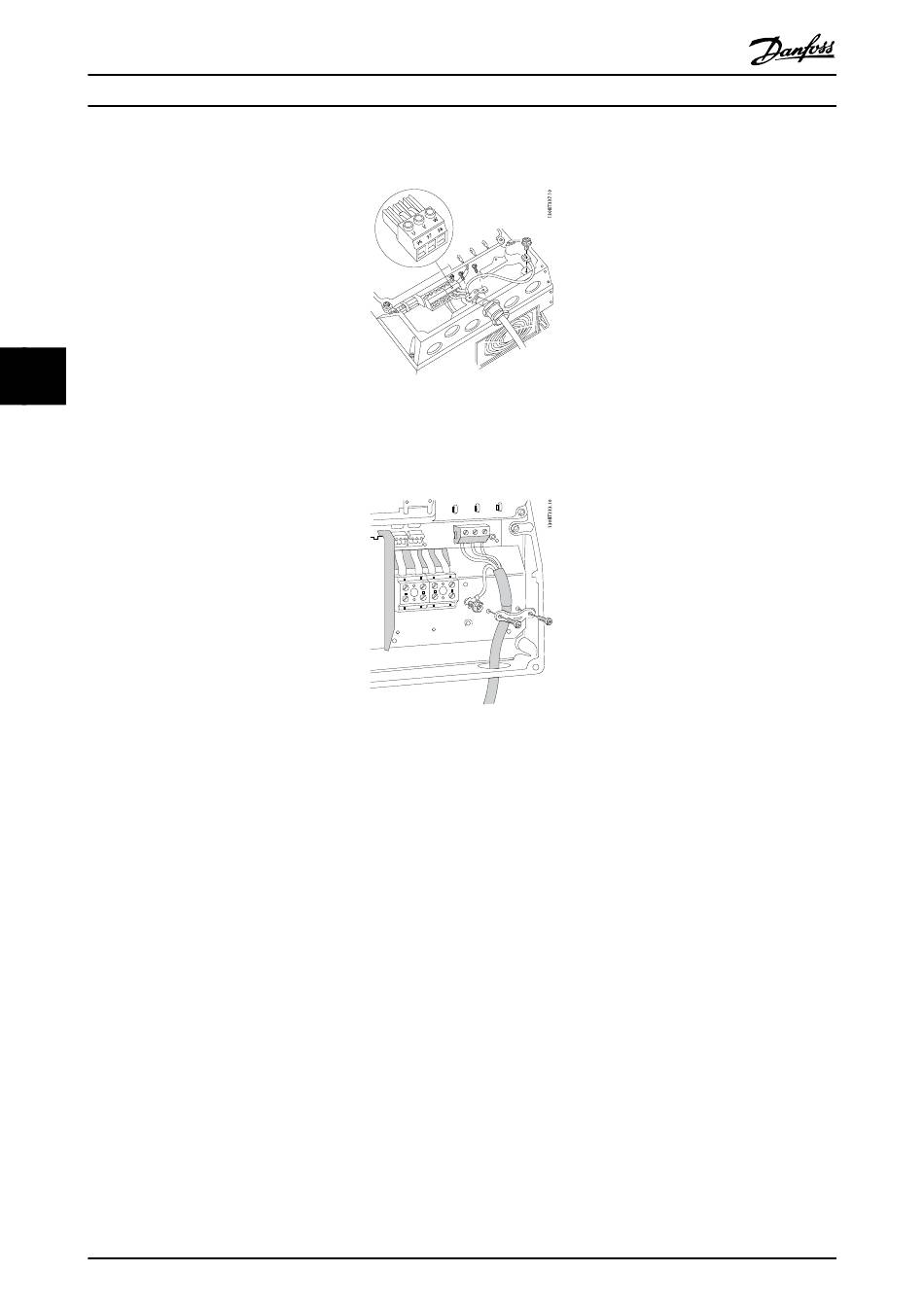

Illustration 5.14 First terminate the motor earth, then place motor U, V and W wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC clamp.
5.1.14 Motor Connection for B1 and B2
Illustration 5.15 First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC clamp.
