Chapter 3 NOZZLE CHECK

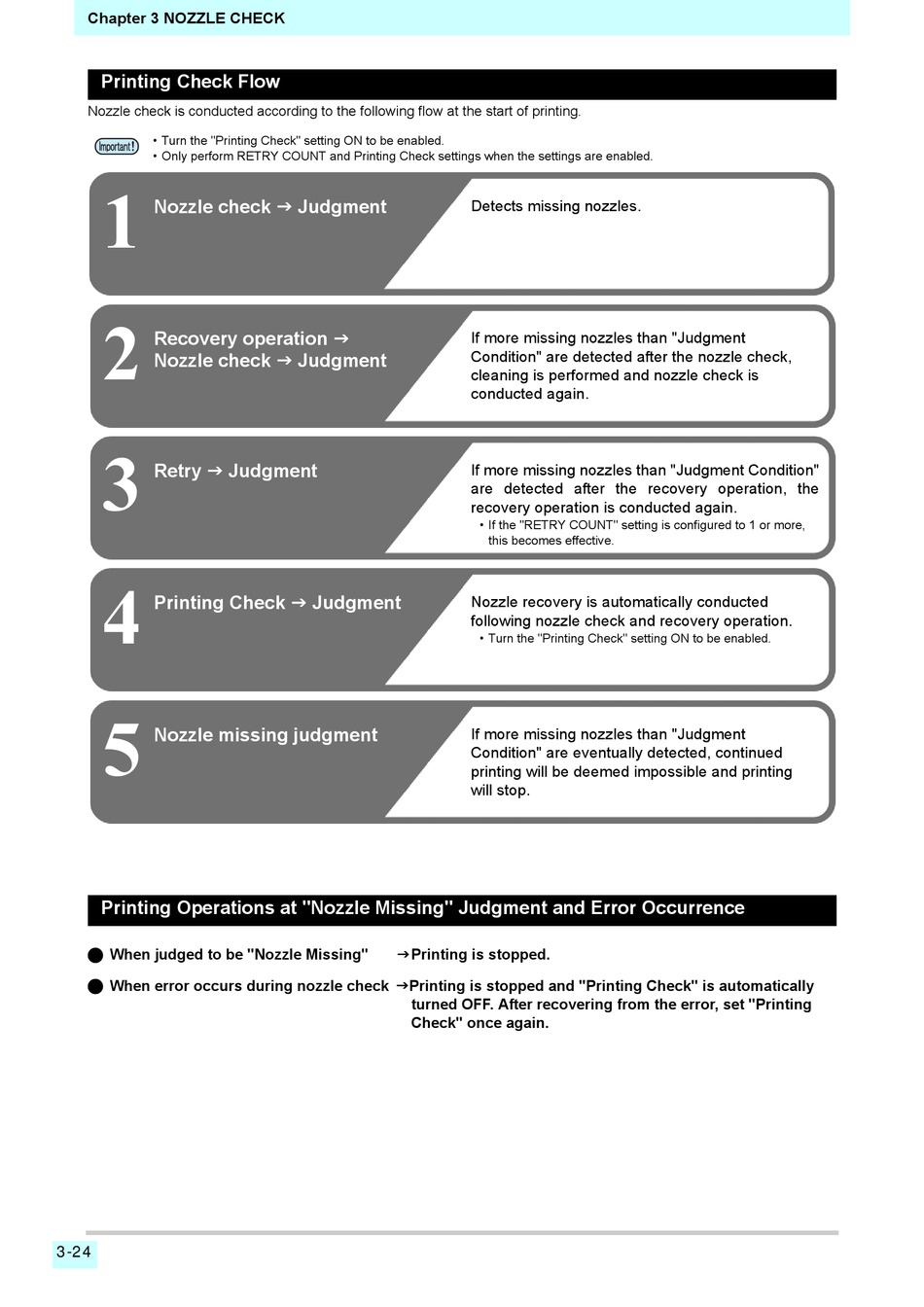

Printing Check Flow

Nozzle check is conducted according to the following flow at the start of printing.
• Turn the "Printing Check" setting ON to be enabled.
• Only perform RETRY COUNT and Printing Check settings when the settings are enabled.
1
Nozzle check  Judgment
2
Recovery operation 
Nozzle check  Judgment
3
Retry  Judgment
4
Printing Check  Judgment
5
Nozzle missing judgment

Printing Operations at "Nozzle Missing" Judgment and Error Occurrence

 When judged to be "Nozzle Missing"
 When error occurs during nozzle check Printing is stopped and "Printing Check" is automatically
3-24
Detects missing nozzles.
If more missing nozzles than "Judgment
Condition" are detected after the nozzle check,
cleaning is performed and nozzle check is
conducted again.
If more missing nozzles than "Judgment Condition"
are detected after the recovery operation, the
recovery operation is conducted again.
• If the "RETRY COUNT" setting is configured to 1 or more,
this becomes effective.
Nozzle recovery is automatically conducted
following nozzle check and recovery operation.
• Turn the "Printing Check" setting ON to be enabled.
If more missing nozzles than "Judgment
Condition" are eventually detected, continued
printing will be deemed impossible and printing
will stop.
Printing is stopped.
turned OFF. After recovering from the error, set "Printing
Check" once again.
