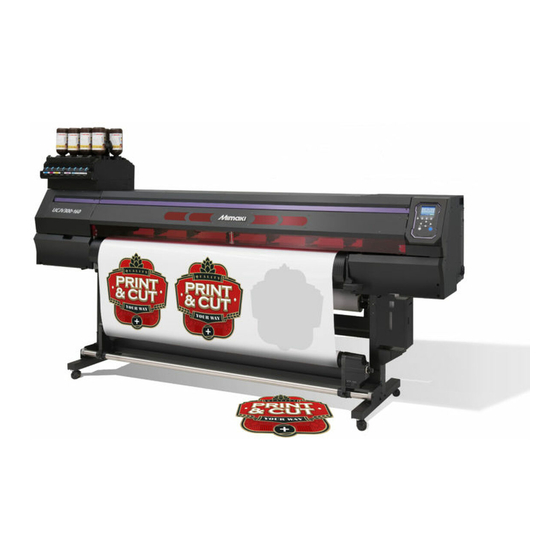

MIMAKI UCJV300 Series Operation Manual

Uv inkjet printer
Hide thumbs Also See for UCJV300 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
You can also download the latest manual from official website.
MIMAKI ENGINEERING CO., LTD.
https://mimaki.com/
D203176-27
Original instructions

Advertisement

Table of Contents
loading

Related Manuals for MIMAKI UCJV300 Series

Summary of Contents for MIMAKI UCJV300 Series

  • Page 1 You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203176-27 Original instructions...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction .................. 6 For safe use.................. 8 Symbols .................... 8 Usage Precautions ................ 9 Ink or any Other Liquid Used with the Machine ...... 13 Ink Specifications................ 14 Restrictions concerning the product ...........  14 Installation Precautions.............. 16 Installation Space ................
  • Page 3 2.3 Adjust the pinch roller positions.......... 54 1,600 mm size .................. 55 1,300 mm size .................. 56 1,070 mm size .................. 57 750 mm size .................. 58 2.4 Loading the Media .............. 59 Media .................... 59 Loading the Roll Media ...............  59 Setting Leaf Media................
  • Page 4 4.2 Creating Register Marks ............ 100 Register marks..................  100 Register Mark Size ................ 101 Spacing Between Register Marks.............  101 Reading Range of Register Marks............  102 No-Plotting Areas Around Register Marks........ 104 Combined Operations of Printing and Cutting ........ 104 4.3 Setting Mark Detection Conditions ........ 105 4.4 Detecting the Position of the Register Mark Origin....
  • Page 5 6.4 Consumable Item Replacement ...........  144 Wiper Replacement ................ 144 Cap Absorber Replacement .............  145 Mist Filter Replacement .............. 146 LED Glass Replacement .............. 147 Exhaust Fan Filter Replacement ............ 148 Pinch Roller Replacement .............. 149 Media Holder Replacement ..............  150 Media Cutter Replacement ...............

  • Page 6: Introduction

    © 2017 MIMAKI ENGINEERING Co., Ltd. l Disclaimers • Mimaki Engineering accepts no liability for damages arising directly or indirectly from the use of the UCJV300 Series, 150 Series (“this machine” hereinafter), whether or not the product is faulty. Mimaki Engineering rejects all liability for damages, direct or indirect, resulting from the use of this machine.
  • Page 7 Use of this machine in residential areas may cause harmful interference. If so, the user is responsible for rectifying such interference. • Use only the cables recommended by Mimaki Engineering when connecting to this machine. Use of other cables may cause the machine to exceed the restrictions stipulated by FCC regulations.

  • Page 8: For Safe Use

    For safe use For safe use Symbols In this manual, the symbols indicate and explain precautions. Make sure you fully understand the meaning of each symbol and use the machine safely and correctly. Explanation Warning Indicates a potential hazard that may result in death or serious injury if handled improperly or if instructions are disregarded.

  • Page 9: Usage Precautions

    For safe use Usage Precautions l In the event of abnormal conditions • In the event of abnormal conditions such as smoke or unusual odor, turn off the main power immediately and unplug the power cable. Continuing to use this machine under these conditions may result in failure, electric shock, or fire.
  • Page 10 For safe use l Maintenance Precautions • Use the included power cable. Otherwise there is a risk of failure, electric shock, or fire. Do not use the power cable with other electronic devices. • Always grasp the plug when unplugging the power cable. Pulling on the power cable itself may damage the cable and result in failure, electric shock, or fire.
  • Page 11 For safe use l Caution regarding moving parts • Keep parts of the body such as the face and hands away from moving parts. Also keep clothing (e.g., loose clothing and accessories) that may impede work away from the machine. Failure to do so may result in injury.
  • Page 12 For safe use • The UV-LED unit becomes extremely hot. Be careful not to touch the LED after it has been turned off until it has sufficiently cooled. • Do not expose the skin or eyes directly or indirectly to light from the UV-LED unit. The UV-LED unit emits ultraviolet (UV) light.

  • Page 13: Ink Or Any Other Liquid Used With The Machine

    • Be sure to read the safety data sheet (SDS) before use. https://mimaki.com/supply/sds/ • Pay close attention to ventilation and be sure to wear safety glasses, gloves, and a mask when handling ink, maintenance liquid, waste ink, or other solutions used with this machine. Leaking ink may adhere to the skin or get into the eyes or mouth.

  • Page 14: Ink Specifications

    • Printing is disabled if a different ink IC chip is used. • There is no problem with the ink bottles used with this machine, even if they are dented. Ink Specifications Item Details Type UV curing ink (MIMAKI product) Color Cyan (C) Magenta (M) Yellow (Y) Black (K)
  • Page 15 Ink or any Other Liquid Used with the Machine • July: Printing is not possible. • The message appears on the display.

  • Page 16: Installation Precautions

    Installation Precautions Installation Precautions • Do not install this machine in environments where flammable substances are present (e.g., gasoline, flammable spray, alcohol, thinner, lacquer, or powder). This machine is not explosion- proof. The product poses a risk of explosion. • Do not install this machine in locations where open flames are present. The ink may ignite. •...

  • Page 17: Installation Space

    Installation Precautions Installation Space Provide the following space around the machine to allow safe and proper replacement of ink and media: Item UCJV300-160 UCJV300-130 UCJV300-107 UCJV300-75 UCJV150-160 At least 3,900 At least 3,650 At least 3,380 At least 3,090 At least 3,900 Width (2,900 mm) (2,650 mm)
  • Page 18 Installation Precautions Attach the transportation stays fitted underneath this machine. Remove the caster block. Move by grasping the transportation stays. • Assign at least six persons to move this machine. Comply with local regulations when moving the product. Replace the caster block. Remove the transportation stays.

  • Page 19: Safety Interlocks

    Safety Interlocks Safety Interlocks This machine is equipped with interlocks to ensure safety during use. Printing will abort if you open the covers while printing is underway. If this happens, the RIP data will need to be received again. • Safety interlock locations...

  • Page 20: Warning Labels

    Warning Labels Warning Labels Make sure you fully understand the details indicated on the various warning labels. If any of the warning labels becomes dirty and illegible or peel off, contact your local dealer or our service office to request new warning labels. Around the carriage The maintenance cover is open...
  • Page 21 Warning Labels Order code Label Details M910931 Beware of opening and closing parts. Injury may result if hands become trapped. M907833 Indicates dangerous moving parts. M903330 Wear safety glasses and gloves while working. M903405 Beware of the cutter. M907935 Indicates dangerous live parts. M905811 Indicates dangerous moving parts.
  • Page 22 Warning Labels...

  • Page 23: Chapter 1 Before Using This Product

    Chapter 1 Before Using This Product This chapter This chapter describes various parts and provides important information. Read this chapter before using the product. Part Names and Functions ......24 Connecting a PC to the Product....... 3 6 Front............24 Using a USB Cable ........3 6 Rear and Right Side View ......

  • Page 24: Part Names And Functions

    Chapter 1 Before Using This Product 1.1 Part Names and Functions Front Name Outline Platen Print area. "Platen"(P. 26) Pinch rollers The pinch rollers and grid rollers are used to grip and feed the media. "Pinch Rollers and Grid Rollers"(P. 27) Grid rollers Capping station Includes caps, wipers, and an NCU for monitoring print head nozzle...

  • Page 25: Rear And Right Side View

    Chapter 1 Before Using This Product Rear and Right Side View Name Outline Clamp lever (rear) Linked to the clamp lever at the front. Media sensor Detects whether media is present. "Media sensor"(P. 28) Media vacuum exhaust Vacuum exhaust port securing media under vacuum pressure port Ink wipe filter Filter for soaking up ink droplets from special ink bottle caps...

  • Page 26: Carriage

    Chapter 1 Before Using This Product Carriage The carriage includes a print head for ejecting ink, a UV-LED lamp for curing UV ink, and a jam sensor for stopping the carriage when media clogs. Printing occurs as ink is ejected while traversing left and right. •...

  • Page 27: Pinch Rollers And Grid Rollers

    Chapter 1 Before Using This Product Pinch Rollers and Grid Rollers The pinch rollers and grid rollers are used to grip and feed the media. Pinch roller Grit roller • When this product is not in use, raise the clamp lever to separate the pinch rollers from the grid rollers.

  • Page 28: Media Sensor

    Chapter 1 Before Using This Product Media sensor The media sensor detects the presence/absence of media. Media sensor • The sensor must be covered by the media to detect the media width. Take-up unit Use the switch on the take-up unit to change the media take-up direction. ON/OFF button Direction selector switch Name...
  • Page 29 Chapter 1 Before Using This Product • Do not turn off the main power supply. Turning off the main power supply will disable the automatic maintenance function (including nozzle clogging prevention function and ink discharge channel cleaning function). This will increase the risk of print defects (e.g., nozzle clogging, deflection).

  • Page 30: Operating Panel

    Chapter 1 Before Using This Product Operating panel This is used to control the product and make/change settings. xxxx width:1340mm TEST PRINT MENU REMOTE CLEANING Name Outline Display "Display"(P. 31) [SEL] key Selects the function for the corresponding [FUNCTION] key. [FUNCTION] key Used for test printing, head cleaning, and editing settings "[FUNCTION]...
  • Page 31 Chapter 1 Before Using This Product Display MENU mode <setting type number> LOCAL<SETUP 1> Detected media width width:1340mm Ink status TEST PRINT Function name assigned to [FUNCTION] MENU REMOTE CLEANING MENU mode Four menu modes are available. Name Outline LOCAL mode Used for test printing, maintenance, and settings REMOTE mode Prints the print data received from a PC.
  • Page 32 Chapter 1 Before Using This Product [FUNCTION] key This section describes the functions and roles assigned to the [FUNCTION] key. Icon Outline Displays the various menu screens. "SETUP"(P. 109) Displays maintenance functions such as test printing and cleaning. Used to switch from LOCAL mode to REMOTE mode. Displays adjustment functions such as feed adjustment and drop position adjustment.
  • Page 33 Chapter 1 Before Using This Product Displaying Machine Information (Local Guidance) Press the [ENTER] key on the LOCAL mode screen to display the following information. Item Outline Display Ink information Displays ink type, remaining ink Ink type xxx-xxx xxx-xxx levels, and ink errors. 1.  100％  No error 5.  100％   ...

  • Page 34: Connecting The Power Cable

    Chapter 1 Before Using This Product 1.2 Connecting the Power Cable Check to confirm that the main power supply is turned off. Insert the cable band to the machine. Plug the power cable into the inlet of the machine. Secure the power cable to the cable band. •...

  • Page 35: Turning Off The Power

    Chapter 1 Before Using This Product Press the [END/POWER] key to turn on power. • The firmware version appears on the display, and the initial operation is executed. LOCAL mode is then set and the machine is ready for use. [END/POWER] key Turn on the power for the connected PC.

  • Page 36: Connecting A Pc To The Product

    USB Connection Precautions l When connecting more than one UCJV300 Series, 150 Series to a PC The UCJV300 Series, 150 Series may not be correctly recognized. If the PC has more than one USB port, try connecting to a different USB port to check whether the product is correctly recognized.
  • Page 37 Chapter 1 Before Using This Product • The PC used to transfer print data must be located on the same network as this product. This product cannot be connected via a router. • Use a 1000BASE-T compatible computer or switching hub. Printing requires 1000BASE-T support. Switching hub l Checking the LAN connection Check the display on this product.

  • Page 38: System Configuration

    Use RIP software to request to print data created using applications like Illustrator or Photoshop. Print data sent Print request Preparing the Driver Download the MIMAKI driver from our website. • https://mimaki.com/download/inkjet.html [UCJV300 Series, 150 Series] > [Drivers/Utilities] Install the MIMAKI driver.

  • Page 39: Installing Rip Software

    The explanation here applies to MIMAKI RIP software (RasterLink). Launch “Profile Update”. (1) From the Start menu, select [Mimaki RasterLink6Plus] > [Profile Update]. (2) Click [Next]. Select the UCJV300 Series, 150 Series being used.

  • Page 40: Setting Up Rip Software

    Profile Manager. https://mimaki.com/download/inkjet.html Setting Up RIP Software The explanation here applies to MIMAKI RIP software (RasterLink). Launch RasterLink. • The [Printer Management] screen appears. • To add a new model, launch RasterLink, then select [■Environment□] > [Printer Management].
  • Page 41 Chapter 1 Before Using This Product Register UCJV300 Series, 150 Series. (1) Click [Add]. (2) Set the specifics for UCJV300 Series, 150 Series. • Model: Select the model. • Color: Select the ink set filled. • Output port: Select the cable connected.

  • Page 42: Ink Replacement Method

    Chapter 1 Before Using This Product 1.5 Ink Replacement Method When Ink Near End is Displayed Ink levels are low. We recommend replacing with new Ink bottle as soon as possible. Printing is still possible, but cleaning and continuous printing are not possible. Note that ink may run out during printing. To check which Ink bottle needs to be replaced, press the [ENTER] key on the LOCAL mode screen.

  • Page 43: Replacing Ink

    Chapter 1 Before Using This Product Replacing Ink l Removing Ink Bottles Rotate the lever on the tank section from left to right. • Never attempt to rotate the ink bottles. Doing so may result in leaking ink. Lift the ink bottles vertically. Light-blocking cover •...
  • Page 44 Chapter 1 Before Using This Product Soak up any ink droplets on the special caps. • Use a wipe filter to soak up ink droplets and prevent dripping. Wipe filter Wipe off any ink on the special caps with paper wipes. •...
  • Page 45 Chapter 1 Before Using This Product l Shake the new Ink bottle. Shake the Ink bottle to the left and right slowly at least 20 times. • Tighten the ink bottle lid securely, then shake the bottle slowly from left to right to ensure that the ink moves inside, holding the ink bottle lid with a paper towel.
  • Page 46 Chapter 1 Before Using This Product Use the tightening jig to tighten the special cap in place. Tightening tool [SPA-0232] Good example Bad example Position the upper arrow within this range! [SPA-0328] Good example Bad example Position the upper arrow within this range! •...
  • Page 47 Chapter 1 Before Using This Product Model Ink set Ink layout 300 series 4-color 4-color, W 4-color, W, CL 6-color, W 150 series 4-color Mount ink bottles in the tank. • Rotate the lever on the tank section from the left to the right end, then mount the ink bottle. Lever •...
  • Page 48 Chapter 1 Before Using This Product Insert a new ink IC chip into the slot on the ink supply unit. • Ink IC chips The marking on the ink IC chip indicates the color information. Marking location ★Ink Color☆ Marking Cyan (One blue circle) Magenta...
  • Page 49 Chapter 2 Printing This chapter This chapter describes printing procedures and setting methods. Print Process ...........50 Test Printing ............. 6 9 Changing the Layout Direction for Test Adjusting Print Head Height ......53 Printing ............6 9 Adjust the pinch roller positions.......54 Checking White Ink Ejection ......

  • Page 50: Chapter 2 Printing

    Chapter 2 Printing 2.1 Print Process Turn on the power. "Turning On the Power"(P. 34) [END/POWER] key Connect a RIP PC to the machine. "Using a USB Cable"(P. 36) "Using a LAN Cable"(P. 36) Setting Up RIP Software "Installing RIP Software"(P. 39) (required first time only) "Obtaining Color Profiles"(P.
  • Page 51 Chapter 2 Printing Loading the Media This machine can be used with roll media and leaf media. "Loading the Media"(P. 59) Take-up unit Core Adjust the number and pressure of pinch rollers to use. Set an appropriate pressure for the set media. "Setting the Pressure and Number of Pinch Rollers to Use"(P.
  • Page 52 Chapter 2 Printing "Correcting the Drop Position"(P. 74) Media feed direction The drop position correction value here will be “+4.0”. Printing RIP Data "Printing RIP Data"(P. 75) Cutting the Media "Cutting the Media"(P. 79)

  • Page 53: Adjusting Print Head Height

    Chapter 2 Printing 2.2 Adjusting Print Head Height Adjust the print head height to suit media thickness. Range Gap between print head and platen 2 mm (default setting) Middle 2.5 mm High 3 mm • Be sure to correct the dot position after altering the print head height. "Correcting the Drop Position"(P.

  • Page 54: Adjust The Pinch Roller Positions

    Chapter 2 Printing 2.3 Adjust the pinch roller positions. Adjust the pinch roller positions to suit the width of the media being used. • Always use at least two pinch rollers. Choose the grid rollers capable of holding down the media at equal intervals. Pinch roller Grit roller Move the pinch rollers above the grit rollers.

  • Page 55: Mm Size

    Chapter 2 Printing 1,600 mm size Set the right edge of the media so that it falls within this range. Choose the grit rollers based on media width. GR11 GR10 1577 ~ 1620mm 1446 ~ 1514mm 1212 ~ 1272mm 1032 ~ 1092mm 732 ~ 792mm 576 ~ 644mm 364 ~ 424mm...
  • Page 56 Chapter 2 Printing 1,300 mm size Set the right edge of the media so that it falls within this range. Choose the grit rollers based on media width. GR10 1328 ~ 1371mm 1212 ~ 1272mm 1032 ~ 1092mm 732 ~ 792mm 576 ~ 644mm 362 ~ 422mm 241 ~ 301mm...

  • Page 57: Mm Size

    Chapter 2 Printing 1,070 mm size Set the right edge of the media so that it falls within this range. Choose the grit rollers based on media width. 1043 ~ 1100mm 900 ~ 960mm 732 ~ 792mm 576 ~ 644mm 362 ~ 422mm 241 ~ 301mm 967 ~ 1027mm...

  • Page 58: Mm Size

    Chapter 2 Printing 750 mm size Set the right edge of the media so that it falls within this range. Choose the grit rollers based on media width. 777 ~ 810mm 962 ~ 752mm 578~ 638mm 364 ~ 424mm 241 ~ 301mm 691 ~ 751mm 616 ~ 676mm 502 ~ 582mm...

  • Page 59: Loading The Media

    Media l Media handling precautions • Use Mimaki-approved media to ensure consistent high-quality printing. • Assign at least two people to load roll media. Otherwise there is a risk of back injury due to the weight of the media.
  • Page 60 Chapter 2 Printing Move the rear left roll holder to the roll setting position. • Unscrew the roll holder retaining screw before moving. Position the roll holder so that it is within the guide mark of the pinch roller. Setting position for 3-inch roll Setting position for 2-inch roll Tighten the retaining screw on the rear left roll holder.
  • Page 61 Chapter 2 Printing Lower the clamp lever. • Hold the media with the pinch rollers and grid rollers. Move to the front of the machine and open the front cover. Raise the clamp lever and pull out the media. • Make sure the media does not fall to the rear. •...
  • Page 62 Chapter 2 Printing Check how far the media was pulled out. • Pull the front edge of the media gently at several points to confirm that the media was pulled out by the same amount. Lower the clamp lever. Secure the media in the media holder. Media holder •...
  • Page 63 Chapter 2 Printing Load an empty core on the take-up unit. Take-up unit Core Secure the media to the take-up unit. (1) Press to feed the media until it reaches the core on the take-up unit. (2) Secure the middle of the media with adhesive tape. (3) Secure the media on the right and left in the same way.

  • Page 64: Setting Leaf Media

    Chapter 2 Printing Adjusting the Torque Limiter The take-up unit is fitted with a torque limiter. Turn the torque limiter adjustment nut to adjust take-up tension. The torque limiter is initially set to “Medium” when shipped. Adjustment nut Torque scale 50 % of maximum torque 100 % of maximum torque l Increase tension (clockwise)
  • Page 65 Chapter 2 Printing Move the take-up units to left and right. • Print quality may be affected if the front edge of the media hits the take-up unit during printing. Raise the clamp lever. Open the front cover. Insert the media. •...
  • Page 66 Chapter 2 Printing Adjust the position of the front media edge. • Set the media so that at least 40 mm of the media lies on the after cover. If not, the media width may not be detected. About 40 mm Media After cover Lower the clamp lever to confirm that the spacing from the pinch roller is uniform.
  • Page 67 Chapter 2 Printing Press and select [LEAF]. • After the media width is detected, the rear edge of the media is detected. • If the setting for [Machine Setup] > [Media Detect] > [Detection Type] is “MANUAL”, set the area for printing manually.

  • Page 68: Setting The Pressure And Number Of Pinch Rollers To Use

    This can be used only when printing with white ink and then with color and gloss. For more information refer to the RasterLink reference guide or the multilayer printing guide. https://mimaki.com/download/software.html https://mimaki.com/download/inkjet.html Switch operation Used to check settings. Switch to configured settings before printing the built-in pattern (e.g., test printing, test...

  • Page 69: Test Printing

    Chapter 2 Printing 2.6 Test Printing Print a test pattern to confirm that the ink prints correctly. Perform head cleaning if you observe any print defects (e.g., nozzle clogging, deflection). "Head Cleaning"(P. 71) Head 1 Head 1 Head 2 Head 2 Check beforehand •...

  • Page 70: Printing Defects

    Chapter 2 Printing • Print the background for the test pattern using black ink. l White Ink Confirmation Test Pattern On the LOCAL mode screen, select [TEST PRINT/CLEANING] > [Test Print], then press the [ENTER] key. • The Test Print menu is displayed. Select [SpotColor Check], then press the [ENTER] key.

  • Page 71: Head Cleaning

    Chapter 2 Printing 2.7 Head Cleaning The following head cleaning methods are available. Choose the method based on test results. Item Details Soft If the print shows a bent line (deflection) Normal If the print shows a missing line (nozzle clogging) Hard If soft cleaning and normal cleaning fail to resolve print defects (e.g., nozzle clogging, deflection)

  • Page 72: Feed Correction

    Chapter 2 Printing 2.8 Feed Correction Changing the media may affect the feed amount due to various factors, including the weight and thickness of the media and whether the take-up unit is used. Correct the drop position to suit the type of media used. Image defects (e.g., dark or light streaks) will result if the feed is not properly corrected.
  • Page 73 Chapter 2 Printing • Once adjustment is complete, the medium will be fed to the print origin. Sagging may occur in the rear roll medium. Rewind roll media by hand to eliminate any sagging. Correcting the Media Feed During Printing You can also correct the media feed amount in REMOTE mode or while printing.

  • Page 74: Correcting The Drop Position

    Chapter 2 Printing 2.9 Correcting the Drop Position Changing the media and print head height will also alter the drop positions. Correct the drop position to suit the type of media used. Image defects (e.g., overlaid lines or blurred images) will result if the drop position is not properly corrected. Check beforehand •...

  • Page 75: Printing Rip Data

    • Click the icon on the PC desktop. Select the image data to print. (1) Select [File] > [Open]. (2) Select the desired image data, then click [Open]. • If multiple printers are registered, select UCJV300 Series, 150 Series in “Printer name”.

  • Page 76: Changing The Origin

    Chapter 2 Printing Select the image data imported. • The image is displayed in the tab for UCJV300 Series, 150 Series selected in “Printer name”. Check the settings and alter as necessary. • Specify the following settings by clicking the function icons shown on the right-hand side of the screen: (normal printing): Specifies settings like enlargement/reduction and number of copies.

  • Page 77: Starting Printing

    Chapter 2 Printing On the LOCAL mode screen, press • The Origin Setup screen appears. Press to move the origin to the desired position. • The carriage moves left and right and feeds the medium. Press the [ENTER] key. • The origin is updated. Starting Printing Press [REMOTE].

  • Page 78: Stopping Printing (Data Clear)

    Chapter 2 Printing Stopping Printing (Data Clear) On the LOCAL mode screen, select [DATA CLEAR]. LOCAL width:1340mm ADJUST DATA CLEAR Press the [ENTER] key to clear the received data. • The receive buffer is cleared.

  • Page 79: Cutting The Media

    Chapter 2 Printing 2.11 Cutting the Media On the LOCAL mode screen, press • The Origin Setup screen appears. Press to feed the media to the position required for cutting. Select [CUT], then press the [ENTER] key. • The media is cut.
  • Page 80 Chapter 2 Printing...
  • Page 81 Chapter 3 Cutting This chapter This chapter explains the cutting function. Cutting Process ..........82 Test Cutting ............9 3 Installing Cutting Tools ........84 Cutting the Cutting Data ........9 4 Using the Cutter ......... 84 Changing the Origin ........9 4 Using a Pen..........

  • Page 82: Chapter 3 Cutting

    Chapter 3 Cutting 3.1 Cutting Process Turn on the power. "Turning On the Power"(P. 34) Connect this machine to the PC on which the cutting software is installed. "Using a USB Cable"(P. 36) "Using a LAN Cable"(P. 36) Adjust the pinch roller positions. Adjust the pinch roller positions to suit the width of the set media.
  • Page 83 Chapter 3 Cutting Cutting the Cutting Data "Cutting the Cutting Data"(P. 94) Cutting the Media "Cutting the Media"(P. 79)

  • Page 84: Installing Cutting Tools

    Chapter 3 Cutting 3.2 Installing Cutting Tools This machine can be used with the following tools: • Cutter (for cutting media) Used to cut the printed image on media or to cut characters with the cutting sheet "Using the Cutter"(P. 84) •...
  • Page 85 Chapter 3 Cutting • If the base paper is thicker than the label film: (label film thickness + base paper thickness)/2 Label film Cutting blade Cut amount protrusion length Base paper • If the base paper is thinner than the label film: As far as to cut into label film Label film Cutting blade Cut amount...
  • Page 86 Chapter 3 Cutting Select [TOOL CHANGE], then press the [ENTER] key. • The cutter unit moves over the platen. Open the front cover. • The cutter unit can be moved manually. Move the cutter unit slowly to a position that allows easy access for installing the cutter holder.
  • Page 87 Chapter 3 Cutting Using the Included Cutter Holder (SPA-0001) Loosen the lock nut of the cutter holder and extract the adjusting knob. • Turn in the direction indicated by the arrow in the picture. Lock nut Adjusting knob Insert the cutter into the adjusting knob. •...

  • Page 88: Using A Pen

    Chapter 3 Cutting Fix the lock nut by turning in the direction indicated by the arrow in the picture. Using a Pen Installing a Refill Cartridge for a Ballpoint Pen in the Pen Holder The image quality can vary depending on the type of refill cartridge. Recommended: SXR-5 (Mitsubishi Pencil Co., Ltd.) Remove the cap from the pen holder.
  • Page 89 Chapter 3 Cutting Fix the cap by turning in the direction indicated by the arrow in the picture. Installing a Ballpoint Pen in the Pen Holder Use a ballpoint pen with a diameter of 8 to 9 mm. The ballpoint pen type may affect image quality. Recommended: K105-GA (Pentel Co., Ltd.) •...
  • Page 90 Chapter 3 Cutting Fix the pen nib by turning the knob screw in the direction indicated by the arrow in the picture. • Be careful to avoid overtightening the knob screw. Disregarding this precaution may damage or break the ballpoint pen. Knob screw Remove the cap.
  • Page 91 Chapter 3 Cutting Turn the knob screw and loosen the holder presser. Holder presser Knob screw Insert the pen holder or pen adapter into the tool holder. (1) Push the brim of the pen holder or pen adapter against the tool holder. •...

  • Page 92: Setting The Cutting Conditions

    Chapter 3 Cutting 3.3 Setting the Cutting Conditions You can set the cutting speed and pressure to match the type of media and tools in use. On the LOCAL mode screen, select [TOOL]. LOCAL width:1340mm TOOL TEST CUT Set the conditions. •...

  • Page 93: Test Cutting

    Chapter 3 Cutting 3.4 Test Cutting Execute test cutting to confirm that the tool conditions are set appropriately. Increase pressure as the cutter blade grows dull with wear. This is only a temporary measure. We recommend replacing the cutter blade to maintain cutting quality. On the LOCAL mode screen, select [TEST CUT].

  • Page 94: Cutting The Cutting Data

    Chapter 3 Cutting 3.5 Cutting the Cutting Data Check beforehand • Was the head gap adjusted? "Adjusting Print Head Height"(P. 53) • Were the pinch roller positions adjusted? "Adjust the pinch roller positions."(P. 54) • Is media loaded? "Loading the Media"(P. 59) •...

  • Page 95: Stopping Cutting (Data Clear)

    Chapter 3 Cutting Pausing Cutting Press [LOCAL] while cutting is in progress. • Cutting is paused. • If data is being sent from a PC, data transmission is paused at the PC. Press [REMOTE]. • Cutting resumes. • No other functions can be executed while printing is paused. Stopping Cutting (Data Clear) On the LOCAL mode screen, select [DATA CLEAR].
  • Page 96 Chapter 3 Cutting...
  • Page 97 Chapter 4 Try cutting data with registration marks This chapter Describes the conditions for creating registration marks and basic information. Process for Cutting Data with Register Marks.98 Setting Mark Detection Conditions ....1 05 Creating Register Marks........100 Detecting the Position of the Register Mark Register marks .........

  • Page 98: Chapter 4 Try Cutting Data With Registration Marks

    Chapter 4 Try cutting data with registration marks 4.1 Process for Cutting Data with Register Marks Create data with register marks. "Creating Register Marks"(P. 100) This machine can detect the following three types of register marks: Mark shape Type 1 Type 2 Zero margin register mark Print printing data with register marks.
  • Page 99 Chapter 4 Try cutting data with registration marks Cut the data. "Cutting the Cutting Data"(P. 94) Cutting the Media "Cutting the Media"(P. 79)

  • Page 100: Creating Register Marks

    Chapter 4 Try cutting data with registration marks 4.2 Creating Register Marks Printing image data with “register marks” can increase cutting accuracy and quality. There are some limitations to register marks. Read the following thoroughly before creating register marks. Trimming register marks cannot be used with this machine. Register marks The following three types of register marks can be used with this machine: Mark shape...

  • Page 101: Register Mark Size

    Chapter 4 Try cutting data with registration marks Register Mark Size The recommended register mark size (A) is within the range of A4 size (210 mm × 297 mm) to A3 size (297 mm × 420 mm). If the dimensions exceed A3, the machine may fail to detect register marks due to media feeding problems (e.g., media meandering).

  • Page 102: Reading Range Of Register Marks

    This machine can detect register marks in the range shown below. If the margin is small, the edge of the media may be incorrectly identified as a register mark. When copying data with MIMAKI RIP software (RasterLink), leave a space of at least 210 mm from the rear edge of the media.
  • Page 103 This machine can detect register marks in the range shown below. If the margin is small, the edge of the media may be incorrectly identified as a register mark. When copying data with MIMAKI RIP software (RasterLink), leave a space of at least 210 mm from the rear edge of the media.

  • Page 104: Plotting Areas Around Register Marks

    : Plotting area Combined Operations of Printing and Cutting When printing and cutting with MIMAKI RIP software (RasterLink, FineCut), please note the following: 1. The mark size and mark shape settings configured in the machine will be disregarded. The software settings will be applied.

  • Page 105: Setting Mark Detection Conditions

    Chapter 4 Try cutting data with registration marks 4.3 Setting Mark Detection Conditions Set the conditions of the printed register marks. On the LOCAL mode screen, select [MENU] > [Cutting], then press the [ENTER] key. • The Cutting menu is displayed. Select [TP DETECT, then press the [ENTER] key.

  • Page 106: Detecting The Position Of The Register Mark Origin

    Chapter 4 Try cutting data with registration marks 4.4 Detecting the Position of the Register Mark Origin On the LOCAL mode screen, select [TEST CUT]. LOCAL width:1340mm TOOL TEST CUT Select [Mark Detection], then press the [ENTER] key. • The machine switches to TP DETECT mode. •...

  • Page 107: Id Cut Process

    Chapter 4 Try cutting data with registration marks 4.5 ID Cut Process Create data with ID Cut. • For more information, refer to the ID Cut Guide. https://mimaki.com/download/software.html Print printing data with ID Cut. "Print Process"(P. 50) Prepare for cutting.
  • Page 108 Chapter 4 Try cutting data with registration marks...
  • Page 109 Chapter 5 SETUP This chapter This chapter describes the methods for replacing maintenance parts. Setup Menu ...........110 Machine setup menu ........1 18 Temporary Use ........112 Event Email Function Settings ....1 20 Changing the name of a setting type ..113 Nozzle check menu ........

  • Page 110: Chapter 5 Setup

    Chapter 5 SETUP 5.1 Setup Menu Print conditions (settings 1 to 4, Temporary) can be saved in advance for specific media. To set print conditions for a single use, select “Temporary”. The conditions set in “Temporary” will not be saved. l Menu List The user can select to prioritize the settings on the machine or the settings on the PC.
  • Page 111 This eliminates the risk of printing on top of the media holder. • The Mimaki RIP software (RasterLink) does not allow the user to specify margins. If the machine is set to “HOST”, the offset value will be “0 mm” for the left and right margins.

  • Page 112: Temporary Use

    Item Setting Details MAPS4 MAPS: Mimaki Advanced Pass System • This function disperses the boundaries between passes to make feed streaks between passes less visible. • Altering MAPS may alter the color. This function may be less effective with certain types of images.

  • Page 113: Changing The Name Of A Setting Type

    Chapter 5 SETUP Select the copy source (Settings 1 to 4). Press the [ENTER] key. • The copy confirmation screen is displayed. Press the [ENTER] key. • The settings are copied from the copy source to “Temporary”. l To copy “Temporary” settings to Settings 1 to 4 On the LOCAL mode screen, select [MENU] >...
  • Page 114 Chapter 5 SETUP Ink Type Ink set Resolution Number of passes Media 600 × 600 16 passes Tarpaulin...

  • Page 115: Maintenance Menu

    Chapter 5 SETUP 5.2 Maintenance menu This menu is used for maintenance actions. It also lets the user perform nozzle recovery if nozzle clogging persists even after cleaning and nozzle washing. l Menu List Item Details Setting Station This moves the carriage to allow station and print head maintenance. Carriage Out Station Cleans around the station, including the cap, wiper, and NCU.

  • Page 116: Registering Nozzle Recovery

    Chapter 5 SETUP Item Details Setting sleep by regularly applying negative pressure. This is executed every 15 minutes in the first one hour, and then at intervals of 30 minutes. (This is supported in firmware version 2.8 and later.) Refresh 0.5 to 4.0 h Sets the refresh interval.
  • Page 117 Chapter 5 SETUP Select [Nozzle Recovery] > [Print], then press the [ENTER] key. • Print a nozzle recovery pattern. • The Select Entry Nozzle screen appears once printing is complete. No.184 H1-A H1-B H1-C H1-D H2-A H2-B H2-C H2-D No.128 No.16 •...

  • Page 118: Machine Setup Menu

    Chapter 5 SETUP 5.3 Machine setup menu This is used to set various operations to ensure optimal machine performance. l Menu List Item Details Setting Auto Power-off None/10 min Sets the time until the power is automatically turned off. to 30 min to 600 min Take-up Unit Sets the take-up unit operation.
  • Page 119 Chapter 5 SETUP Item Details Setting Space Feed Mode Intermittent/ Alters the feed method for blank space included in the image data. Continuous • Intermittent: Uses intermittent feeding based on the timing of a fraction of the pass. • Continuous: Feeds forward by skipping blank parts. Network Sets the network address.

  • Page 120: Event Email Function Settings

    • Internet communication charges for email notifications, etc. are the responsibility of the customer. • Event emails may not be delivered if problems arise with the Internet setup or equipment. Mimaki rejects all liability for damages resulting from delivery failure or delay.
  • Page 121 Chapter 5 SETUP Select [Event Mail] > [Transmit Test], then press the [ENTER] key. Press the [ENTER] key. • The transmission results are displayed. • An error code will be displayed if the test email transmission is unsuccessful. Refer to the error code list and take appropriate action.
  • Page 122 Chapter 5 SETUP Error code Likely cause Corrective action 13*** The email recipient could be • Check the email address. found or the email address • This error may not always be detected even if the email is invalid. address is incorrect. •...

  • Page 123: Nozzle Check Menu

    Chapter 5 SETUP 5.4 Nozzle check menu This is used to check if the nozzles are clogged before printing. Sets whether to perform maintenance functions automatically if nozzle clogging is detected. [Printing Check] The nozzles are not checked. Nozzle check (nozzle clogging detection) [Judgment Condition] setting for nozzle clogging detection If less than the set value...

  • Page 124: Information Menu

    Chapter 5 SETUP 5.5 Information menu This is used to check machine information. l Menu List Item Details Usage Wiping Displays the wiping count. • To reset this count, press the [FUNC2] key while the count is displayed. Waste ink Displays the approximate level of waste ink in the waste ink tank as a percentage.

  • Page 125: Cutting Menu

    Chapter 5 SETUP 5.6 Cutting Menu You can set various settings related to cutting functions. l Menu List Item Details Setting TP DETECT Enter the conditions of the printed register marks. Detection ON/OFF Set this to ON to cut cutting data with register marks. Shape Type 1/Type Select three types of register mark shapes.
  • Page 126 Chapter 5 SETUP Item Details Setting Scan direction DEFAULT/0 Sets the scan direction for automatic register mark detection. cm to • When set to [DEFAULT], the detection operation is performed at machine width half the media width. Feed direction 10 to 50cm Sets the media feed direction for automatic register mark detection.

  • Page 127: Copying The Last Data

    Chapter 5 SETUP Item Details Setting ADJ-PRS -9 to 0 to 9 When cutting the corners, the pressure is automatically decreased OFFSET (by about 5 g) to prevent the media from lifting up. As a result, the cutting blade might not rotate smoothly and may leave uncut parts. Adjust the pressure for cutting the corners if they are left uncut.

  • Page 128: Preventing Uncut Media

    • The machine cuts the specified number of sheets of the divided cut data without separating the data. • When using the MIMAKI cutting software “FineCut”, deselect the “Sheet Feed Origin Renuwal” checkbox. (This is unselected by default.) Selecting the checkbox results in overlap cutting.

  • Page 129: Chapter 6 Maintenance

    Chapter 6 Maintenance This chapter To ensure years of precise performance, maintain this product periodically or based on frequency of use. Read the maintenance precautions thoroughly before maintaining this product. Maintenance Precautions ......130 Consumable Item Replacement ..... 1 44 Wiper Replacement ........1 44 Maintenance Items and Timing .....131 Cap Absorber Replacement.......

  • Page 130: Maintenance Precautions

    Chapter 6 Maintenance 6.1 Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. We also recommend cleaning this machine and replacing consumable items to prevent quality defects and accidents. •...

  • Page 131: Maintenance Items And Timing

    "Ink Maintenance"(P. 132) Items Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid storing this product in locations accessible to children.

  • Page 132: Maintenance Procedure

    Chapter 6 Maintenance 6.3 Maintenance Procedure Ink Maintenance If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the Ink bottle periodically to keep printing consistent. UV ink: once a month. White ink: once a day. l Shaking the Ink bottle Shake the Ink bottle to the left and right slowly at least 20 times.
  • Page 133 Chapter 6 Maintenance Remove the wiper. • Hold the lugs on both sides of the wiper bracket, then pull out the wiper. Clean the wiper and bracket. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.

  • Page 134: Cap Rubber Cleaning

    Chapter 6 Maintenance Cleaning the wiper cleaner. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Wiper cleaner • Only clean the front side of the wiper cleaner. There is no need to clean the backside. •...

  • Page 135: Ncu Cleaning

    Chapter 6 Maintenance Select [Station] > [Carriage Out] > [Station Maint.], then press the [ENTER] key. • The carriage moves over the platen. Open the front cover. Clean the cap rubber. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.

  • Page 136: Carriage Underside Cleaning

    Chapter 6 Maintenance Clean the NCU. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. • Insert the cleaning stick as far as the line shown in the illustration. Once cleaning is complete, close the cover, then press the [ENTER] key.

  • Page 137: Cleaning The Mist Filter

    Chapter 6 Maintenance Clean the UV-LED lamp. • Wipe off any ink adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Clean around the print head. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.

  • Page 138: Ink Discharge Channel Cleaning

    Chapter 6 Maintenance Select [Station] > [Carriage Out] > [Head Maint.], then press the [ENTER] key. • The carriage moves to the maintenance space. Open the maintenance covers. Remove the mist filter. • To remove the mist filter, pull the knob to the front while pushing the tabs in the direction indicated by the arrow.

  • Page 139: Media Sensor Cleaning

    Chapter 6 Maintenance On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. • The Maintenance menu is displayed. Select [Station] > [Disway Wash], then press the [ENTER] key. • The carriage moves over the platen. •...

  • Page 140: Media Holder Cleaning

    Chapter 6 Maintenance Open the maintenance covers. Clean the media sensor. Once cleaning is complete, close the cover, then press the [ENTER] key. Media Holder Cleaning • Turn off the main power and unplug the power cable before carrying out maintenance. •...

  • Page 141: Cover (Exterior) Cleaning

    Chapter 6 Maintenance Continuing to use the dirty platen will prevent proper feeding of the media. It will also cause dried ink and attached dust to rub against the head nozzle surface and lead to print defects (e.g., nozzle clogging, deflection).
  • Page 142 Chapter 6 Maintenance Open the front cover. Clean the wiper and bracket. • "Wiper Cleaning"(P. 132) Press the [ENTER] key once cleaning is complete. • “Cap Cleaning Completed (Next)[ENT]” appears on the display. Clean the cap rubber. • "Cap Rubber Cleaning"(P. 134) Once cleaning is complete, close the cover, then press the [ENTER] key.
  • Page 143 Chapter 6 Maintenance • Do not turn off the main power supply. Turning off the main power supply will disable the automatic maintenance function (including nozzle clogging prevention function and ink discharge channel cleaning function). This will increase the risk of print defects (e.g., nozzle clogging, deflection).

  • Page 144: Consumable Item Replacement

    To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • When disposing of this machine, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.

  • Page 145: Cap Absorber Replacement

    Chapter 6 Maintenance Mount a new wiper. Once replacement is complete, close the cover, then press the [ENTER] key. • The wiper usage count is reset. Cap Absorber Replacement This product maintains a usage count. The “Replace Cap Absorber” message appears on the display when a preset count is reached.

  • Page 146: Mist Filter Replacement

    Chapter 6 Maintenance Clean the carriage base. Cap base Mount a new cap absorber. • Push the tabs on the cap absorber into the slits at the rear of the C slider, and clip in the tabs at the front. Cap absorber Claw Push in to engage tabs.

  • Page 147: Led Glass Replacement

    Chapter 6 Maintenance Open the maintenance covers. Remove the mist filter box. • Push the tabs in the direction indicated by the arrow and slide to the side to remove. Claw Handle Claw Handle Replace the mist filter with a new one. Mount the mist filter box.

  • Page 148: Exhaust Fan Filter Replacement

    Chapter 6 Maintenance Open the maintenance covers. Remove the LED glass. • Unclip the tabs and slide to the side to remove. • Be careful not to apply too much force when unclipping the tabs. Disregarding this precaution may break the tabs. Claw Mount a new LED glass.

  • Page 149: Pinch Roller Replacement

    Chapter 6 Maintenance Remove the exhaust fan box. • Push the tabs at the front to remove the exhaust fan box. • Replace the very dirty exhaust fan box with new one. Mount a new exhaust fan filter in the exhaust fan box. •...

  • Page 150: Media Holder Replacement

    Chapter 6 Maintenance Remove the O-ring retaining the pinch rollers. Pinch roller O-ring • The pinch rollers are small. Be careful to avoid dropping them into the product interior. Remove the pinch roller spindle. Pinch roller spindle Mount new pinch rollers, and secure them using the O-ring. Close the front cover.
  • Page 151 Chapter 6 Maintenance Open the maintenance covers. Remove the side screw, and detach the media holder stopper. Remove the media holder. Remove the sliders from the media holder. • Be careful to avoid misplacing the sliders. Mount the sliders on to the new media holder. •...

  • Page 152: Media Cutter Replacement

    Chapter 6 Maintenance Mount the new media holder on to the platen. Secure the media holder stopper with the screw. Close the maintenance covers. Media Cutter Replacement Replace cutters when blades are chipped or blunt. • Avoid touching the cutter blade. Failure to do so may result in injury. •...

  • Page 153: Waste Ink Tank Replacement

    Chapter 6 Maintenance Replace the media cutter. (1) Unscrew the cutter screw. Screw (2) Remove the cutter. (3) Mount a new cutter. (4) Tighten the screw to clamp the cutter. Once replacement is complete, close the cover, then press the [ENTER] key. •...
  • Page 154 Chapter 6 Maintenance When “Check Waste Ink Tank” message appears The “Check Waste Ink Tank” message appears on the display. Check the waste ink levels in the waste ink tank. • If you note any discrepancies from actual levels, proceed to the next step. •...
  • Page 155 Chapter 6 Maintenance Hold the handle on the waste ink tank and slide out. Attach the cap to the removed waste ink tank, and use tape to prevent leakage of waste ink. • When disposing of this machine, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.

  • Page 156: About The Media Cutter

    SPB-0084 For more information on other consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid touching the cutter blade. Failure to do so may result in injury. • Do not shake or swing the cutter holder. Doing so may cause the blade to come off.

  • Page 157: Pen Line Replacement

    PEN LINE RUBBER FOR 150-75 SPC-0778 For more information on other consumable items, refer to our website. https://mimaki.com/supply/inkjet.html Open the front cover. Use tweezers to peel off the end of the pen line. • Wipe off any adhesive remaining in the platen slot with alcohol.
  • Page 158 Chapter 6 Maintenance...

  • Page 159: Chapter 7 Dealing With Problems

    Chapter 7 Dealing with Problems This chapter This chapter explains procedures for troubleshooting and addressing messages on the display. Troubleshooting..........160 Cutting Related .......... 1 66 The power does not turn on..... 160 Problems indicated by messages....1 71 Printing is not possible......160 Warning messages ........

  • Page 160: Troubleshooting

    Are you using a LAN cable approved Check the LAN cable type. "Using a LAN Cable"(P. 36) by Mimaki? Is the status lamp on the operating An error has occurred. Check the message on the display. panel illuminated or flashing red? "Operating panel"(P.

  • Page 161: Image Defects Occur

    Attach the tape, taking care not to block the vacuum hole. For more information, refer to the description on transporting media on the platen. https://mimaki.com/download/inkjet.html Image defects occur. Symptom Corrective action White streaks, blurriness, and dark Remove any paper scraps or other debris adhering to areas over which the head passes (e.g., media holders).
  • Page 162 Chapter 7 Dealing with Problems On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. • The Maintenance menu is displayed. Select [Station] > [Nozzle Wash], then press the [ENTER] key. • The carriage moves over the platen. Open the front cover.
  • Page 163 Chapter 7 Dealing with Problems On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. • The Maintenance menu is displayed. Select [Air PG], then press the [ENTER] key. Select the checkbox corresponding to the head to be air-purged. (This does not apply to the UCJV150 Series.) •...
  • Page 164 Chapter 7 Dealing with Problems Remove the cap on the target port. • If you select Head 1 and Head 2 simultaneously, remove the cap on the port of the head displayed at the upper right of the display. • Turn the cap 30° counterclockwise and remove. •...
  • Page 165 Chapter 7 Dealing with Problems Connect the jig to the port. • Lift the lid on the front of the carriage and pull out the jig. • Connect the jig by pushing the tip into the port and rotating 30° clockwise. Press the [ENTER] key to start the air purge.

  • Page 166: The Ink Has Leaked

    Chapter 7 Dealing with Problems Close the front cover, then press the [ENTER] key. • Cleaning starts automatically. • If you select Head 1 and Head 2 simultaneously, follow the instructions on the display to perform the air purge. The ink has leaked. •...
  • Page 167 Corrective action "Investigating the Cause of Cutting Failures"(P. 169) The print and cut positions are Use the MIMAKI RIP software (RasterLink) to print a correction pattern. misaligned. Check the correction pattern and input correction values manually. "Adjusting to Correct Misalignment Between Printing and Cutting"(P.
  • Page 168 Chapter 7 Dealing with Problems Press [ENTER] to start the detection operation. • The machine automatically detects the lines in the X and Y directions (automatic detection operation: plus X direction > minus X direction > plus Y direction > minus Y direction). X direction Y direction •...
  • Page 169 Adjusting to Correct Misalignment Between Printing and Cutting In the procedure described below, MIMAKI RIP software (RasterLink) is used to print a correction pattern. When printing and cutting without register marks, correction is required for each resolution in the scan (Y) direction.
  • Page 170 Chapter 7 Dealing with Problems Click on [Print & cut origin adjust] on the [Cut edit] tab of RasterLink. • Click [OK] to print a correction pattern. • Select "Add register mark” to print with register marks. Enter the adjustment value. •...

  • Page 171: Problems Indicated By Messages

    Chapter 7 Dealing with Problems 7.2 Problems indicated by messages If a problem occurs, the buzzer will sound, and a message will appear on the display. You can also use local guidance when checking. "Displaying Machine Information (Local Guidance)"(P. 33) Take appropriate measures based on the message.
  • Page 172 Chapter 7 Dealing with Problems Message Cause Corrective action NCU SN Adjst error • Sensor sensitivity adjustment failed. NozzleCheckOFF Ink Error • An ink error occurred. • Check the ink error details. "Ink error"(P. 173) COVER OPEN • The cover is open. •...

  • Page 173: Ink Error

    Chapter 7 Dealing with Problems Message Cause Corrective action High machine temp. ** ﾟC • Ambient temperatures are • Adjust ambient temperatures to too high. temperatures within the specified range. Optimum print quality may not be Low machine temp. ** ﾟC •...

  • Page 174: Error Messages

    Chapter 7 Dealing with Problems Message Cause Corrective action Expiration:2MONTH • The ink is two months • Replace with new ink. Printing is not past its expiration date possible. "When Ink End is and cannot be used. Displayed"(P. 42) Error messages Error Message Cause...
  • Page 175 Chapter 7 Dealing with Problems Error Message Cause Corrective action number NEW HEAD CONNECT • A new print head connection was detected. Main PCB V_CORE • A problem was detected • Turn off the power on the machine with the main PCB power and turn it on after a while.
  • Page 176 Chapter 7 Dealing with Problems Error Message Cause Corrective action number Wiper Move Failure • Unable to detect the wiper Clean the wiper and around the wiper. "Wiper Cleaning"(P. 132) origin. Turn off the power on the machine and turn it on after a while. "Turning Off the Power"(P.
  • Page 177 Chapter 7 Dealing with Problems Error Message Cause Corrective action number Media Set Position R • The media was loaded Check the media loading position. "Loading the Media"(P. 59) outside the range of valid positions. Clean the media width sensor. "Media Sensor Cleaning"(P.
  • Page 178 Chapter 7 Dealing with Problems Error Message Cause Corrective action number Replace with new ink. "Replacing Ink"(P. 43) InkOverflow • The sub tank float sensor • Execute [Maintenance] > detected the limit. [Overflow]. Ink supply • A failure occurred while •...
  • Page 179 Chapter 7 Dealing with Problems Error Message Cause Corrective action number NCU Sens Adj Err H • Sensor sensitivity • Replace the NCU if the error does adjustment failed. not clear. Contact your local NCU Sens Adj Err L distributor, our sales office, or service center.

  • Page 180: System Halt

    Chapter 7 Dealing with Problems Error Message Cause Corrective action number SHEET SIZE • The sheet is too short in • Use a longer sheet. the feed direction. Check to confirm the register marks are TP DETECT • Unable to detect register placed properly.

  • Page 181: Chapter 8 Appendix

    Chapter 8 Appendix This chapter This chapter explains the specifications of this machine. Specifications ..........182 LICENSE Library ..........1 86 Specifications (Cutting) .........185...

  • Page 182: Specifications (Cutting)

    Chapter 8 Appendix 8.1 Specifications Item UCJV300 UCJV150 Print head Type Drop-on-demand piezoelectric print heads Specifications Two inline heads with 4 rows One head with 4 rows Resolution Y: 300 dpi, 600 dpi, 1,200 dpi X: 600 dpi, 900 dpi, 1,200 dpi Ink set 4-color C, M, Y, K (UISS functions on all)
  • Page 183 Chapter 8 Appendix Item UCJV300 UCJV150 Origin alignment LED pointer Ink supply Ink bottle Maintenance liquid feed Waste ink tank Bottle type (2,000 ml) Take-up unit Selectable inside/outside winding Media heater NCU (Nozzle clogging detection) Provided UV unit Air-cooled LED UV emitters ×2 Image buffer SD-RAM: 2 GB Interface...
  • Page 184 Chapter 8 Appendix Item UCJV300 UCJV150 188 kg 177 kg 161 kg 144 kg 183 kg Weight (- kg) (- kg) (- kg) (- kg) (- kg) *1. Setup menu margins set to the minimum (5 mm) on either side *2.
  • Page 185 Chapter 8 Appendix 8.2 Specifications (Cutting) Item Details 30 cm/s (42 cm/s at 45°) Maximum speed Maximum acceleration 0.5 G Cut pressure 10 to 450 g Cutter response count 10 times/second Usable tools Eccentric cutter, ballpoint pen (commercially sold) Usable media Label paper (paper base), PVC sheet (not more than 0.25 mm thick, including lamination), fluorescent sheet...

  • Page 186: License Library

    Chapter 8 Appendix 8.3 LICENSE Library Mimaki printer Firmware Copyright @2020 MIMAKI ENGINEERING CO.,LTD. All rights reserved. This product contain open source software listed in the tables below. Component License StarterWare for ARM® based TI Sitara Processors BSD-TI The following license terms and conditions shall apply to the open source software listed in the table above: BSD-TI Copyright (C) 2010 Texas Instruments Incorporated - http://www.ti.com/...
  • Page 187 Index Index AC inlet ................................ 25 ADJ-PRS OFFSET .......................... 127, 169 Air purge ............................... 116 Auto Cleaning ............................... 111 Auto Maint.............................. 115 AUTO MEDIA CUT............................ 127 Auto Nozzle Recovery .......................... 123 Auto Power-off.............................. 118 Cancel ................................ 30 Cap ............................... 131, 134 Cap absorber.............................. 145 Capping station ............................ 24, 26 Carriage............................ 24, 26, 131, 136 Carriage movement ............................
  • Page 188 Index Drop.PosCorrect......................... 32, 51, 74, 110 DUMMY CUT.............................. 126 [END/POWER] key.......................... 29, 30, 35 [ENTER] key.............................. 30 Error................................ 30 Error History .............................. 124 Event Mail............................. 119, 120 Exhaust fan box............................ 131, 149 Exhaust fan filter........................... 131, 148 Feed Comp.......................... 32, 51, 72, 110 Feed Speed .............................. 111 Feeding unit.............................. 25 FILL UP INK .............................. 116 FineCut ................................. 104 [FUNCTION] key ............................ 30, 32 Grid rollers ............................ 24, 27, 54...
  • Page 189 Index Ink status indicator lamp.......................... 27 Ink status lamp ............................... 24 Ink supply unit ............................ 24, 27, 48 Ink wipe filter ............................ 24, 25 Inlet................................. 34 Installation guide ............................ 39, 40 Installation Space ............................ 17 Interval Wiping.............................. 111 Ionizer................................ 112 [JOG] key ............................... 30 Judgment Condition .............................  123 Key Buzzer .............................. 118 LAN cable ............................... 36 LAN port ................................. 25 LANGUAGE .............................. 118...
  • Page 190 Index Media Remain .............................. 118 Media sensor .......................... 25, 28, 131, 139 MENU mode .............................. 31 MIMAKI driver.............................. 38 Mist filter ............................ 131, 137, 146 Multilayer printing ............................ 68 NCU.............................. 26, 131, 135 Network ................................ 119 NOT-READY mode ............................ 31 Nozzle check menu ............................ 123 Nozzle Recovery ............................ 115 Nozzle Wash ............................ 161, 162...
  • Page 191 Index Reference guide ............................ 41, 76 Register mark ......................... 98, 100, 101, 104, 125 Remaining ink.............................. 31 REMOTE mode ............................ 30, 31 Replace Cap Absorber .......................... 145 Replace Waste ink tank.......................... 116 Replace Wasteinktank.......................... 154 Replace Wiper .............................. 144 Replace Wiper .............................. 115 Roll holder .............................. 60 Roll media .............................. 60 Safety interlocks ............................. 19 SAMPLE CUT.......................... 127, 166, 169...
  • Page 192 Index UNIT / LENGTH............................ 118 UNIT / TEMP .............................. 118 UP SPEED .............................. 126 Usage ................................ 124 USB interface cable............................ 36 USB port ................................. 25 Use Time .............................. 124 UV AdjVal .............................. 111 UV Lamp .............................. 124 UV mode .............................. 111 UV-LED lamp ............................ 131, 137 Vacuum fan ............................ 25, 111, 127 Version ................................. 124 View Feed .............................. 118 Warning Labels .............................. 20...
  • Page 193 Operation manual April, 2021 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203176-27-09042021...
  • Page 194 © MIMAKI ENGINEERING CO., LTD.2017 FW : 3.0...

This manual is also suitable for:

Ucjv150 seriesUcjv300-160Ucjv300-130Ucjv300-107Ucjv300-75Ucjv150-160
