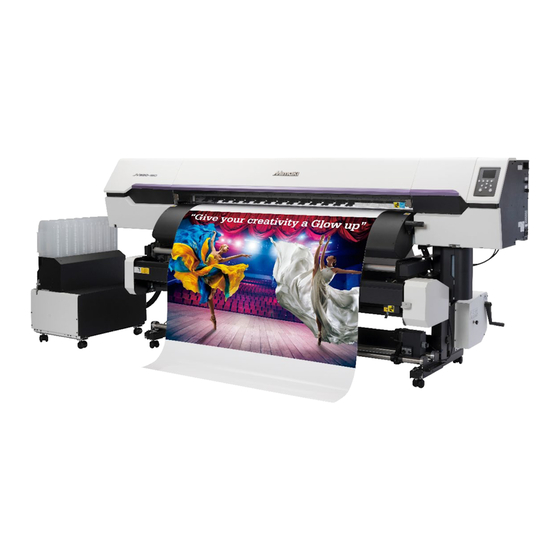

MIMAKI JV330 Series Requests For Care And Maintenance

Hide thumbs Also See for JV330 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
You can also download the latest manual from official website.
MIMAKI ENGINEERING CO., LTD.
https://mimaki.com/
D203601-15
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JV330 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI JV330 Series

Summary of Contents for MIMAKI JV330 Series

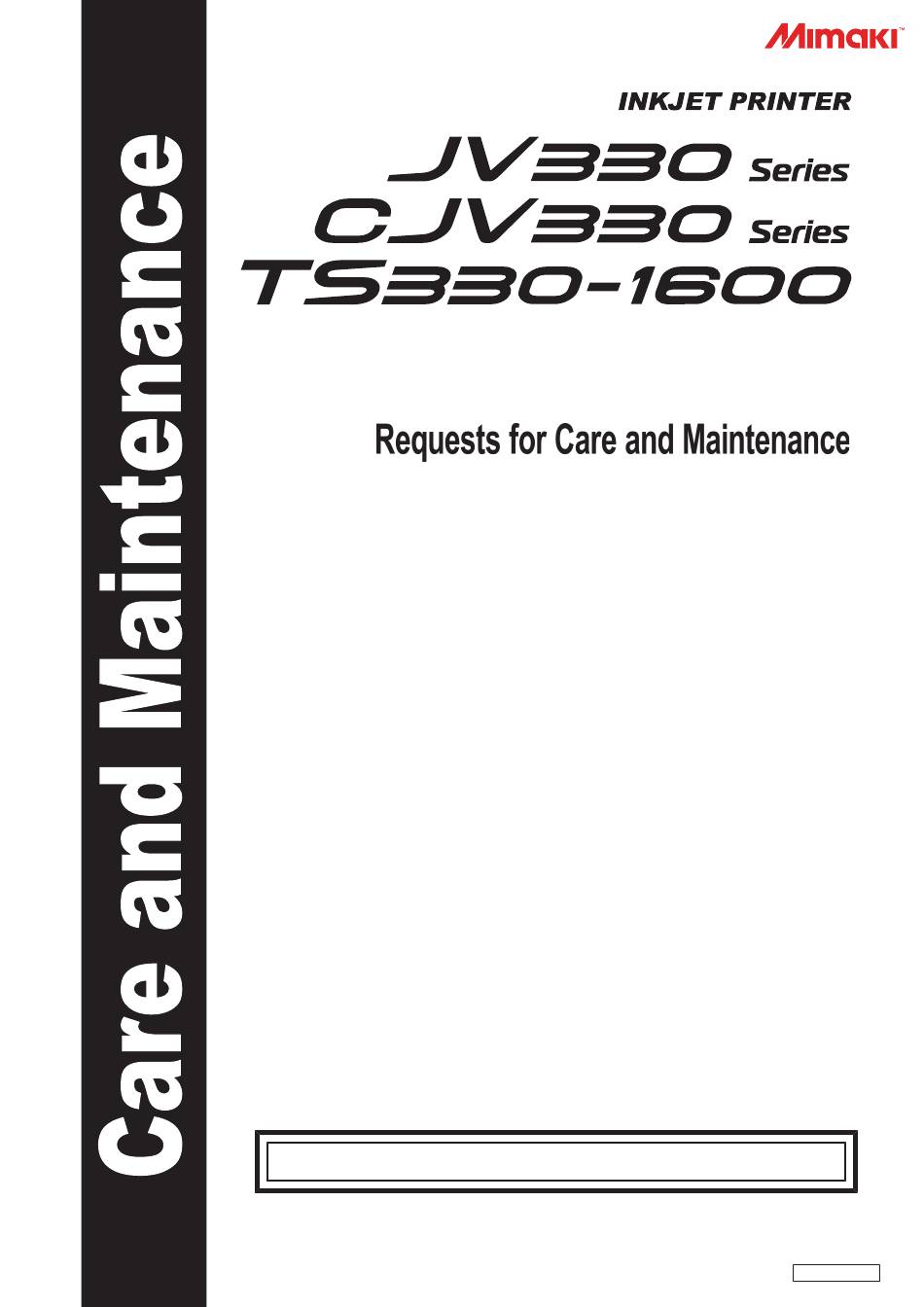

  • Page 1 You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203601-15 Original instructions...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction .................. 3 To Ensure Safe Use ...............  4 Symbols .................... 4 Maintenance 1. Maintenance Precautions ............ 6 2. Maintenance Methods .............. 7 Maintenance Items and Timing.............  7 Ink Maintenance ...................  8 Cap Rubber Cleaning ................ 8 Carriage Underside Cleaning ...............

  • Page 3: Introduction

    MATERIALS CREATED WHILE USING THIS MACHINE. • USING THIS MACHINE IN CONJUNCTION WITH DEVICES OTHER THAN THOSE RECOMMENDED BY MIMAKI ENGINEERING MAY RESULT IN FIRE OR ACCIDENTS. SUCH INCIDENTS ARE NOT COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR DAMAGE, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS.

  • Page 4: To Ensure Safe Use

    To Ensure Safe Use Symbols In this manual, the symbols indicate and explain precautions. Make sure you fully understand the meaning of each symbol and use the machine safely and correctly. Explanation Warning Indicates a potential hazard that may result in death or serious injury if handled improperly or if instructions are disregarded.

  • Page 5: Maintenance

    To Ensure Safe Use Maintenance To ensure years of precise performance, maintain the machine periodically based on frequency of use. Read the maintenance precautions thoroughly before maintaining this product.

  • Page 6: Maintenance Precautions

    1. Maintenance Precautions 1. Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. Carry out maintenance periodically and replace consumable items to prevent quality defects and accidents. • Clean periodically. Debris and dust will accumulate on electrical components when the machine is used for extended periods.

  • Page 7: Maintenance Methods

    Long Time"(P. 19) Items Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website (https://mimaki.com/supply/inkjet.html). • Avoid storing this product in locations accessible to children.

  • Page 8: Ink Maintenance

    2. Maintenance Methods Ink Maintenance If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the ink periodically to keep printing consistent. l JV/CJV/TS Once every three days. • Shake taking care that the ink eco-cases do not become detached from the ink supply unit.

  • Page 9: Carriage Underside Cleaning

    2. Maintenance Methods Clean the cap rubber. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. • Clean the areas indicated in red (the entire interior and exterior of the cap rubber and the tabs) in the diagram.

  • Page 10: Cloth Wiper Area Cleaning

    2. Maintenance Methods Open the maintenance cover on the left side. Clean around the print head. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Clean the print head sides using a cleaning stick.

  • Page 11: Ncu Cleaning

    2. Maintenance Methods Clean the wiper unit cover. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. • Be careful to avoid splashing maintenance liquid on the cloth wiper. Once cleaning is complete, close the cover, then press the [ENTER] key.

  • Page 12: Das (Automatic Correction Function) Sensor Cleaning

    2. Maintenance Methods • Insert the cleaning stick as far as the line shown in the illustration. Once cleaning is complete, close the cover, then press the [ENTER] key. DAS (Automatic Correction Function) Sensor Cleaning The DAS sensor is located on the carriage underside. If dust or debris accumulates on the sensor, DAS () may not function.

  • Page 13: Ink Discharge Channel Cleaning

    2. Maintenance Methods Ink Discharge Channel Cleaning Clean the ink discharge channel regularly to prevent clogging of the ink discharge channel below the cap. On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. • The Maintenance menu is displayed. Select [Station Maint.] >...

  • Page 14: Media Cutter Cleaning

    2. Maintenance Methods Select [Station Maint.] > [Carriage Out] > [Move To Maint. Space], then press the [ENTER] key. • The carriage moves to the maintenance space. Open the maintenance cover on the left side. Clean the media sensor. Once cleaning is complete, close the cover, then press the [ENTER] key. Media Cutter Cleaning Continuing to use a dirty media cutter may cause dust to collect on the head nozzle surface or the cutter blade to grow dull.

  • Page 15: Media Holder Cleaning

    2. Maintenance Methods Clean both sides of the media cutter. • Wipe off any adhesive paste, ink and dust adhering using a cleaning stick moistened with industrial alcohol. Wipe off the maintenance liquid. Make sure none remains. Check the position of the media cutter. •...

  • Page 16: Jam Sensor Detecting Plate Cleaning

    2. Maintenance Methods Jam Sensor Detecting Plate Cleaning Continuing to use the dirty carriage underside will rub dried ink and attached dust on to the media, resulting in contaminated prints. On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. •...

  • Page 17: Platen Cleaning

    2. Maintenance Methods Platen Cleaning Continuing to use the dirty platen will prevent proper feeding of the media. It will also cause dried ink and attached dust to rub against the head nozzle surface and lead to ejection failures (e.g., nozzle clogging or deflection).
  • Page 18 2. Maintenance Methods l Recommended cleaning guide • Check the filter for dirt every two weeks, and wash. • Replace the filter every three months. "Blowing Fan Filter Replacement"(P. 31) • Turn off the main power supply and unplug the power cable before replacing the pinch rollers. Remove the fan filter cover.

  • Page 19: When The Printer Is Left Unused For A Long Time

    2. Maintenance Methods When the Printer is Left Unused for a Long Time Clean as follows if the product is not used for one week or longer: Check beforehand Is [Near End] or [Ink End] displayed? • Maintenance liquid and ink is aspirated during the washing operation. Washing is not possible if an error occurs during this process.
  • Page 20 2. Maintenance Methods • If not, use a syringe to draw up some maintenance liquid and fill until it almost overflows from the cap. Close the maintenance covers. Set the exposure time, then press the [ENTER] key. • Cleaning is performed automatically once print nozzle washing has ended. •...

  • Page 21: Replacement Of Consumable Item

    3. Replacement of Consumable Item To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website (https://mimaki.com/supply/inkjet.html). • Avoid storing this product in locations accessible to children. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.

  • Page 22: Cloth Wiper Replacement

    3. Replacement of Consumable Item Cloth Wiper Replacement Replace cloth wipers with new ones when they have run out. • The cloth wipers to use depend on the model. Using inappropriate cloth wipers may damage the print head. Model JV/CJV Code/ Package type...
  • Page 23 3. Replacement of Consumable Item Open the cloth wiper cover. • Push up the two tabs at the front to remove the cap absorber. Remove the wiper together with the spindle. Remove the wiper from the spindle. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.
  • Page 24 3. Replacement of Consumable Item Clean the wipe roller. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Clean the pinch rollers. • Gently wipe off any dust adhering with a soft cloth. •...

  • Page 25: Cap Replacement

    3. Replacement of Consumable Item Mount a new cloth wiper. (1) Remove the cloth wiper from the bag. (2) Unroll the side with more cloth on it. [When removed from bag] [When mounted in the wiper unit] Unwind Wound approximately three times Do not unwind! (3) Mount a new cloth wiper.
  • Page 26 3. Replacement of Consumable Item • Be sure to replace the cap if you observe any scratches or other damage on the rim. • We recommend replacing the cap every six to twelve months. On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. •...

  • Page 27: Replacing The Absorber Around The Station

    3. Replacement of Consumable Item Mount a new cap. • Position with the slot at the front and push in until it clicks. Once replacement is complete, close the cover, then press the [ENTER] key. Replacing the Absorber Around the Station If the cap absorber or maintenance liquid absorber is very dirty or if ink drips on to the media, replace with a new cap absorber.
  • Page 28 3. Replacement of Consumable Item Clean the cap base. Mount a new cap absorber (with plate). • Push the tabs on the cap absorber into the slits at the rear of the C slider, and clip in the tabs at the front.
  • Page 29 3. Replacement of Consumable Item Once replacement is complete, close the cover, then press the [ENTER] key. With Metal Plate On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. • The Maintenance menu is displayed. Select [Station Maint.] >...

  • Page 30: Exhaust Fan Filter Replacement

    3. Replacement of Consumable Item Wipe away any maintenance liquid from around the slider block. Mount a new maintenance liquid absorber. • Push firmly on to the protrusion. Check to confirm that the absorber is not lifting or curved. Once replacement is complete, close the cover, then press the [ENTER] key. Exhaust Fan Filter Replacement Check the exhaust fan filter condition.

  • Page 31: Blowing Fan Filter Replacement

    3. Replacement of Consumable Item Blowing Fan Filter Replacement Replace the blowing fan filter if it is dirty. If sublimation transfer ink is used • Replace the filter every three months. • Turn off the main power supply and unplug the power cable before replacing the pinch rollers. Remove the fan filter cover.

  • Page 32: Media Holder Replacement

    3. Replacement of Consumable Item If sublimation transfer ink is used • Replace the pinch rollers every month if used for approximately 12 hours per day. • Replace the pinch rollers every two weeks if used 24 hours per day. •...
  • Page 33 3. Replacement of Consumable Item Open the maintenance cover on the left side. Remove the side screw, and detach the media holder stopper. Remove the media holder. Remove the sliders from the media holder. • Be careful to avoid misplacing the sliders.

  • Page 34: Media Cutter Replacement

    3. Replacement of Consumable Item Mount the sliders on to the new media holder. • Engage the holes in the sliders on to the lugs on the media holder. Mount the new media holder on to the platen. Secure the media holder stopper with the screw. Close the maintenance covers.
  • Page 35 3. Replacement of Consumable Item Select [Station Maint.] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key. • The carriage moves over the platen. Open the front cover. • The carriage can be moved by hand. Move the carriage slowly to a position allowing easy access while working.

  • Page 36: Y Cutter Replacement (Xy Slitter)

    3. Replacement of Consumable Item Y Cutter Replacement (XY Slitter) Replace cutters when blades are chipped or blunt. • TS: Feature not included. • Avoid touching the cutter blade. Failure to do so may result in injury. • Avoid storing this product in locations accessible to children. Unscrew the cutter screw.

  • Page 37: Cutter Replacement (Xy Slitter)

    3. Replacement of Consumable Item • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations. X Cutter Replacement (XY Slitter) Replace cutters when blades are chipped or blunt. •...
  • Page 38 3. Replacement of Consumable Item Insert a new X cutter with the blade up until it stops. • If the blade does not stop, the blade is not positioned correctly. Reposition and insert the blade again. Check to confirm that the protrusion amount of the blade is 4 mm. 4 mm 4 mm •...

  • Page 39: Media Edge Guide Film Replacement

    3. Replacement of Consumable Item Insert the X cutter groove into the L-shaped slide rail. Media Edge Guide Film Replacement Replace the media edge guide film if it is creased or worn. • JV/CJV: Feature not included. Turn the knob screw and open the media edge guide cover. Rotate the media edge guides to remove them.

  • Page 40: Ink Supply Unit Ink Absorber Replacement

    3. Replacement of Consumable Item Remove the double-sided tape on the media edge guide film and attach it to the media edge guide. • Align and attach the film hole (x2) to the screw hole (x2) of the media edge guide. Position the media edge guides on the roll guides.

  • Page 41: Waste Ink Tank Replacement

    3. Replacement of Consumable Item Push down the lever on the pedestal, and remove the Ink eco-case. Remove the ink absorber, and replace with a new one. Set an eco-case on the base. Waste Ink Tank Replacement Ink used during head cleaning and other processes is collected in the waste ink tank at the lower right of the machine.
  • Page 42 3. Replacement of Consumable Item • Pay close attention to ventilation and be sure to wear safety glasses, gloves, and a mask when handling ink, maintenance liquid, waste ink, or other solutions used with the machine. Leaking ink may adhere to the skin or get into the eyes or mouth. When "Check Waste Ink Tank"...
  • Page 43 3. Replacement of Consumable Item Open the waste ink tank cover and unlock and pull the stopper forward. Tank stopper • No tank stopper is included when the waste ink tank cover is made of plastic. Hold the handle on the waste ink tank and slide out. Attach the cap to the removed waste ink tank, and use tape to prevent leakage of waste ink.

  • Page 44: Media Cutter

    3. Replacement of Consumable Item Mount a new waste ink tank. Return the stopper to its original position and close the waste ink tank cover. Press the [ENTER] key. • The waste ink level will be reset. Media Cutter Replace cutters when blades are chipped or blunt. •...
  • Page 45 3. Replacement of Consumable Item • Pen line rubber Used for pen writing or cutting • Pen line sponge Used for half cut (cutting across a dotted line) • JV/TS: Feature not included. • Turn off the main power supply and unplug the power cable before replacing the pinch rollers. Open the front cover.
  • Page 47 Care and maintenance March, 2023 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203601-15-15032023...
